534536 Festo Directional Control Valves
Part#:534536
Alt. Part#:VSVA-B-M52-MH-A1-1R2L
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

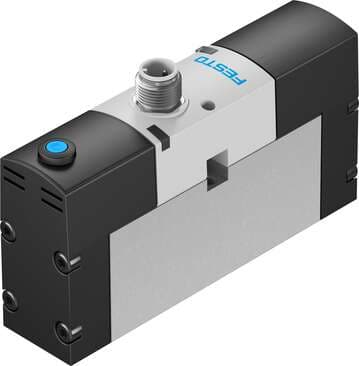

solenoid valve VSVA-B-M52-MH-A1-1R2L with central plug, round design M8x1. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 26 mm, Operating pressure: 3 - 8 bar, Design structure: Piston slide
Product Details
- Signal status display LED
- Actuation type Electrical
- Design Piston gate valve
- Exhaust air function With flow control option Via individual sub-base
- Flow direction Non-reversible
- Flow rate of pneumatic valve on individual sub-base 1100 l/min
- Duty cycle 100%
- Permissible voltage fluctuations +/- 10 %
- Temperature of medium -5 °C ... 50 °C
- Ambient temperature -5 °C ... 50 °C
- Operating voltage 24V DC
- Nominal width 9 mm
- Mounting position Any
- Conforms to standard ISO 15407-1
- Max. positive test pulse with 0 signal 500 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Electrical connection 4-pin Round design
- Lap Overlap
- Reset method Mechanical spring
- Sealing principle Soft
- Manual override Non-detenting
- C value 4.5 l/sbar
- On switching time 20 ms
- Nominal pick-up current per solenoid coil 110 mA to 20 ms
- Coil characteristics 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 270 g
- Housing material Die-cast aluminum
- Operating pressure 3 bar ... 8 bar
- Width 26 mm
- Degree of protection IP65 NEMA 4
- Width dimension 27 mm
- Type of control Pilot-controlled
- Symbol 00991003
- Flow rate of pneumatic valve 1400 l/min
- Max. negative test pulse on 1 signal 500 µs
- Nominal current with current reduction 30 mA after 20 ms
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Max. tightening torque for valve mounting 1.8 Nm ... 2.2 Nm
- Seals material FPM NBR
- Valve function 5/2, monostable
- Pneumatic working port Sub-base, size 26 mm as per ISO 15407-1
- Certification C-Tick c UL us - Recognized (OL)
- Type code VSVA
- Pilot air supply port Internal
- b-value 0.25
- Optimized flow rate of pneumatic valve pneumatically concatenated flow 1100 l/min
- Switching time off 52 ms
- CE marking (see declaration of conformity) As per EU EMC directive
- Relative air humidity 0 - 90 %
- Note on materials RoHS-compliant
- Type of mounting On sub-base With through-hole and screw
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
