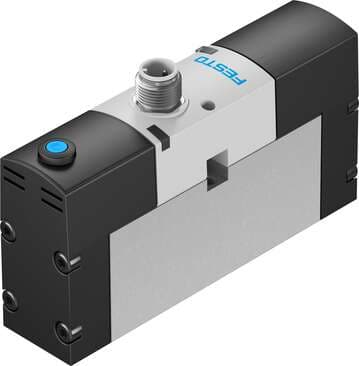

534526 Festo Directional Control Valves

Product Details

• Operating voltage
  24V DC
• Nominal width
  9 mm
• Sealing principle
  Soft
• Signal status display
  LED
• Operating pressure
  -0.9 bar ... 16 bar
• Reset method
  Mechanical spring
• Certification
  C-Tick c UL us - Recognized (OL)
• Symbol
  00991190
• Flow rate of pneumatic valve
  1400 l/min
• Switching time off
  52 ms
• Nominal pick-up current per solenoid coil
  110 mA to 20 ms
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pilot air port 12/14
  Sub-base, size 26 mm as per ISO 15407-1
• Pilot pressure MPa
  0.3 MPa ... 0.8 MPa
• Width
  26 mm
• Type code
  VSVA
• Exhaust air function
  With flow control option Via individual sub-base
• Conforms to standard
  ISO 15407-1
• Pilot air supply port
  External
Flow rate of pneumatic valve on individual sub-base
1100 l/min
Duty cycle
100%
Coil characteristics
24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
CE marking (see declaration of conformity)
As per EU EMC directive
Relative air humidity
0 - 90 %
Max. tightening torque for valve mounting
1.8 Nm ... 2.2 Nm
Pilot exhaust air port 82/84
Optionally: Ducted
Note on materials
RoHS-compliant
Lap
Overlap
Actuation type
Electrical
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-1
Degree of protection
IP65 NEMA 4
Type of control
Pilot-controlled
Flow direction
Any
Pilot pressure
3 bar ... 8 bar
Max. positive test pulse with 0 signal
500 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Electrical connection
4-pin Round design
Seals material
FPM NBR
Valve function
5/2, monostable
Design
Piston gate valve
Width dimension
27 mm
Mounting position
Any
Manual override
Non-detenting
b-value
0.25
C value
4.5 l/sbar
On switching time
20 ms
Nominal current with current reduction
30 mA after 20 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Product weight
270 g
Housing material
Die-cast aluminum
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1100 l/min
Max. negative test pulse on 1 signal
500 µs
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
On sub-base With through-hole and screw
