534554 Festo Directional Control Valves
Part#:534554
Alt. Part#:VSVA-B-T32H-AH-A1-1R5L
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

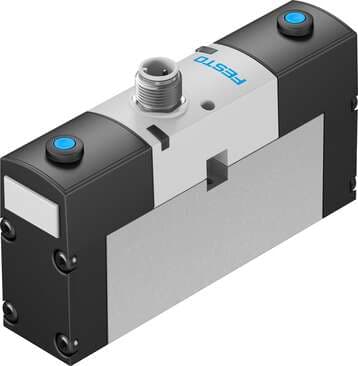

solenoid valve VSVA-B-T32H-AH-A1-1R5L with central plug, round design M12x1. Valve function: 2x3/2 open/closed, monostable, Type of actuation: electrical, Width: 26 mm, Operating pressure: 3 - 8 bar, Design structure: Piston slide
Product Details
- Operating pressure 3 bar ... 8 bar
- Design Piston gate valve
- Nominal width 9 mm
- Exhaust air function With flow control option Via individual sub-base
- Conforms to standard ISO 15407-1
- Flow direction Non-reversible
- Pneumatic working port Sub-base, size 26 mm as per ISO 15407-1
- Degree of protection IP65 NEMA 4
- Width dimension 27 mm
- Mounting position Any
- Manual override Non-detenting
- Flow rate of pneumatic valve 1250 l/min
- Switching time off 33 ms
- Nominal pick-up current per solenoid coil 110 mA to 20 ms
- Max. negative test pulse on 1 signal 500 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -5 °C ... 50 °C
- Seals material FPM NBR
- Valve function 2x3/2, open/closed, monostable
- Actuation type Electrical
- Operating voltage 24V DC
- Certification C-Tick c UL us - Recognized (OL)
- Sealing principle Soft
- Signal status display LED
- On switching time 20 ms
- Nominal current with current reduction 30 mA after 20 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Housing material Die-cast aluminum
- Width 26 mm
- Reset method Pneumatic spring
- Type code VSVA
- Pilot air supply port Internal
- Flow rate of pneumatic valve on individual sub-base 1000 l/min
- Duty cycle 100%
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Relative air humidity 0 - 90 %
- Note on materials RoHS-compliant
- Lap Overlap
- Type of control Pilot-controlled
- Symbol 00991806
- Max. positive test pulse with 0 signal 500 µs
- Coil characteristics 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -5 °C ... 50 °C
- Product weight 270 g
- Type of mounting On sub-base With through-hole and screw
- Optimized flow rate of pneumatic valve pneumatically concatenated flow 900 l/min
- Permissible voltage fluctuations +/- 10 %
- CE marking (see declaration of conformity) As per EU EMC directive
- Max. tightening torque for valve mounting 1.8 Nm ... 2.2 Nm
- Electrical connection 3-pin Round design
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
