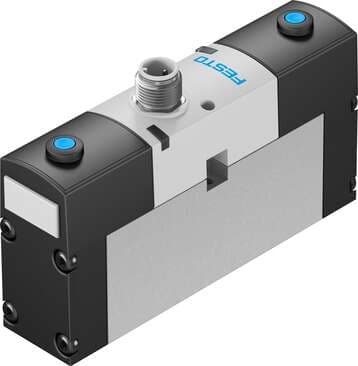

534527 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pneumatic working port
  Sub-base, size 26 mm as per ISO 15407-1
• Type code
  VSVA
• Conforms to standard
  ISO 15407-1
• Flow direction
  Any
• Flow rate of pneumatic valve
  1400 l/min
• Max. positive test pulse with 0 signal
  500 µs
• Permissible voltage fluctuations
  +/- 10 %
• Relative air humidity
  0 - 90 %
• Pilot exhaust air port 82/84
  Optionally: Ducted
• Actuation type
  Electrical
• Degree of protection
  IP65 NEMA 4
• Sealing principle
  Soft
• Symbol
  00992941
• Changeover time
  15 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Temperature of medium
  -5 °C ... 50 °C
• Max. tightening torque for valve mounting
  1.8 Nm ... 2.2 Nm
• Electrical connection
  4-pin Round design
• Seals material
  FPM NBR
Operating pressure
-0.9 bar ... 16 bar
Design
Piston gate valve
Width dimension
27 mm
Exhaust air function
With flow control option Via individual sub-base
Pilot air supply port
External
Pilot pressure
3 bar ... 8 bar
Duty cycle
100%
Coil characteristics
24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Type of mounting
On sub-base With through-hole and screw
Housing material
Die-cast aluminum
Pilot pressure MPa
0.3 MPa ... 0.8 MPa
Certification
C-Tick c UL us - Recognized (OL)
Mounting position
Any
Type of control
Pilot-controlled
Signal status display
LED
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1100 l/min
Nominal pick-up current per solenoid coil
110 mA to 20 ms
CE marking (see declaration of conformity)
As per EU EMC directive
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
270 g
Note on materials
RoHS-compliant
Valve function
5/2, bistable
Width
26 mm
Operating voltage
24V DC
Nominal width
9 mm
Manual override
Non-detenting
Flow rate of pneumatic valve on individual sub-base
1100 l/min
Max. negative test pulse on 1 signal
500 µs
Nominal current with current reduction
30 mA after 20 ms
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12/14
Sub-base, size 26 mm as per ISO 15407-1
