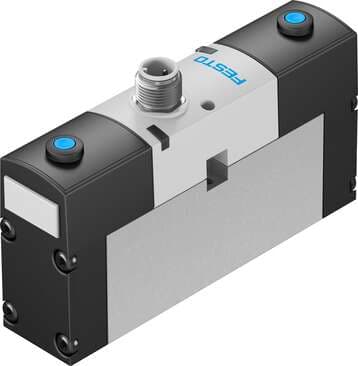

534552 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Operating voltage
  24V DC
• Width dimension
  27 mm
• Conforms to standard
  ISO 15407-1
• C value
  4 l/sbar
• Switching time off
  33 ms
• Max. negative test pulse on 1 signal
  500 µs
• Permissible voltage fluctuations
  +/- 10 %
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Relative air humidity
  0 - 90 %
• Electrical connection
  3-pin Round design
• Actuation type
  Electrical
• Degree of protection
  IP65 NEMA 4
• Reset method
  Pneumatic spring
• Exhaust air function
  With flow control option Via individual sub-base
• Manual override
  Non-detenting
• Symbol
  00991805
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Type of mounting
  On sub-base With through-hole and screw
• Note on materials
  RoHS-compliant
Operating pressure
3 bar ... 8 bar
Design
Piston gate valve
Type code
VSVA
Flow direction
Non-reversible
Flow rate of pneumatic valve
1250 l/min
On switching time
20 ms
Max. positive test pulse with 0 signal
500 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Seals material
FPM NBR
Valve function
2x3/2, closed, monostable
Pneumatic working port
Sub-base, size 26 mm as per ISO 15407-1
Nominal width
9 mm
Mounting position
Any
Pilot air supply port
Internal
b-value
0.25
Optimized flow rate of pneumatic valve pneumatically concatenated flow
900 l/min
Nominal pick-up current per solenoid coil
110 mA to 20 ms
Coil characteristics
24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Max. tightening torque for valve mounting
1.8 Nm ... 2.2 Nm
Width
26 mm
Certification
C-Tick c UL us - Recognized (OL)
Sealing principle
Soft
Type of control
Pilot-controlled
Signal status display
LED
Flow rate of pneumatic valve on individual sub-base
1000 l/min
Duty cycle
100%
Nominal current with current reduction
30 mA after 20 ms
CE marking (see declaration of conformity)
As per EU EMC directive
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Product weight
270 g
Housing material
Die-cast aluminum
