TM18VP6FF100IRQ5 Banner Proximity Sensors

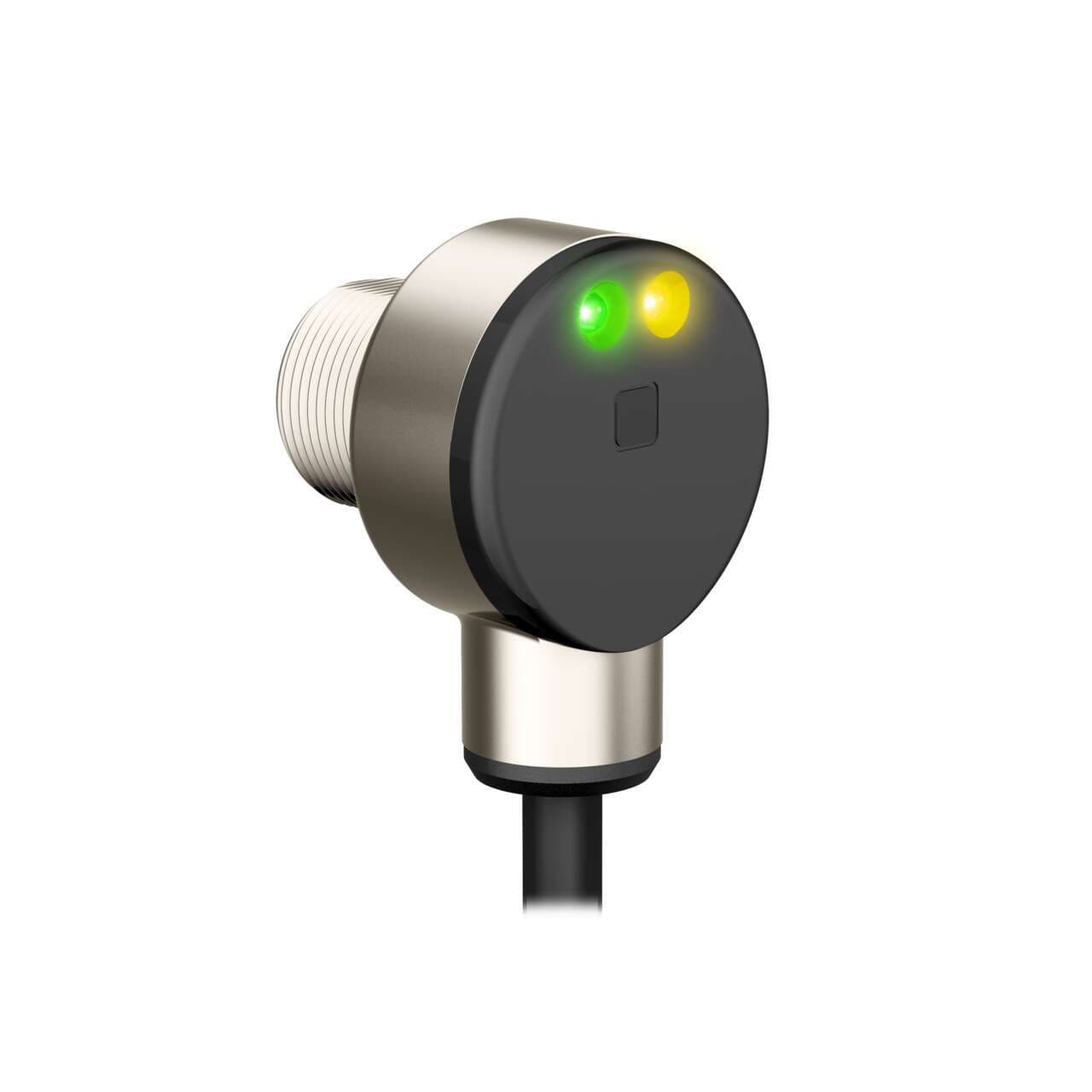

Banner TM18VP6FF100IRQ5 TM18: IR Fixed Field Background Suppression; Range: 100 mm; Input: 10-30 V dc; Outputs: PNP Complementary; 150 mm (6 in) M12 Pigtail QD
Banner

Part#:TM18VP6FF100IRQ5

Manufacturer:Banner

Alt. Part#:86496

Product Lifecycle:Active

Get a quick Quote!

TM18: IR Fixed Field Background Suppression; Range: 100 mm; Input: 10-30 V dc; Outputs: PNP Complementary; 150 mm (6 in) M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TM18VP6FF100IRQ5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    US
  • IO Link
    No
  • Feature: Encapsulated
    Yes
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    N/A
  • IP Rating
    IP67, IP69
  • Number of Pins
    4
  • Repeatability (µs)
    185
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    870
  • Min Op. Temp. (°C)
    -40
  • Operation
    Light/Dark Operate
  • Special Feature: Water Detection
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    3 ON/1.5 OFF
  • Max Op. Temp. (°C)
    70
  • Input/Output
    Discrete
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    100
  • Housing Style
    Barrel
  • Sensing Beam
    Infrared LED
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Mode (General)
    Proximity
  • Power
    DC
  • Sensing distance
    100mm
  • Thread size
    M18
  • Degree of protection
    IP67 NEMA 6
  • Main function
    Sensor (Photo-electric)
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Wavelength
    870 nm
  • Digital outputs
    1 x digital output (PNP transistor)
  • Order code / Manufacturer SKU
    86496
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Cylindrical threaded/barrel
  • Response time
    3ms / 0.003 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    EZ-BEAM series
  • Design
    background suppression system heavy-duty
  • Operating mode
    Light-ON Dark-ON
  • Compliant with standard(s)
    cULus CE
  • Sub-range name
    TM18 series
  • Light Color
    Infrared (IR)
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TM18VP6FF100IRQ5 Description

Banner Engineering TM18VP6FF100IRQ5 is a fixed-field photo-electric sensor from the TM18 series, designed with a background suppression system and housed in a nickel-plated die-cast zinc with an acrylic lens. This heavy-duty sensor features a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The TM18VP6FF100IRQ5 offers a degree of protection rated at IP67, IP69K, and NEMA 6, making it suitable for challenging environments. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides a single digital output (PNP transistor), has a sensing distance of 100mm, and uses infrared light with a wavelength of 870 nm for detection. It features a quick response time of 3ms / 0.003 s and supports both Light-ON and Dark-ON operating modes.

Related documents TM18VP6FF100IRQ5 Specs

TM18VP6FF100IRQ5 155853.pdf

Manufacturer warranty
