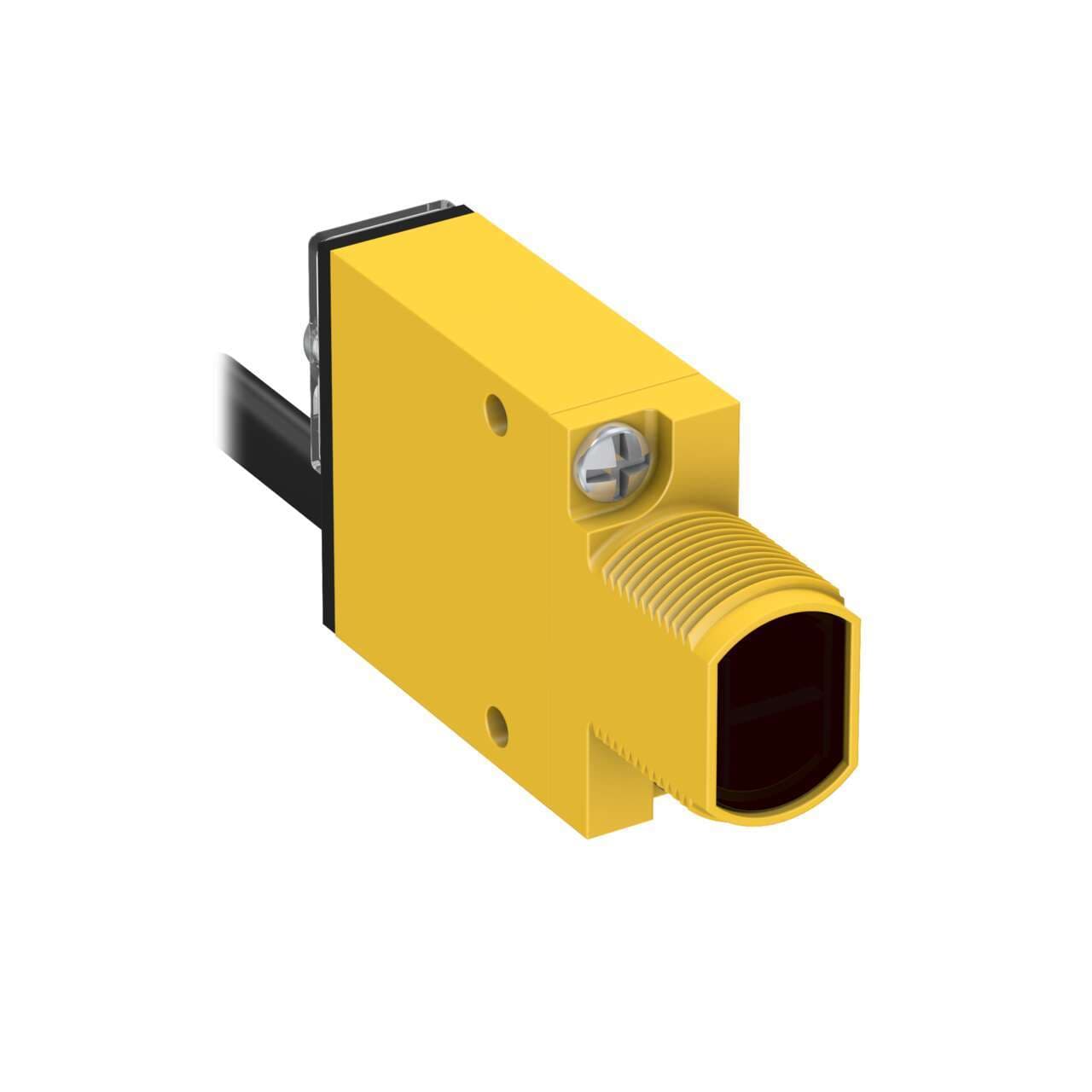

SM312DQDP-79312 Banner Proximity Sensors
Part#:SM312DQDP-79312
Alt. Part#:79312
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: 1 NPN; DB9 9-pin 8 ft (2.4 m) Pigtail PIN 3: WHT PIN 5: BLU PIN 6: BRN
Product Details
- Weight 226.796 g
- Country Of Origin US
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312DQDP-79312 on Powermatic Associates is $375.00. Order now.
About the product
Banner Engineering SM312DQDP-79312 is a photo-electric sensor from the SM312 series, designed with a diffuse mode potentiometer adjustment. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with an 8ft / 2.4m pigtail terminated with a 9-pin D-Sub connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The SM312DQDP-79312 offers an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It is protected to IP67 and meets NEMA 1, 2, 3, 3S, 4, 4X, 6, 12 standards for enclosure protection. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). It is capable of sensing distances up to 380mm and uses infrared (IR) light. The response time of the sensor is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
SM312DQDP-79312 Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
SM312DQDP-79312 Banner
$375.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$375.00
$375.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare SM312DQDP-79312 with other Proximity Sensors products
Weight
Country Of Origin
Selected product
SM312DQDP-79312
Banner
MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: 1 NPN; DB9 9-pin 8 ft (2.4 m) Pigtail ...
Weight226.796 g
Country Of OriginUS
SM31ELQDP
Banner
MINI-BEAM: Emitter; Range: 30 m; Input: 10-30 V dc; Output: Not Applicable; 4-pin M12 Pigtail QD
Weight7.711064 g
Country Of OriginUS
Q4XFNCOD310-Q8
Banner
Q4X Series: Clear Object; Range: 310 mm; Input: 10-30 V dc; Outputs: 1 NPN; 5-pin M12 Integral QD; F...
Weight136.0776 g
Country Of OriginUS
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of SM312DQDP-79312?
Purchase the SM312DQDP-79312 from Powermatic Associates at the price of $375.00. Order today.
Out if stock but available for backorder.
MINI-BEAM: Diffuse; Range: 380 mm; Input: 10-30 V dc; Output: 1 NPN; DB9 9-pin 8 ft (2.4 m) Pigtail PIN 3: WHT PIN 5: BLU PIN 6: BRN
