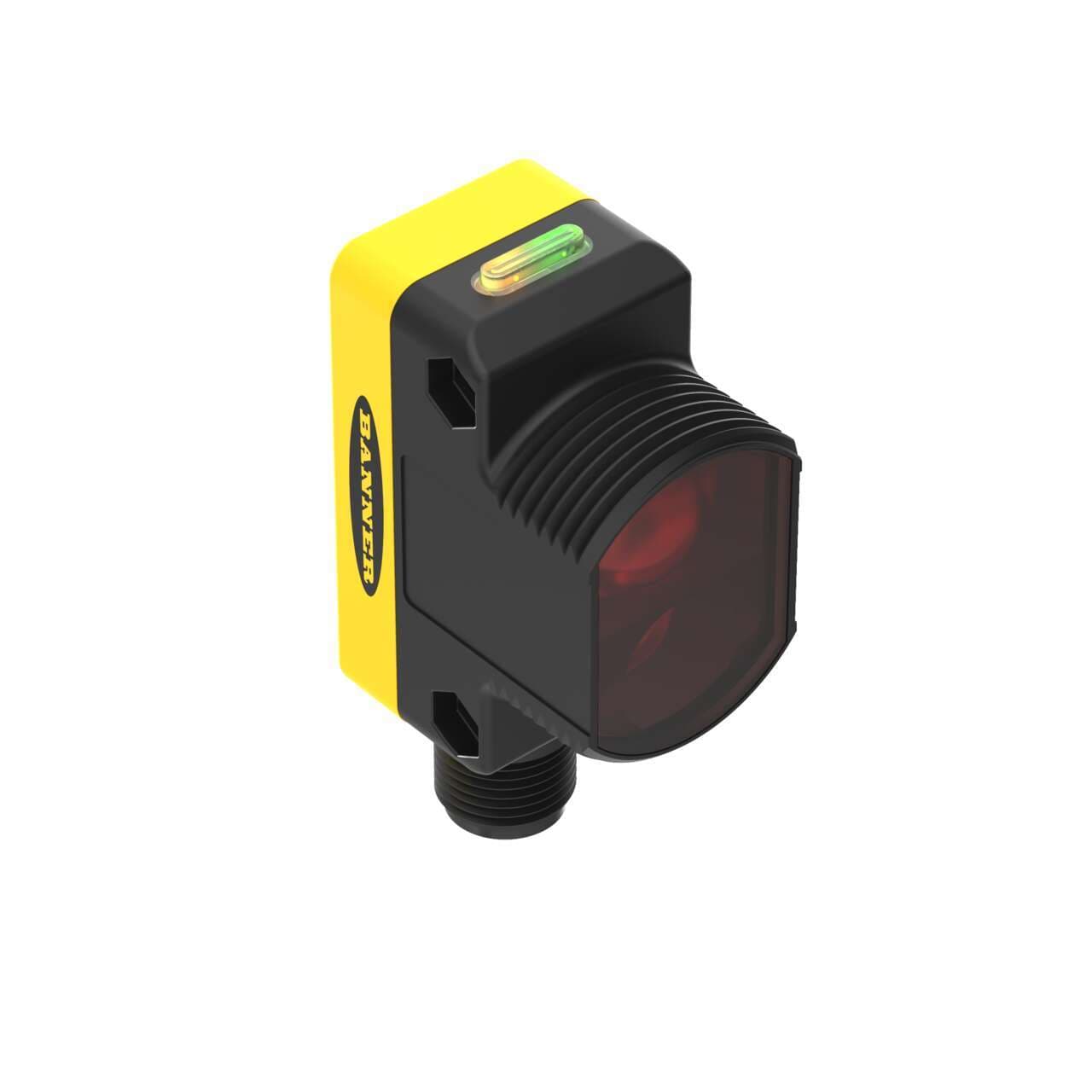

QS30ELVCQ Banner Proximity Sensors

QS30ELVCQ on Powermatic Associates
Banner
  • QS30ELVCQ
  • QS30ELVCQ

Part#:QS30ELVCQ

Alt. Part#:81102

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS30 Series Clear Object Sensor; Range: 100 mm-2 m; Input: 10-30 V dc; Rating: IP67; Output: Bipolar (NPN & PNP); 5-pin M12 QD

Product Details

  • Weight
    90.7184 g
  • Country Of Origin
    US
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • DeviceNet
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Clear Object Detection
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Audible
    No
  • Barrel Diameter (mm)
    30
  • Indicator
    Bargraph
  • Adjustments
    Teach Button
  • Max Op. Relative Humidity [%]
    95% @ 55°C
  • NEMA Rating
    NEMA PW12
  • Delay at Power-up (ms)
    250
  • Number of Pins
    5
  • Sensing Beam Wavelength
    660
  • IP Rating
    IP67
  • Repeatability (µs)
    150
  • Special Feature: Water Detection
    No
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Remote Teach
    Yes
  • Output response time (ms)
    0.5
  • Max Op. Temp. (°C)
    55
  • Operation
    Light/Dark Operate
  • Feature: Encapsulated
    No
  • Lens Material
    Acrylic
  • Sensing Mode (General)
    Retroreflective
  • Primary Housing Material
    Thermoplastic
  • Outputs
    Bipolar (NPN & PNP)
  • Min Op. Temp. (°C)
    -10
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    2000
  • Power
    DC
  • Sensing Mode (Detailed)
    Non-Polarized
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Sensing Beam
    Visible Red LED
  • Housing Style
    Rectangular w/M30 Mount
  • Sensing distance
    2m
  • Operating mode
    Light-ON Dark-ON
  • Main function
    Sensor (Photo-electric)
  • Sub-range name
    QS30EVLC series
  • Shape
    Rectangular
  • Mounting mode
    Threaded mount
  • Response time
    0.5ms / 0.0005 s
  • Product series / family name
    WORLD-BEAM series
  • Design
    retro-reflective mode
  • Thread size
    M30
  • Degree of protection
    IP67 NEMA PW12
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    660 nm
  • Light Color
    Visible red
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Compliant with standard(s)
    CE
  • Functions
    Photo-electric sensor green LED (power ON) yellow LED (output state) TEACH mode
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Material
    thermoplastic housing Acrylic lns.
  • Order code / Manufacturer SKU
    81102
  • Ambient air temperature for operation
    -10...+55 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30ELVCQ on Powermatic Associates is $257.00. Order now.

About the product

Banner Engineering QS30ELVCQ is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with TEACH functionality. It is equipped for mounting via an M30 threaded mount and operates within an ambient air temperature range of -10 to +55°C. This sensor is part of the QS30EVLC series and offers a degree of protection rated at IP67 NEMA PW12, making it suitable for challenging environments. It connects through a pre-equipped 5-pin Euro-style M12 connector and is powered by a supply voltage ranging from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The QS30ELVCQ has a rectangular shape with a thermoplastic housing and an acrylic lens, ensuring durability. It can detect objects within a sensing distance of 10cm to 2m and utilizes visible red light with a wavelength of 660 nm for detection. This sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 0.5ms / 0.0005 s.
