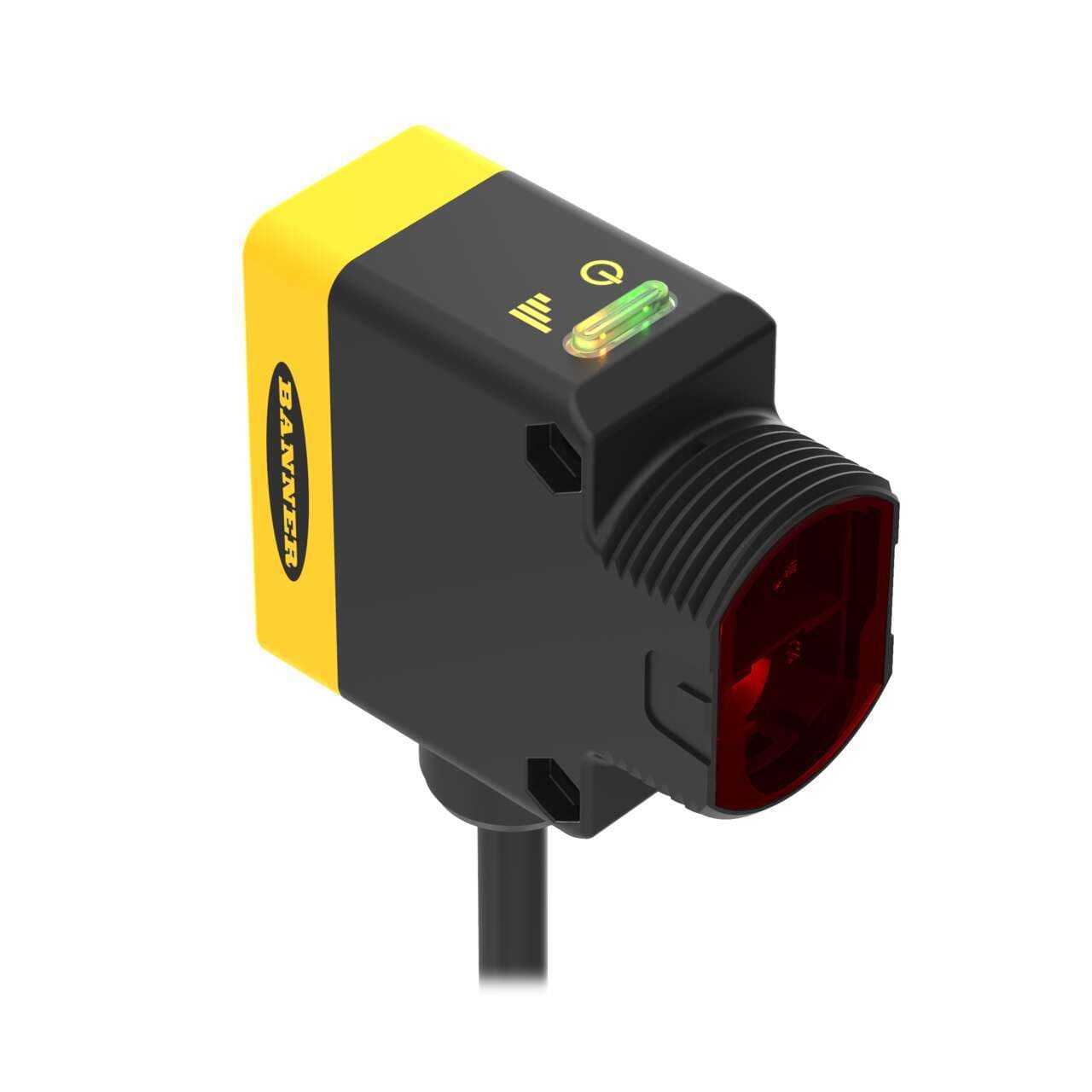

QS30VR3FF200QPMA Banner Proximity Sensors

QS30VR3FF200QPMA on Powermatic Associates
Banner

Part#:QS30VR3FF200QPMA

Alt. Part#:77385

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

QS30 VR3FF200QPMA 5-PIN MICRO PUR 6

Product Details

  • Weight
    113.398 g
  • Country Of Origin
    US
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    30
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Connection
    Pigtail PUR QD
  • Outputs
    SPDT e/m Relay
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular w/M30 Mount
  • Input/Output
    E/M Relay
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    200
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Sensing Beam
    Visible Red LED
  • IP Rating
    IP67
  • Number of Pins
    5
  • Repeatability (µs)
    N/A
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    680
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    70
  • Special Feature: Remote Teach
    No
  • Min Op. Temp. (°C)
    -20
  • Output response time (ms)
    15
  • Special Feature: Intrinsically Safe
    No
  • Operation
    Light/Dark Operate
  • Quick Disconnect Type
    1/2 in. (Micro)
  • Power Supply/Supply Voltage
    12-250 V dc or 24-250 V ac
  • Power
    AC/DC Universal
  • Main function
    Sensor (Photo-electric)
  • Light Color
    Visible red
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (SPDT contact type)
  • Material
    thermoplastic housing Acrylic lns. PUR pigtail
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
  • Mounting mode
    Threaded mount
  • Order code / Manufacturer SKU
    77385
  • Product series / family name
    WORLD-BEAM series
  • Supply voltage (DC)
    12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
  • Connection type
    Pre-wired with 6" / 150mm PUR pigtail terminated with 5-pin 1/2" Micro connector
  • Degree of protection
    IP67 NEMA 6
  • Compliant with standard(s)
    cULus CE
  • Sub-range name
    QS30 Universal Voltage Series
  • Sensing distance
    200mm
  • Operating mode
    Light-ON Dark-ON
  • Primary brand
    Banner Engineering
  • Supply voltage (AC)
    24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Design
    background suppression system
  • Thread size
    M30
  • Response time
    15ms / 0.015 s
  • Ambient air temperature for operation
    -20...+70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30VR3FF200QPMA on Powermatic Associates is $185.00. Order now.


About the product

Banner Engineering QS30VR3FF200QPMA is a fixed-field photo-electric sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and incorporates a background suppression system to enhance detection accuracy. This sensor is equipped with a pre-wired 6" / 150mm PUR cable that terminates with a 5-pin 1/2" micro connector, facilitating easy and quick connections. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac / 220Vac / 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc / 48Vdc / 120Vdc nominal), making it adaptable to various power supplies. The QS30 universal voltage series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. Its thermoplastic housing, acrylic lens, and polyurethane (PUR) cable sheath are built to last. With a sensing distance of 200mm and visible red light for detection, it offers a practical solution for proximity sensing needs. The sensor operates in both Light-ON and Dark-ON modes and provides a single digital output (SPDT relay contact) with a swift response time of 15ms / 0.015 s.
