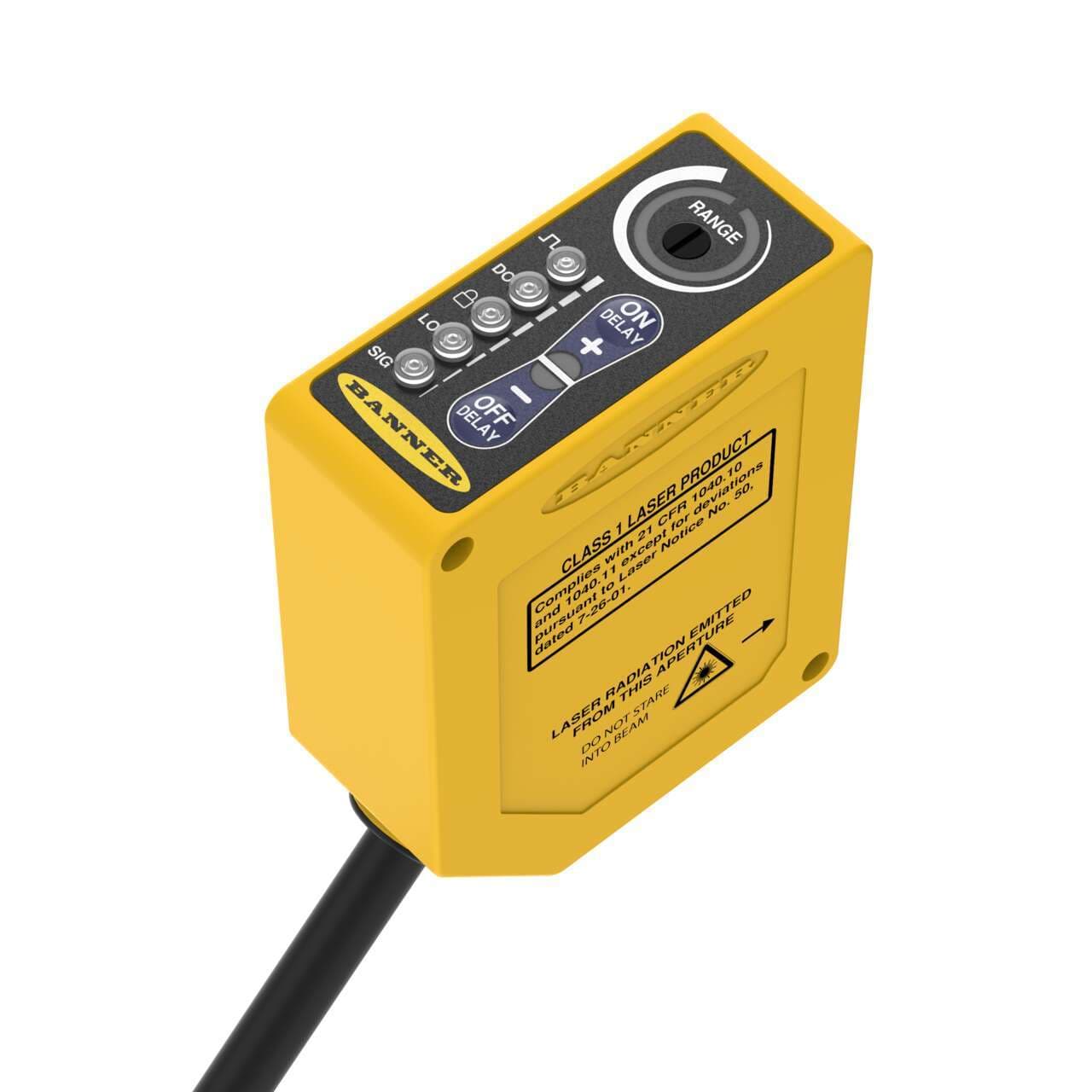

Q60BB6LAF1400 Banner Proximity Sensors

Q60BB6LAF1400 on Powermatic Associates
Banner
  • Q60BB6LAF1400
  • Q60BB6LAF1400

Part#:Q60BB6LAF1400

Alt. Part#:71633

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q60 Series: Adjustable-Field Laser (Class 1); Range: 200-1400 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Connector

Product Details

  • Weight
    208.65232 g
  • Country Of Origin
    US
  • Feature: Audible
    No
  • Adjustments
    Screw Adjustment
  • Special Feature: Remote Teach
    Yes
  • Quick Disconnect Type
    No QD
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Barrel Diameter (mm)
    N/A
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Special Feature: Water Detection
    No
  • Number of Pins
    5
  • Output response time (ms)
    2
  • Repeatability (µs)
    500
  • Special Feature: Intrinsically Safe
    No
  • Delay at Power-up (ms)
    1000
  • Max Op. Temp. (°C)
    50
  • Operation
    Light/Dark Operate
  • Min Op. Temp. (°C)
    -10
  • Input/Output
    Discrete
  • Connection
    Cable
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    Bipolar (NPN & PNP)
  • Max Sensing Distance (mm)
    1400
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red Laser
  • Laser Classification
    Class 1
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Power
    DC
  • Small Visible Spot
    Laser
  • Cable Length (m)
    2
  • Sensing distance
    20cm...1.4m
  • Light Color
    Visible class 1 red Laser
  • Order code / Manufacturer SKU
    71633
  • Ambient air temperature for operation
    -10...+50 °C
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Net Height (mm)
    75 mm
  • Sub-range name
    Q60LAF
  • Design
    background suppression system
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Compliant with standard(s)
    cURus CE
  • Primary brand
    Banner Engineering
  • Material
    thermoplastic housing Acrylic lns.
  • Net Depth (mm)
    60 mm
  • Product series / family name
    Q series
  • Functions
    Adjustable-field class 1 Laser photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Response time
    2ms / 0.002 s
  • Net Width (mm)
    25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60BB6LAF1400 on Powermatic Associates is $410.00. Order now.

About the product

Banner Engineering Q60BB6LAF1400 is an adjustable-field Class 1 laser photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -10 to +50 °C and features a background suppression system with screw adjustment for fine-tuning. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. It belongs to the Q60LAF series and offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The supply voltage requirement is 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, accommodating a variety of power systems. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, measuring 75 mm in height, 25 mm in width, and 60 mm in depth. The Q60BB6LAF1400 can detect objects within a sensing distance of 20cm to 1.4m and emits a visible class 1 red laser for alignment and detection purposes. It features a single digital output (PNP/NPN transistor) and boasts a quick response time of 2ms / 0.002 s, allowing for rapid signal processing. The operating modes include Light-ON and Dark-ON, providing versatility in application use.
