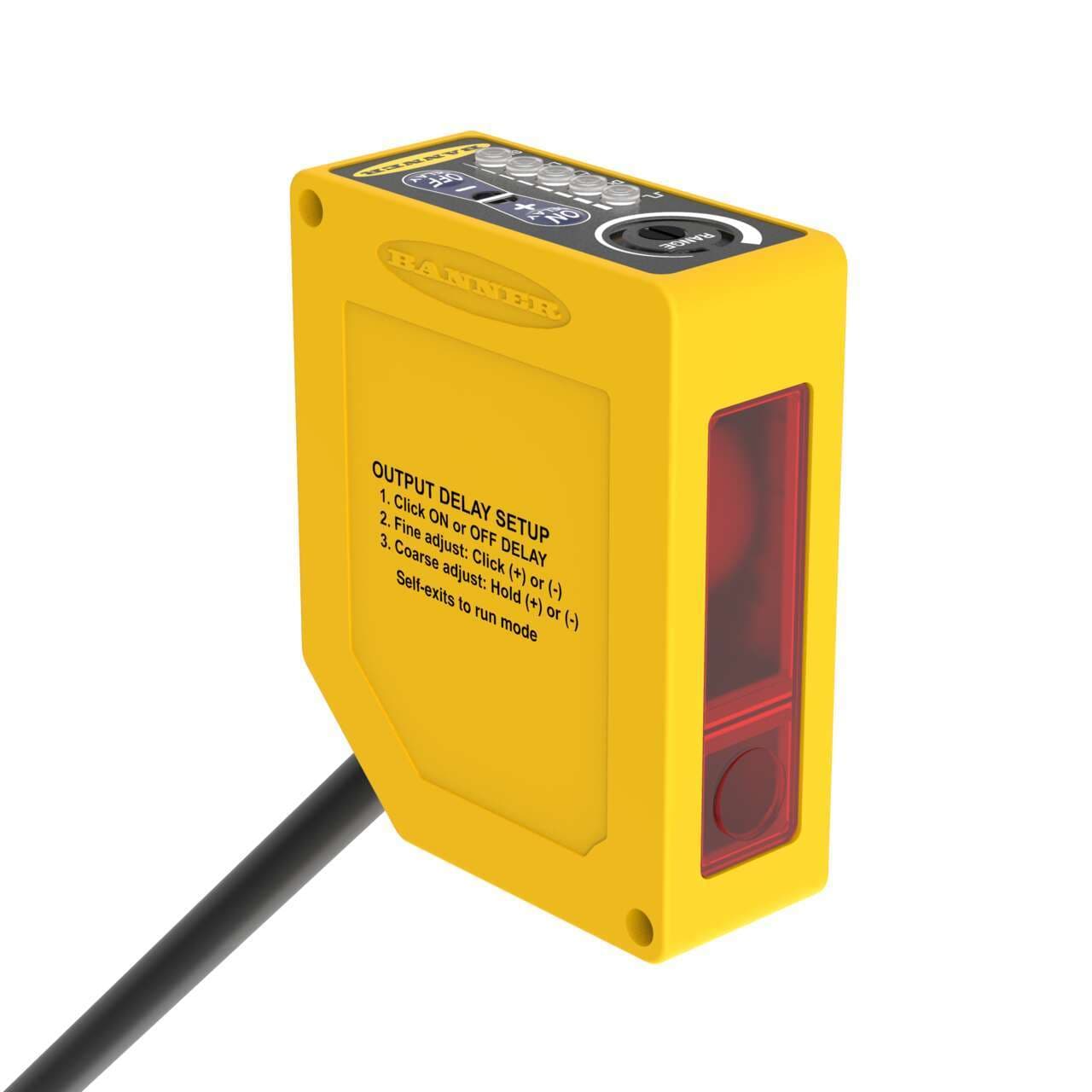

Q60BB6AF2000 W/30 Banner Proximity Sensors

Q60BB6AF2000 W/30 on Powermatic Associates
Banner

Part#:Q60BB6AF2000 W/30

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:69623

Product Lifecycle:Active

Get a quick Quote!

Q60 Series: Adjustable-Field Infrared; Range: 200-2000 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q60BB6AF2000 W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    680.388 g
  • Country Of Origin
    US
  • Feature: Audible
    No
  • Connection
    Cable
  • Quick Disconnect Type
    No QD
  • Primary Housing Material
    Thermoplastic
  • Power
    DC
  • Sensing Mode (General)
    Proximity
  • Max Sensing Distance (mm)
    2000
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Cable Length (m)
    9
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • DeviceNet
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    N/A
  • Adjustments
    Screw Adjustment
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Repeatability (µs)
    500
  • Number of Pins
    5
  • Delay at Power-up (ms)
    150
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    Yes
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    2
  • Max Op. Temp. (°C)
    55
  • Min Op. Temp. (°C)
    -20
  • Operation
    Light/Dark Operate
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    Bipolar (NPN & PNP)
  • Input/Output
    Discrete
  • Housing Style
    Rectangular
  • Sensing Beam
    Infrared LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q60BB6AF2000 W/30 Description

Banner Engineering Q60BB6AF2000 W/30 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55°C and features a pre-wired 30ft / 9m cable terminated with bare end flying leads for easy installation. This sensor falls within the Q60AF series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a thermoplastic casing with an acrylic lens. The rectangular-shaped sensor measures 75 mm in height, 25 mm in width, and 60 mm in depth. It is capable of sensing distances from 20cm to 2m and utilizes infrared (IR) light. The operating modes include Light-ON and Dark-ON, and it features 1 x digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s.

Related documents Q60BB6AF2000 W/30 Specs

Q60BB6AF2000 W/30 67003.pdf
