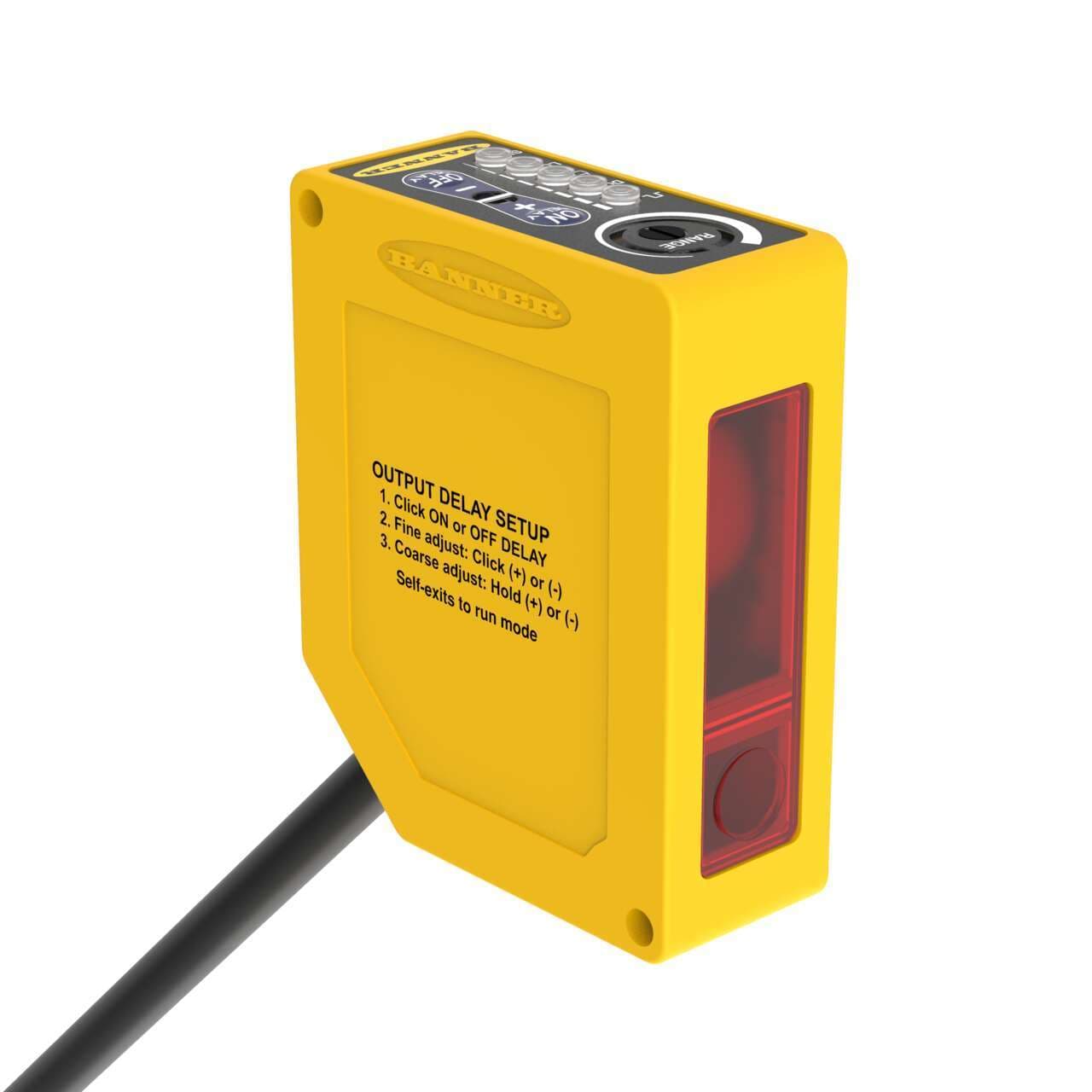

Q60BB6AFV1000
Banner
Product Lifecycle: Active
Banner Engineering Q60BB6AFV1000 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55 °C and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor is part of the Q60AF series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a thermoplastic casing with an acrylic lens. The rectangular-shaped sensor measures 75 mm in height, 25 mm in width, and 60 mm in depth. It is capable of sensing distances from 20cm to 1m and emits a visible red light for detection. The Q60BB6AFV1000 operates in both Light-ON and Dark-ON modes and includes 1 x digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s.
Banner Engineering Q60BB6AFV1000 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55 °C and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor is part of the Q60AF series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a thermoplastic casing with an acrylic lens. The rectangular-shaped sensor measures 75 mm in height, 25 mm in width, and 60 mm in depth. It is capable of sensing distances from 20cm to 1m and emits a visible red light for detection. The Q60BB6AFV1000 operates in both Light-ON and Dark-ON modes and includes 1 x digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s.
Product details
- IO LinkNo
- Feature: EncapsulatedNo
- Feature: Chemical ResistantNo
- Feature: Hazardous AreaNo
- DeviceNetNo
- Feature: Timing (Hold/Delay)Yes
- AdjustmentsScrew Adjustment
- IndicatorLEDs
- Feature: AudibleNo
- NEMA RatingNEMA 6
- Max Op. Relative Humidity [%]90% @ 50°C
- Delay at Power-up (ms)150
- Repeatability (µs)500
- Opposed Mode Emitter/ReceiverN/A
- Barrel Diameter (mm)N/A
- Lens MaterialAcrylic
- IP RatingIP67
- Special Feature: Water DetectionNo
- Number of Pins5
- Sensing Beam Wavelength640
- Special Feature: Remote TeachYes
- Output response time (ms)2
- Special Feature: Intrinsically SafeNo
- Min Op. Temp. (°C)-20
- ConnectionCable
- OperationLight/Dark Operate
- Max Op. Temp. (°C)55
- Power Supply/Supply Voltage10-30 V dc
- Quick Disconnect TypeNo QD
- Sensing BeamVisible Red LED
- OutputsBipolar (NPN & PNP)
- Cable Length (m)2
- Max Sensing Distance (mm)1000
- Input/OutputDiscrete
- Sensing Mode (General)Proximity
- Primary Housing MaterialThermoplastic
- Housing StyleRectangular
- PowerDC
- Sensing Mode (Detailed)Background Suppression (Adjustable)
- Primary brandBanner Engineering
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Response time2ms / 0.002 s
- Main functionSensor (Photo-electric)
- Order code / Manufacturer SKU70092
- FunctionsAdjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
- Operating modeLight-ON Dark-ON
- Ambient air temperature for operation-20...+55 °C
- Net Height (mm)75 mm
- Sub-range nameQ60AF
- Sensing distance20cm...1m
- Degree of protectionIP67 NEMA 6
- Product series / family nameQ series
- Designbackground suppression system
- ShapeRectangular
- Digital outputs1 x digital output (PNP/NPN transistor)
- Compliant with standard(s)cURus CE
- Net Width (mm)25 mm
- Light ColorVisible red
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Materialthermoplastic housing Acrylic lns.
- Net Depth (mm)60 mm
