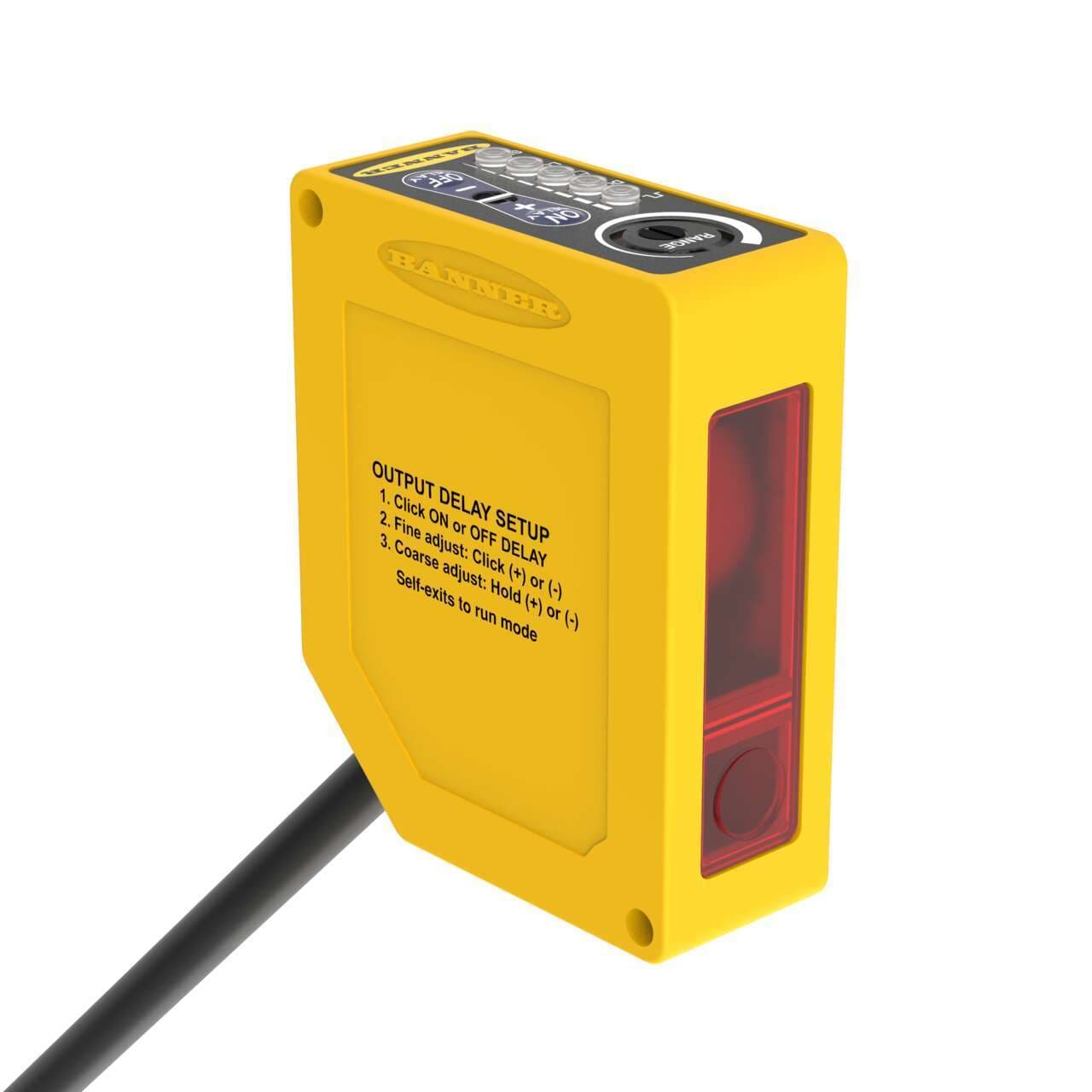

Q60BB6AF2000 Banner Proximity Sensors

Name: Q60BB6AF2000
Brand: Banner
Price: 229 USD
Availability: BackOrder

Part#:Q60BB6AF2000

Alt. Part#:63000

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q60 Series: Adjustable-Field Infrared; Range: 200-2000 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Product Details

Weight
208.65232 g
Country Of Origin
US
DeviceNet
No
IO Link
No
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Encapsulated
No
Indicator
LEDs
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
Yes
Opposed Mode Emitter/Receiver
N/A
Barrel Diameter (mm)
N/A
Adjustments
Screw Adjustment
Lens Material
Acrylic
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6
IP Rating
IP67
Number of Pins
5
Special Feature: Water Detection
No
Special Feature: Remote Teach
Yes

Delay at Power-up (ms)

150

Repeatability (µs)

500

Quick Disconnect Type

No QD

Output response time (ms)

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Operation

Light/Dark Operate

Connection

Cable

Min Op. Temp. (°C)

-20

Outputs

Bipolar (NPN & PNP)

Power Supply/Supply Voltage

10-30 V dc

Input/Output

Discrete

Max Sensing Distance (mm)

2000

Primary Housing Material

Thermoplastic

Sensing Mode (Detailed)

Background Suppression (Adjustable)

Power

Housing Style

Rectangular

Sensing Beam

Infrared LED

Sensing Mode (General)

Proximity

Cable Length (m)

Sub-range name

Q60AF

Main function

Sensor (Photo-electric)

Product series / family name

Q series

Primary brand

Banner Engineering

Functions

Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment

Operating mode

Light-ON Dark-ON

Ambient air temperature for operation

-20...+55 °C

Net Depth (mm)

60 mm

Design

background suppression system

Light Color

Infrared (IR)

Degree of protection

IP67 NEMA 6

Order code / Manufacturer SKU

63000

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Digital outputs

1 x digital output (PNP/NPN transistor)

Response time

2ms / 0.002 s

Net Width (mm)

25 mm

Sensing distance

20cm...2m

Shape

Rectangular

Compliant with standard(s)

cURus CE

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Material

thermoplastic housing Acrylic lns.

Net Height (mm)

75 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60BB6AF2000 on Powermatic Associates is $229.00. Order now.

About the product

Banner Engineering Q60BB6AF2000 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55°C and features a pre-wired 6.5ft / 2m cable with bare end flying leads for connectivity. This sensor falls within the Q60AF series and is protected by an IP67 NEMA 6 rated thermoplastic housing with an acrylic lens, ensuring durability in various environments. It has a supply voltage requirement of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is designed in a rectangular shape measuring 75 mm in height, 25 mm in width, and 60 mm in depth. The sensing distance ranges from 20cm to 2m, utilizing infrared (IR) light for detection. It offers both Light-ON and Dark-ON operating modes, includes 1 x digital output (PNP/NPN transistor), and boasts a rapid response time of 2ms / 0.002 s.
