Q20APARQ5 Banner Proximity Sensors

Q20APARQ5 on Powermatic Associates
Banner

Part#:Q20APARQ5

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:79976

Product Lifecycle:Active

Get a quick Quote!

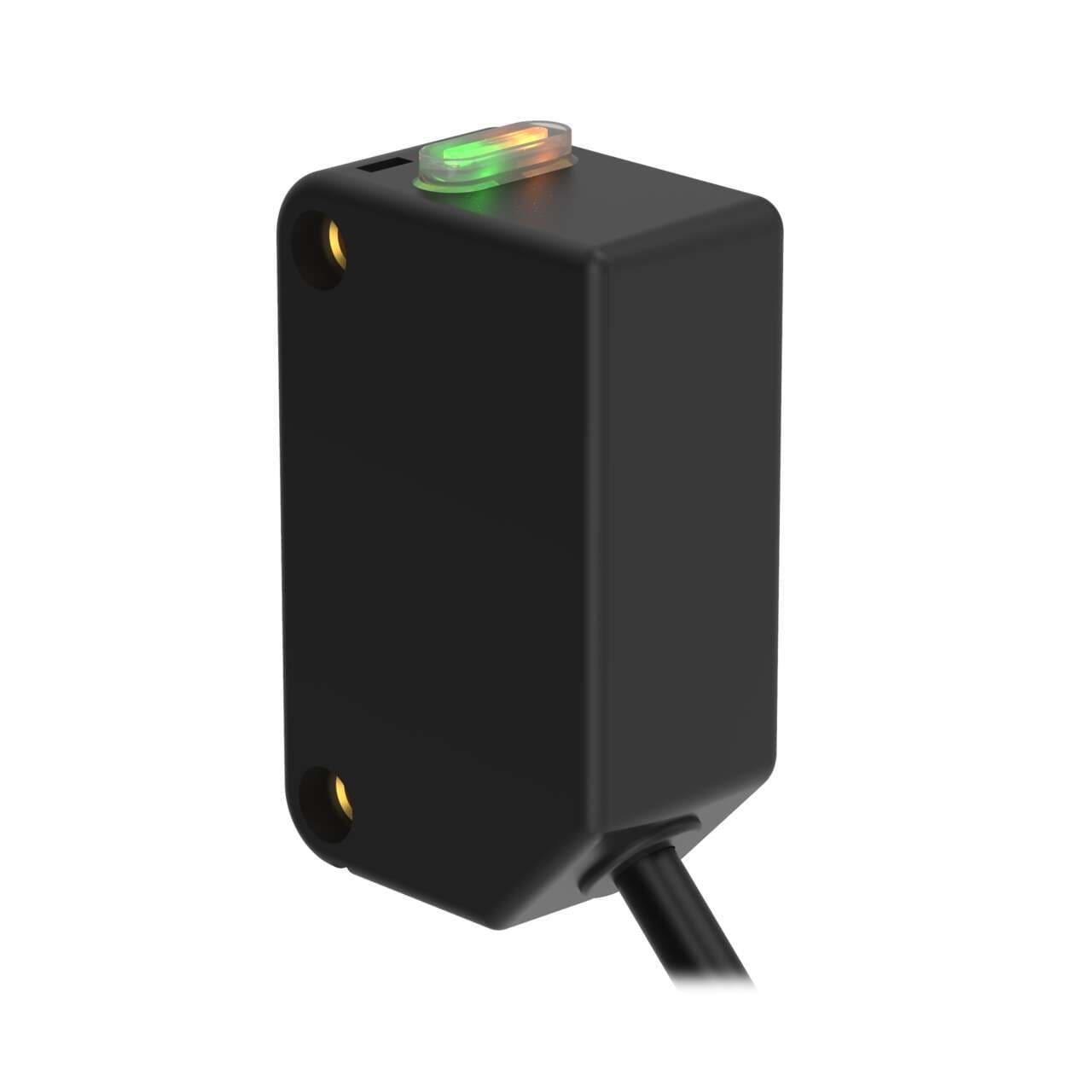

Q20 APARQ5 L.O. PNP ALARM

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20APARQ5 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • EPLAN Cabinet Installable
    No
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Barrel Diameter (mm)
    N/A
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • NEMA Rating
    NEMA 6
  • Opposed Mode Emitter/Receiver
    Receiver
  • Number of Pins
    4
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • Output response time (ms)
    1 ON/0.6 OFF
  • Repeatability (µs)
    140
  • Sensing Beam Wavelength
    655
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    60
  • Quick Disconnect Type
    M12 (Euro)
  • Min Op. Temp. (°C)
    -20
  • Power Supply/Supply Voltage
    10-30 V dc
  • Operation
    Light Operate
  • Sensing Mode (General)
    Opposed
  • Connection
    Pigtail QD
  • Sensing Beam
    Visible Red LED
  • Outputs
    PNP
  • Input/Output
    Discrete
  • Cable Length (m)
    0.15
  • Power
    DC
  • Max Sensing Distance (mm)
    12000
  • Housing Style
    Rectangular
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (Detailed)
    Receiver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20APARQ5 Description

Banner Engineering Q20APARQ5 is a long-range photo-electric sensor designed for through-beam system applications, functioning as the receiver component in an opposed mode alarm output setup. It operates within an ambient air temperature range of -20 to +60 degrees Celsius and is housed in a thermoplastic casing, ensuring durability. This sensor is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. Part of the Q20 series, it offers a sensing distance of up to 12 meters and utilizes visible red light for detection. The Q20APARQ5 features a rectangular shape, an IP67 NEMA 6 degree of protection against ingress, and is powered by a DC supply voltage ranging from 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It includes one digital output (PNP transistor) and operates in a Light-ON mode, with a response time of 1ms (ON) and 0.6ms (OFF).

Related documents Q20APARQ5 Specs

Q20APARQ5 127816.pdf
