Q20APFF150Q3 Banner Proximity Sensors
Part#:Q20APFF150Q3
Alt. Part#:809528
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Fixed-Field; Range: 150 mm; Input 10-30 V dc; Output: LO Solid-State PNP NO; 3-pin M8 150 mm (6 in) Pigtail
Product Details
- Weight 20.41164 g
- Country Of Origin MX
- Feature: Encapsulated No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Opposed Mode Emitter/Receiver N/A
- Indicator LEDs
- Barrel Diameter (mm) N/A
- Adjustments N/A
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 95% @ 50°C
- IP Rating IP67
- NEMA Rating NEMA 6
- Repeatability (µs) 155
- Number of Pins 3
- Sensing Beam Wavelength 655
- Delay at Power-up (ms) 100
- Special Feature: Remote Teach No
- Output response time (ms) 0.8
- Max Op. Temp. (°C) 60
- Min Op. Temp. (°C) -20
- Connection Pigtail QD
- Feature: Timing (Hold/Delay) No
- Quick Disconnect Type M8 (Pico)
- DeviceNet No
- IO Link No
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Input/Output Discrete
- Max Sensing Distance (mm) 150
- Small Visible Spot LED
- Power DC
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Housing Style Rectangular
- Sensing Beam Visible Red LED
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Proximity
- Operation Light Operate
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20APFF150Q3 on Powermatic Associates is $109.00. Order now.
About the product

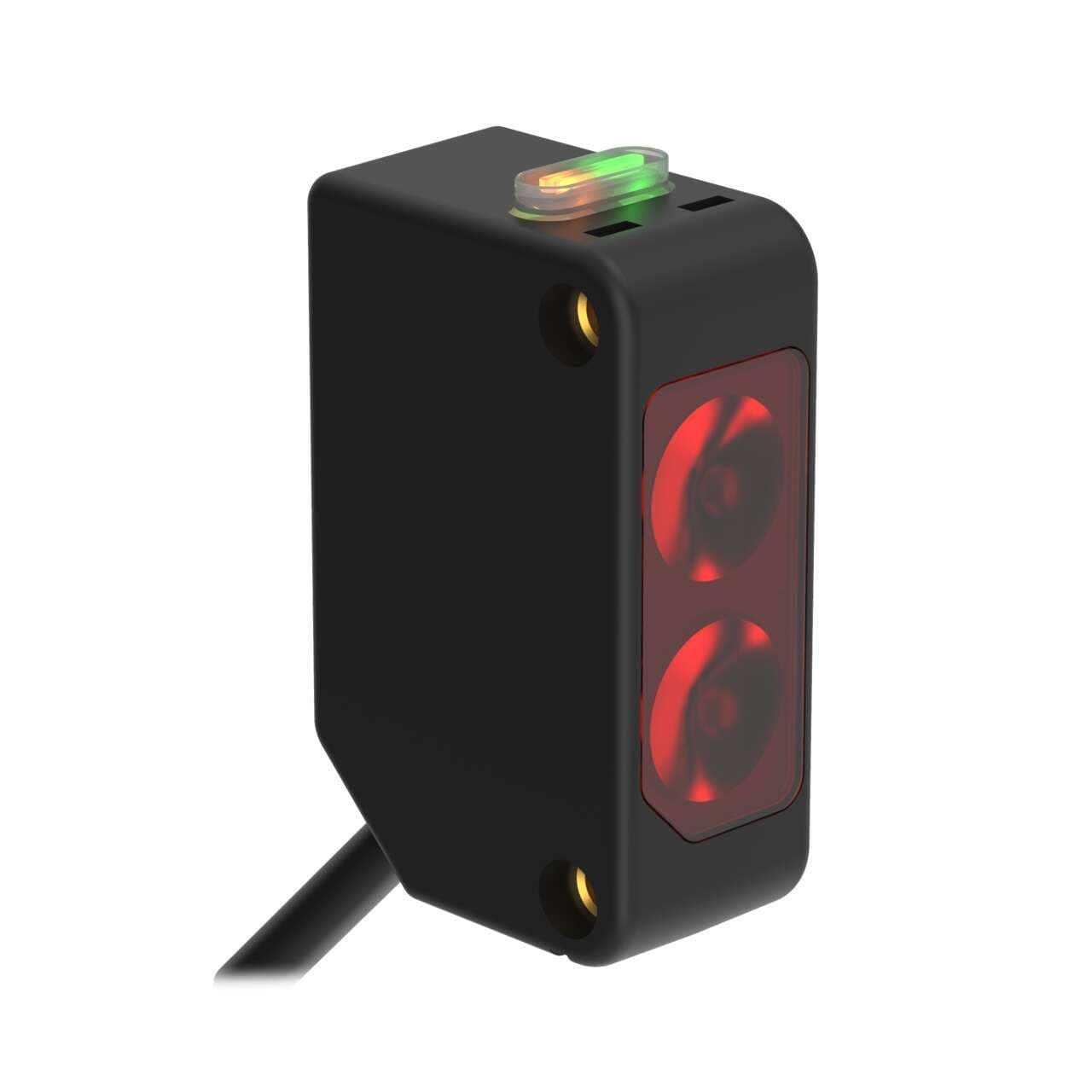

Banner Engineering Q20APFF150Q3 is a fixed-field photo-electric sensor from the Q20 series, designed with a background suppression system. It operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material, ensuring durability. This sensor features a pre-wired 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector for easy installation. It offers a sensing distance of 150mm with a visible red light color at a wavelength of 645 nm. The Q20APFF150Q3 operates in Light-ON mode and includes 1 x digital output (PNP transistor) with a rapid response time of 0.8ms / 0.0008 s. It is powered by a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, making it suitable for a wide range of industrial applications.
