XB6EAV5BP Schneider Electric Electronic Components
Part#:XB6EAV5BP
Manufacturer:Schneider Electric
Category:Electronic Components
Product Lifecycle:Active
Product description

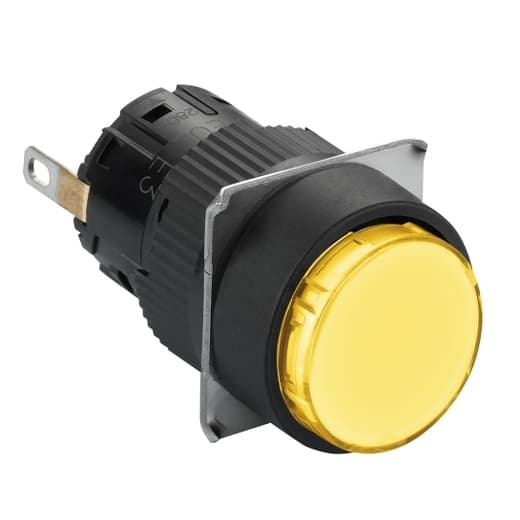

Schneider Electric XB6EAV5BP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component, part of the XB6 range, features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for ease of connection, with both fast-on (insulated) and solder pins terminal types available. The round-shaped pilot light has a diameter of 16 mm and is equipped with a yellow LED, operating at a supply voltage of 24 V DC. It is rated with a degree of protection of IP65, indicating a high level of protection against dust ingress and water jets from any direction.
Product Details
- Connections - Terminals Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
- Signalling Type Steady
- Service Life 30000 h
- Current Consumption 10 mA
- [Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1
- Marking CE
- Tightening Torque 5.31…8.85 lbf.in (0.6…1 N.m)
- Operating Position Any position
- [Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
- Overvoltage Category II IEC 60536
- Net Weight 0.01 lb(US) (0.006 kg)
- Light Block Supply Direct
- [Us] Rated Supply Voltage 24 V DC polarised
- Light Source Integral LED
- Mounting Diameter 0.63 in (16 mm)
- Cap/Operator Or Lens Colour Yellow
- Bezel Material Plastic
- Shape Of Signaling Unit Head Round
- Sale Per Indivisible Quantity 5
- Device Short Name XB6E
- Product Or Component Type Monolithic pilot light
- Range Of Product Harmony XB6E
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
XB6EAV5BP Related Documents
Manufacturer warranty
XB6EAV5BP Schneider Electric
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare XB6EAV5BP with other products
Connections - Terminals
Signalling Type
Service Life
Current Consumption
[Uimp] Rated Impulse With...
Marking
Tightening Torque
Operating Position
[Ui] Rated Insulation Vol...
Overvoltage Category
Net Weight
Light Block Supply
[Us] Rated Supply Voltage
Light Source
Mounting Diameter
Cap/Operator Or Lens Colo...
Bezel Material
Shape Of Signaling Unit H...
Sale Per Indivisible Quan...
Device Short Name
Product Or Component Type
Range Of Product
[Ie] Rated Operational Cu...
Electrical Durability
Operating Travel
Electrical Reliability
Terminals Description ISO...
Operating Force
Device Presentation
Surge Withstand
Supply Voltage Limits
Short-Circuit Protection
[Ith] Conventional Free A...
Contacts Material
Shape Of Screw Head
Mechanical Durability
Resistance To High Pressu...
Contacts Usage
Depth
Positive Opening
Width
Bulb Base
Height
Operator Additional Infor...
Contact Operation
Contacts Type And Composi...
Operator Profile
Type Of Operator
Head Type
Fixing Collar Material
Selected product
XB6EAV5BP
Schneider Electric
Schneider Electric XB6EAV5BP is a monolithic pilot light/lamp with an integral LED designed for sign...
Connections - TerminalsInsulated faston 2.8 x 0.5 m...
Signalling TypeSteady
Service Life30000 h
Current Consumption10 mA
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
MarkingCE
Tightening Torque5.31…8.85 lbf.in (0.6…1 N.m)
Operating PositionAny position
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Overvoltage CategoryII IEC 60536
Net Weight0.01 lb(US) (0.006 kg)
Light Block SupplyDirect
[Us] Rated Supply Voltage24 V DC polarised
Light SourceIntegral LED
Mounting Diameter0.63 in (16 mm)
Cap/Operator Or Lens ColourYellow
Bezel MaterialPlastic
Shape Of Signaling Unit HeadRound
Sale Per Indivisible Quantity5
Device Short NameXB6E
Product Or Component TypeMonolithic pilot light
Range Of ProductHarmony XB6E
[Ie] Rated Operational Current-
Electrical Durability-
Operating Travel-
Electrical Reliability-
Terminals Description ISO N°1-
Operating Force-
Device Presentation-
Surge Withstand-
Supply Voltage Limits-
Short-Circuit Protection-
[Ith] Conventional Free Air Thermal Current-
Contacts Material-
Shape Of Screw Head-
Mechanical Durability-
Resistance To High Pressure Washer-
Contacts Usage-
Depth-
Positive Opening-
Width-
Bulb Base-
Height-
Operator Additional Information-
Contact Operation-
Contacts Type And Composition-
Operator Profile-
Type Of Operator-
Head Type-
Fixing Collar Material-
XB5AW34B5
Schneider Electric
Schneider Electric XB5AW34B5 is an illuminated flush push-button designed for automation control sys...
Connections - TerminalsScrew clamp terminals, <= 2 ...
Signalling TypeSteady
Service Life100000 h at rated voltage an...
Current Consumption18 mA
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Marking-
Tightening Torque7.08…10.62 lbf.in (0.8…1.2 N...
Operating Position-
[Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1
Overvoltage Category-
Net Weight0.12 lb(US) (0.056 kg)
Light Block Supply-
[Us] Rated Supply Voltage24 V
Light SourceProtected LED
Mounting Diameter0.87 in (22 mm)
Cap/Operator Or Lens ColourRed
Bezel MaterialDark grey plastic
Shape Of Signaling Unit HeadRound
Sale Per Indivisible Quantity1
Device Short NameXB5
Product Or Component TypeIlluminated push-button
Range Of ProductHarmony XB5
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 EN/IE...
Electrical Durability1000000 cycles, AC-15, 2 A 2...
Operating Travel0.06 in (1.5 mm) NC changing...
Electrical ReliabilityΛ < 10exp(-6) 5 V, 1 mA in c...
Terminals Description ISO N°1(21-22)NC (13-14)NO
Operating Force3.5 N NC changing electrical...
Device PresentationComplete product
Surge Withstand1 kV IEC 61000-4-5
Supply Voltage Limits19.2…30 V DC 21.6…26.4 V AC
Short-Circuit Protection10 A cartridge fuse gG EN/IE...
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Contacts MaterialSilver alloy (Ag/Ni)
Shape Of Screw HeadCross compatible with Philip...
Mechanical Durability10000000 cycles
Resistance To High Pressure Washer1015.26 psi (7000000 Pa) 131...
Contacts UsageStandard contacts
Depth2.24 in (57 mm)
Positive OpeningWith EN/IEC 60947-5-1 append...
Width1.18 in (30 mm)
Bulb BaseIntegral LED
Height1.65 in (42 mm)
Operator Additional InformationWith plain lens
Contact OperationSlow-break
Contacts Type And Composition1 NO + 1 NC
Operator ProfileRed flush, unmarked
Type Of Operatorspring return
Head TypeStandard
Fixing Collar MaterialPlastic
XB5AW31B5
Schneider Electric
Schneider Electric XB5AW31B5 is an illuminated flush push-button designed for automation application...
Connections - TerminalsScrew clamp terminals, <= 2 ...
Signalling TypeSteady
Service Life100000 h at rated voltage an...
Current Consumption18 mA
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Marking-
Tightening Torque7.08…10.62 lbf.in (0.8…1.2 N...
Operating Position-
[Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1
Overvoltage Category-
Net Weight0.12 lb(US) (0.056 kg)
Light Block Supply-
[Us] Rated Supply Voltage24 V
Light SourceProtected LED
Mounting Diameter0.87 in (22 mm)
Cap/Operator Or Lens ColourWhite
Bezel MaterialDark grey plastic
Shape Of Signaling Unit HeadRound
Sale Per Indivisible Quantity1
Device Short NameXB5
Product Or Component TypeIlluminated push-button
Range Of ProductHarmony XB5
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 EN/IE...
Electrical Durability1000000 cycles, AC-15, 2 A 2...
Operating Travel0.06 in (1.5 mm) NC changing...
Electrical ReliabilityΛ < 10exp(-6) 5 V, 1 mA in c...
Terminals Description ISO N°1(13-14)NO (21-22)NC
Operating Force3.5 N NC changing electrical...
Device PresentationComplete product
Surge Withstand1 kV IEC 61000-4-5
Supply Voltage Limits19.2…30 V DC 21.6…26.4 V AC
Short-Circuit Protection10 A cartridge fuse gG EN/IE...
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Contacts MaterialSilver alloy (Ag/Ni)
Shape Of Screw HeadCross compatible with Philip...
Mechanical Durability10000000 cycles
Resistance To High Pressure Washer1015.26 psi (7000000 Pa) 131...
Contacts UsageStandard contacts
Depth2.24 in (57 mm)
Positive OpeningWith EN/IEC 60947-5-1 append...
Width1.18 in (30 mm)
Bulb BaseIntegral LED
Height1.65 in (42 mm)
Operator Additional InformationWith plain lens
Contact OperationSlow-break
Contacts Type And Composition1 NO + 1 NC
Operator ProfileWhite flush, unmarked
Type Of Operatorspring return
Head TypeStandard
Fixing Collar MaterialPlastic
