XB6EAV8BP Schneider Electric Electronic Components
Part#:XB6EAV8BP
Manufacturer:Schneider Electric
Category:Electronic Components
Product Lifecycle:Active
Product description

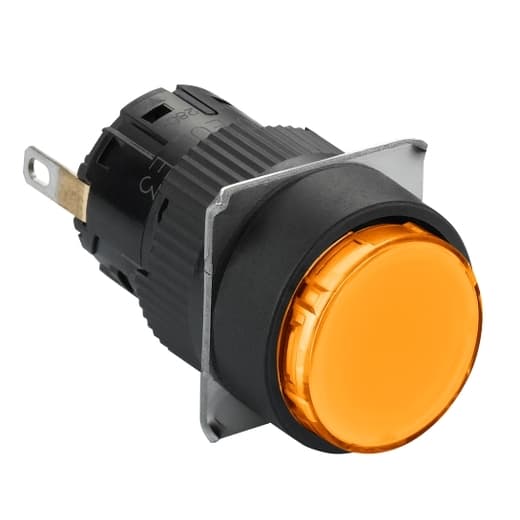

Schneider Electric XB6EAV8BP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component is part of the XB6 range and features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for easy installation and has a round shape. With an IP65 degree of protection, it is well-suited for use in areas where dust and water resistance are necessary. The pilot light has a diameter of 16 mm and operates at a supply voltage of 24 V DC. It emits an orange light and accommodates fast-on (insulated) and solder pins terminals for versatile connection options.
Product Details
- Connections - Terminals Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
- Current Consumption 10 mA
- Service Life 30000 h
- Signalling Type Steady
- [Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
- Tightening Torque 5.31…8.85 lbf.in (0.6…1 N.m)
- Overvoltage Category II IEC 60536
- Light Block Supply Direct
- [Us] Rated Supply Voltage 24 V DC polarised
- Device Short Name XB6E
- Net Weight 0.01 lb(US) (0.006 kg)
- Operating Position Any position
- Marking CE
- Shape Of Signaling Unit Head Round
- Cap/Operator Or Lens Colour Orange
- Sale Per Indivisible Quantity 5
- Light Source Integral LED
- Mounting Diameter 0.63 in (16 mm)
- Bezel Material Plastic
- Product Or Component Type Monolithic pilot light
- Range Of Product Harmony XB6E
