BJF36035 Schneider Electric Electronic Components

BJF36035 on Powermatic Associates
Schneider Electric

Part#:BJF36035

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

7 in stock

Apr 15, 2025

Product description

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design, with a rated current of 35A and a rated voltage of 600Vac 600Y/347Vac. The breaker is designed for a fixed busbar connection with a term. nut kit on both line and load sides, offering a degree of protection of IP40. It has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) device has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It operates within Utilisation category A and has protection settings for over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated impulse voltage (Uimp) is 8 kV, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal and magnetic protection functions, with a trip current rating of 35 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Breaking Capacity
    100 kA 208Y/120 V AC 50/60 Hz UL 489 100 kA 240 V AC 50/60 Hz UL 489 65 kA 480/277 V AC 50/60 Hz UL 489 65 kA 480 V AC 50/60 Hz UL 489 25 kA 600Y/347 V AC 50/60 Hz UL 489 50 kA 250 V DC UL 489
  • [Ics] Rated Service Breaking Capacity
    100 kA 220...240 V AC 50/60 Hz IEC 60947-2 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 65 kA 440 V AC 50/60 Hz IEC 60947-2
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Quantity Per Set
    Set of 1
  • Depth
    3.15 in (80 mm)
  • Net Weight
    2.04 lb(US) (0.924 kg)
  • Width
    3.19 in (81 mm)
  • Height
    5.39 in (137 mm)
  • Color
    Gray RAL 7016)
  • 9 Mm Pitches
    9
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • Electrical Connection
    Terminal nut ON and OFF end
  • Connection Pitch
    1.06 in (27 mm)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Utilisation Category
    Category A
  • Trip Unit Name
    TM-D
  • Continuous Current Rating
    80 %
  • Trip Unit Technology
    Thermal-magnetic
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ue] Rated Operational Voltage
    690 V AC 50/60 Hz UL 489
  • Breaking Capacity Code
    J
  • Device Application
    Distribution
  • Line Rated Current
    35 A
  • Product Name
    PowerPact B
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Protected Poles Description
    3t
  • Control Type
    Toggle
  • Device Short Name
    BJ 035
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BJF36035 Related Documents

Catalog-1631033885750.pdfProduct Datasheet-1631033885753.pdfInstruction Sheet-1631033885755.pdf

Similar products from: Schneider Electric Electronic Components

HDF36035 on Powermatic Associates

HDF36035

Schneider Electric

Square D by Schneider Electric HDF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDF sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 35A and offers thermal protection for overload and magnetic protection for short-circuit scenarios. This MCCB has a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It is designed for individual unit mount on plate with a Term. nut kit for fixed busbar connection on both line and load sides. The HDF36035 has a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm, featuring an IP40 degree of protection. Its operating mode is manual toggle, with over-current protection settings fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 850A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 35 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

1 in stock
LJB606 on Powermatic Associates

LJB606

Schneider Electric

WIREWAY 6 x 6 - N12 - 6 in lg

2 in stock
LJB64 on Powermatic Associates

LJB64

Schneider Electric

WIREWAY 6 x 6 - N12 - 4 ft lg

3 in stock
QOB330GFI5237 on Powermatic Associates

QOB330GFI5237

Schneider Electric

Square D by Schneider Electric QOB330GFI5237 is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 30A and a bolt-on connection type. This MCB operates at a rated voltage of 208 V AC and accommodates a wire cross-section of 14-8AWG for one copper cable. It is a 3 Pole device with a residual current sensitivity of 6mA / 0.006. The QOB330GFI5237 offers ground fault protection and has a short circuit breaking rating of 10kA at both 120Vac and 208Vac. It is equipped with ring tongue type terminals.

8 in stock
LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.

1 in stock
LC1F400G7 on Powermatic Associates

LC1F400G7

Schneider Electric

Schneider Electric LC1F400G7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration and supports ring-lugs/bar connections. The contactor is rated for currents of 500A under AC-1 conditions and 400A at 440Vac under AC-3 conditions. It operates with a control voltage (AC) range of 102-132Vac (120Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model does not include normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltage (Uimp) of 8 kV and supports rated active power (kW) of 110kW at 220-230Vac, 200kW at 380-400Vac, 220kW at 415Vac, 250kW at 440Vac, 257kW at 500Vac, 280kW at 660-690Vac, and 185kW at 1000Vac, all under AC-3 conditions. The LC1F400G7 boasts a mechanical durability of 10,000,000 operations at no load and is designed for phase-to-phase rated voltage (AC) applications up to 1000 V.

1 in stock

Manufacturer warranty

BJF36035 Schneider Electric

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

7

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare BJF36035 with other Electronic Components products

Breaking Capacity

[Ics] Rated Service Break...

Number Of Slots

AWG Gauge

Mounting Mode

Tightening Torque

Quantity Per Set

Depth

Net Weight

Width

Selected product

BJF36035
7 in stock
BJF36035
Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity100 kA 208Y/120 V AC 50/60 H...

[Ics] Rated Service Breaking Capacity100 kA 220...240 V AC 50/60 ...

Number Of Slots1 auxiliary switch OF plug-i...

AWG GaugeAWG 14...AWG 8 aluminium/cop...

Mounting ModeClip-on 35 mm symmetrical DI...

Tightening Torque44.25 lbf.in (5 N.m) 0.00…0....

Quantity Per SetSet of 1

Depth3.15 in (80 mm)

Net Weight2.04 lb(US) (0.924 kg)

Width3.19 in (81 mm)

M9U31110
1 in stock
M9U31110
Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads,...

Breaking Capacity10 kA Icu 220 V DC EN/IEC 60...

[Ics] Rated Service Breaking Capacity-

Number Of Slots-

AWG Gauge-

Mounting Mode-

Tightening Torque-

Quantity Per Set-

Depth-

Net Weight-

Width-

HDF36035
1 in stock
HDF36035
Schneider Electric

Square D by Schneider Electric HDF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity-

[Ics] Rated Service Breaking Capacity-

Number Of Slots-

AWG Gauge-

Mounting Mode-

Tightening Torque-

Quantity Per Set-

Depth-

Net Weight-

Width-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

BJF36100 on Powermatic Associates

BJF36100

Verified stock: 1

Square D by Schneider Electric BJF36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 100A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, and it offers a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. It has 3 poles (3P) and falls under the utilization category A. The dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. Its protection settings include over-current fixed at 100A, short-circuit hold current fixed at 1000A, and short-circuit trip current fixed at 1500A. The rated voltage for DC operations is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 100 AT. The electrical durability with load is 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies with voltage, offering 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac for UL489 standards, and 50kA at 250Vdc. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BJF36040 on Powermatic Associates

BJF36040

Verified stock: 0

Square D by Schneider Electric BJF36040 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design with a rated current of 40A and a rated voltage of 600Vac 600Y/347Vac. The breaker has an impulse voltage rating of 8 kV and offers a connection via a terminal nut kit for fixed busbar connections on both line and load sides. It is designed for fixed mounting on a DIN rail or as an individual unit mount on a plate, with a degree of protection rated at IP40. This 3-pole (3P) device has a net height of 137 mm, a depth of 80 mm, and a width of 81 mm. It is categorized under utilization category A and features over-current protection fixed at 40A, short-circuit hold current protection fixed at 400A, and short-circuit trip current protection fixed at 600A. The BJF36040 has a rated insulation voltage (Ui) of 800 V, a rated operating voltage (Ue) of 690 V, and offers thermal and magnetic protection functions. Its trip current rating is 40 AT, with a frame current rating of 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of up to 100kA at 240Vac, 65kA at 480Vac, and 50kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Schneider Electric

BJF36060 on Powermatic Associates

BJF36060

Verified stock: 0

Square D by Schneider Electric BJF36060 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 60A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. This MCCB offers a connection via Term. nut kit for fixed busbar connection on both line and load sides and provides a degree of protection of IP40. It is designed for mounting fixed on DIN rail or as an individual unit mount on plate, with a 3-pole (3P) configuration. The net dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 60A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 690 V. It includes thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 60 AT. The electrical durability with load is rated for 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac, 65kA at 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

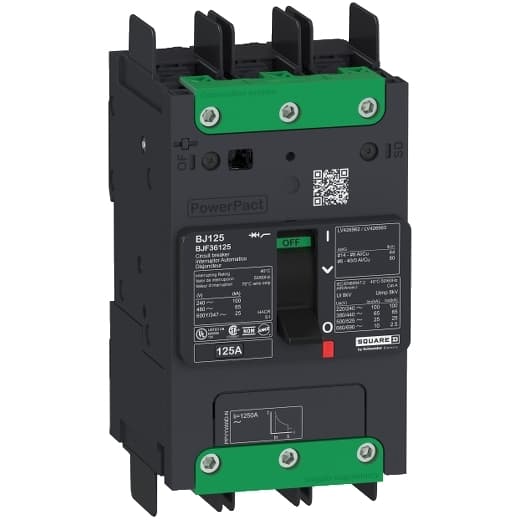

BJF36050 on Powermatic Associates
