7113000 Rittal Electronic Components
Part#:7113000
Manufacturer:Rittal
Category:Electronic Components
Product Lifecycle:Active
Mar 14, 2025
Product description
DK Earth rail, horizontal, L: 450 mm, For W: 600/800 mm
Product Details
- Product description DK Earth rail, horizontal, L: 450 mm, For W: 600/800 mm
- eCl@ss 6.0/6.1 27400605
- Packaging unit 1 pc(s)
- eCl@ss 8.0/8.1 27400605
- Weight/packaging unit 0.438 kg ( 1lb. )
- Suitable for Enclosure type: TS, Width: = 600 mm (= 24" ), Width: = 800 mm (= 31" )
- Supply includes Ground rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm, 20 connection points with M5 screws, 2 ground connections 25 mm², 2 isolators, Assembly components
- ETIM 6.0 EC000329
- Dimensions Width: 15 mm, Height: 5 mm, Length: 450 mm ( 18" )
- ETIM 7.0 EC000329
- Customs tariff number 74199990
- EAN 4028177124943
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
7113000 Rittal
Get a quick Quote!
Request a quote, and we will send you price within minutes.
Stock:
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 7113000 with other products
Product description
eCl@ss 6.0/6.1
Packaging unit
eCl@ss 8.0/8.1
Weight/packaging unit
Suitable for
Supply includes
ETIM 6.0
Dimensions
ETIM 7.0
Customs tariff number
EAN
eCl@ss 8.0/8.1
Product description
ETIM 6.0
eCl@ss 6.0/6.1
ETIM 7.0
Customs tariff number
EAN
Packaging unit
Material
Dimensions
Note
Suitable for
Surface finish
Weight/packaging unit
eCl@ss 8.0/8.1
eCl@ss 6.0/6.1
Product description
ETIM 6.0
Customs tariff number
ETIM 7.0
Copper weight (kg per piece)
Weight/packaging unit
EAN
Rated current for temperature increase by
Material
Laminated flat copper version
Note
Dimensions
Packaging unit
Selected product
Product descriptionDK Earth rail, horizontal, L: 450 mm, For W: 600/800 mm
eCl@ss 6.0/6.127400605
Packaging unit1 pc(s)
eCl@ss 8.0/8.127400605
Weight/packaging unit0.438 kg ( 1lb. )
Suitable forEnclosure type: TS, Width: = 600 mm (= 24" ), Width: = 800 mm (= 31" )
Supply includesGround rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm, 20 connection points with M5 screws, 2 ground connections 25 mm², 2 isolators, Assembly components
ETIM 6.0EC000329
DimensionsWidth: 15 mm, Height: 5 mm, Length: 450 mm ( 18" )
ETIM 7.0EC000329
Customs tariff number74199990
EAN4028177124943
eCl@ss 8.0/8.1-
Product description-
ETIM 6.0-
eCl@ss 6.0/6.1-
ETIM 7.0-
Customs tariff number-
EAN-
Packaging unit-
Material-
Dimensions-
Note-
Suitable for-
Surface finish-
Weight/packaging unit-
eCl@ss 8.0/8.1-
eCl@ss 6.0/6.1-
Product description-
ETIM 6.0-
Customs tariff number-
ETIM 7.0-
Copper weight (kg per piece)-
Weight/packaging unit-
EAN-
Rated current for temperature increase by-
Material-
Laminated flat copper version-
Note-
Dimensions-
Packaging unit-
Product description-
eCl@ss 6.0/6.1-
Packaging unit-
eCl@ss 8.0/8.1-
Weight/packaging unit-
Suitable for-
Supply includes-
ETIM 6.0-
Dimensions-
ETIM 7.0-
Customs tariff number-
EAN-
eCl@ss 8.0/8.127189261

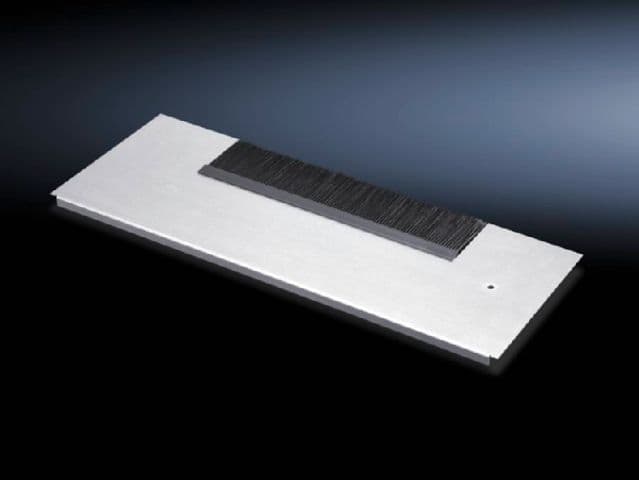

Product descriptionDK Gland plate module, For W: 800 mm, For cable entry with brush
ETIM 6.0EC002620
eCl@ss 6.0/6.127182003
ETIM 7.0EC002620
Customs tariff number94039010
EAN4028177233355
Packaging unit1 pc(s)
MaterialModule plate: Carbon steel, Brush strip: Plastic, UL 94-HB, halogen-free
DimensionsDepth: 237.5 mm ( 9.4" )
NoteSeveral base plate modules need to be combined to close off the base completely in the TS-IT
Suitable forEnclosure type: TS, Enclosure type: TS IT, Enclosure type: SE, Width: 800 mm ( 31" )
Surface finishZinc-plated
Weight/packaging unit1.95 kg ( 4.3lb. )
eCl@ss 8.0/8.1-
eCl@ss 6.0/6.1-
Product description-
ETIM 6.0-
Customs tariff number-
ETIM 7.0-
Copper weight (kg per piece)-
Weight/packaging unit-
EAN-
Rated current for temperature increase by-
Material-
Laminated flat copper version-
Note-
Dimensions-
Packaging unit-
Product description-
eCl@ss 6.0/6.1-
Packaging unit-
eCl@ss 8.0/8.1-
Weight/packaging unit-
Suitable for-
Supply includes-
ETIM 6.0-
Dimensions-
ETIM 7.0-
Customs tariff number-
EAN-
eCl@ss 8.0/8.1-
Product description-
ETIM 6.0-
eCl@ss 6.0/6.1-
ETIM 7.0-
Customs tariff number-
EAN-
Packaging unit-
Material-
Dimensions-
Note-
Suitable for-
Surface finish-
Weight/packaging unit-
eCl@ss 8.0/8.127370303
eCl@ss 6.0/6.127370303
Product descriptionSV Laminated copper bar, WH: 20x5 mm, L: 2000 mm
ETIM 6.0EC001522
Customs tariff number74071000
ETIM 7.0EC001522
Copper weight (kg per piece)1.8
Weight/packaging unit2.3 kg ( 5.1lb. )
EAN4028177666764
Rated current for temperature increase by70 K: 525 A, 50 K: 435 A, 30 K: 330 A
MaterialCu lamina: High-purity electrolyte copper, Insulation: Highly resistant vinyl blend, expansion 370%, temperature: -30°C ... +105°C, fire protection according to UL-94 V0, dielectric strength: 20 kV/mm
Laminated flat copper versionNumber of lamina: 5, Lamina width: 20 mm ( 0.79" ), Lamina thickness: 1 mm ( 0.04" )
NoteAssembly = number of layers x layer width x layer thickness, May be cut to length as required, The conductor temperature of the laminated copper bar is derived by adding the ambient temperature and the temperature increase together. Example: 3565.005 carr
DimensionsLength: 2,000 mm
Packaging unit1 pc(s)
