XB6EAV4BP Schneider Electric Industrial Automation Components

XB6EAV4BP on Powermatic Associates
Schneider Electric

Part#:XB6EAV4BP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

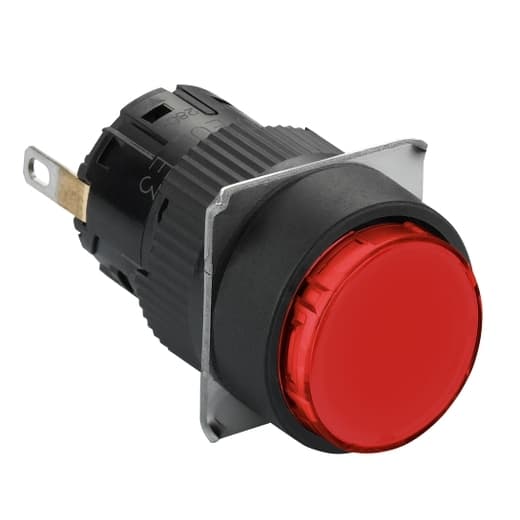

Schneider Electric XB6EAV4BP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component is part of the XB6 range and features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for easy installation and has a round shape. With an IP65 degree of protection, it is safeguarded against dust ingress and low-pressure water jets from any direction. The pilot light has a diameter of 16 mm and operates at a supply voltage of 24 V DC. It emits a red light and accommodates fast-on (insulated) and solder pins type of terminals for electrical connections.

Product Details

  • Connections - Terminals
    Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
  • Service Life
    30000 h
  • Current Consumption
    10 mA
  • [Uimp] Rated Impulse Withstand Voltage
    2.5 kV IEC 60947-1
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m)
  • Signalling Type
    Steady
  • [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
  • Marking
    CE
  • Operating Position
    Any position
  • Cap/Operator Or Lens Colour
    Red
  • Net Weight
    0.01 lb(US) (0.006 kg)
  • Light Block Supply
    Direct
  • [Us] Rated Supply Voltage
    24 V DC polarised
  • Overvoltage Category
    II IEC 60536
  • Bezel Material
    Plastic
  • Mounting Diameter
    0.63 in (16 mm)
  • Light Source
    Integral LED
  • Sale Per Indivisible Quantity
    5
  • Device Short Name
    XB6E
  • Shape Of Signaling Unit Head
    Round
  • Product Or Component Type
    Monolithic pilot light
  • Range Of Product
    Harmony XB6E

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XB6EAV4BP on Powermatic Associates is $11.90. Order now.
