XB6EAV1BP Schneider Electric Electronic Components
Part#:XB6EAV1BP
Manufacturer:Schneider Electric
Category:Electronic Components
Product Lifecycle:Active
Product description

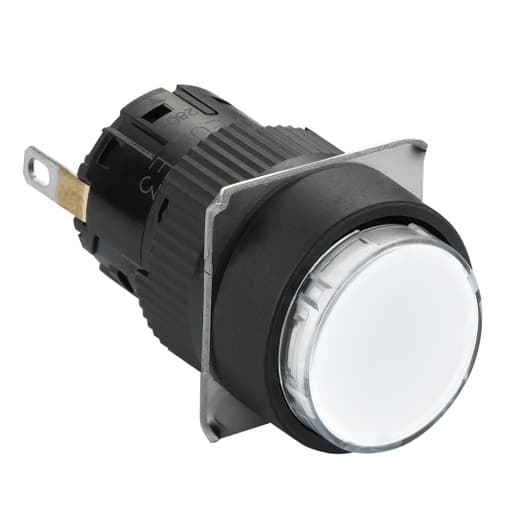

Schneider Electric XB6EAV1BP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component, part of the XB6 range, features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for quick and secure connections, with both fast-on (insulated) and solder pins terminal types available for versatile wiring options. The round-shaped pilot light has a diameter of 16 mm and is equipped with a white LED, providing clear visibility. It operates on a 24 V DC supply voltage and is rated with an IP65 degree of protection, signifying dust tightness and protection against water jets from any direction.
Product Details
- Connections - Terminals Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
- Current Consumption 10 mA
- Signalling Type Steady
- Service Life 30000 h
- [Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1
- Operating Position Any position
- Tightening Torque 5.31…8.85 lbf.in (0.6…1 N.m)
- Overvoltage Category II IEC 60536
- Marking CE
- Net Weight 0.01 lb(US) (0.006 kg)
- [Us] Rated Supply Voltage 24 V DC polarised
- Light Block Supply Direct
- Range Of Product Harmony XB6E
- Device Short Name XB6E
- Mounting Diameter 0.63 in (16 mm)
- Product Or Component Type Monolithic pilot light
- Bezel Material Plastic
- Light Source Integral LED
- Cap/Operator Or Lens Colour White
- Sale Per Indivisible Quantity 5
- Shape Of Signaling Unit Head Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
