XB6ECV4BP Schneider Electric Industrial Automation Components
Part#:XB6ECV4BP
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

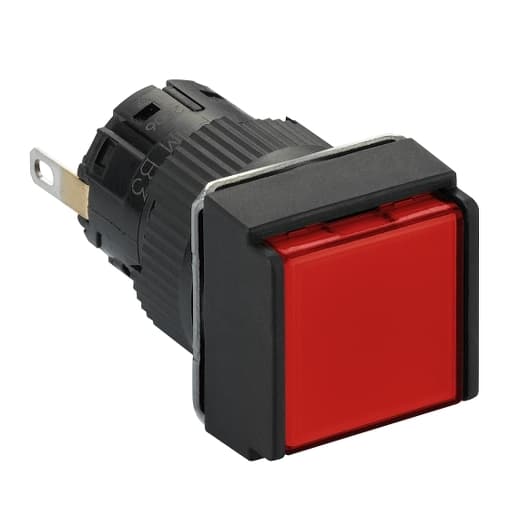

Schneider Electric XB6ECV4BP is a monolithic pilot light/lamp featuring an integral LED designed for signaling applications. This component, part of the XB6 sub-range, is constructed with a plastic body and bezel. It offers a fast connector socket for connections, ensuring ease of installation. The pilot light has a square shape and is equipped with fast-on (insulated) and solder pin terminals for versatile wiring options. It boasts a degree of protection rated at IP65, making it suitable for use in environments where dust and water resistance are necessary. The XB6ECV4BP operates on a 24 V DC supply voltage and emits a red light. With a diameter of 16 mm, this pilot light is compact and designed for efficient signaling in various applications.
Product Details
- Connections - Terminals Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
- [Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1
- Current Consumption 10 mA
- Signalling Type Steady
- Service Life 30000 h
- Overvoltage Category II IEC 60536
- [Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
- Tightening Torque 5.31…8.85 lbf.in (0.6…1 N.m)
- Marking CE
- Operating Position Any position
- [Us] Rated Supply Voltage 24 V DC polarised
- Net Weight 0.01 lb(US) (0.006 kg)
- Light Block Supply Direct
- Device Short Name XB6E
- Bezel Material Plastic
- Light Source Integral LED
- Cap/Operator Or Lens Colour Red
- Shape Of Signaling Unit Head Square
- Sale Per Indivisible Quantity 5
- Mounting Diameter 0.63 in (16 mm)
- Product Or Component Type Monolithic pilot light
- Range Of Product Harmony XB6E
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
