XB6EAV3JP Schneider Electric Electronic Components
Part#:XB6EAV3JP
Manufacturer:Schneider Electric
Category:Electronic Components
Product Lifecycle:Active
Product description

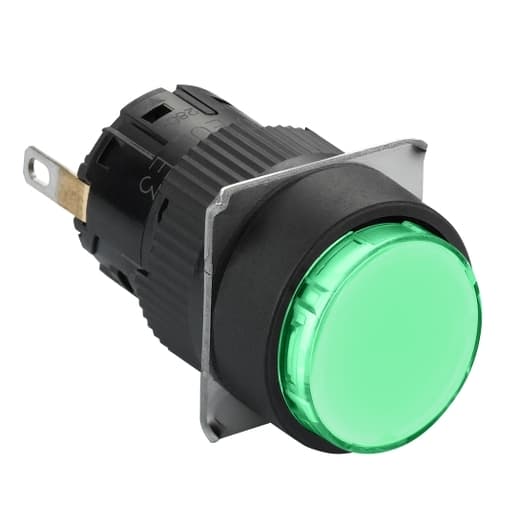

Schneider Electric XB6EAV3JP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component, part of the XB6 range, features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for ease of installation and is characterized by a round shape. With an IP65 degree of protection, it is well-suited for use in areas where dust and water resistance are necessary. The pilot light has a diameter of 16 mm and operates at a supply voltage of 12 V DC. It emits a green light, providing clear visibility. The XB6EAV3JP is equipped with fast-on (insulated) and solder pins terminals, facilitating versatile connection options.
Product Details
- Connections - Terminals Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
- Current Consumption 10 mA
- Signalling Type Steady
- Service Life 30000 h
- [Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1
- Tightening Torque 5.31…8.85 lbf.in (0.6…1 N.m)
- [Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
- Marking CE
- Operating Position Any position
- Overvoltage Category II IEC 60536
- Net Weight 0.01 lb(US) (0.006 kg)
- [Us] Rated Supply Voltage 12 V DC polarised
- Light Block Supply Direct
- Bezel Material Plastic
- Mounting Diameter 0.63 in (16 mm)
- Product Or Component Type Monolithic pilot light
- Sale Per Indivisible Quantity 5
- Light Source Integral LED
- Range Of Product Harmony XB6E
- Device Short Name XB6E
- Shape Of Signaling Unit Head Round
- Cap/Operator Or Lens Colour Green
