XB6EAV4JP Schneider Electric Electronic Components
Part#:XB6EAV4JP
Manufacturer:Schneider Electric
Category:Electronic Components
Product Lifecycle:Active
Product description

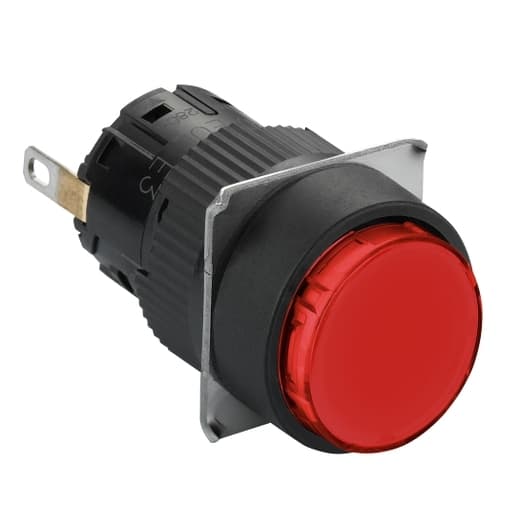

Schneider Electric XB6EAV4JP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component is part of the XB6 range and features a plastic body and bezel. It offers a round shape with a diameter of 16 mm and is equipped with a fast connector socket for easy installation. The XB6EAV4JP provides a degree of protection rated at IP65, making it suitable for use in environments where dust and water resistance are necessary. It operates on a supply voltage of 12 V DC and emits a red light. The connection to electrical circuits is facilitated through fast-on (insulated) or solder pins terminals, providing flexibility in wiring.
Product Details
- Connections - Terminals Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket
- Operating Position Any position
- Cap/Operator Or Lens Colour Red
- Service Life 30000 h
- Current Consumption 10 mA
- Signalling Type Steady
- [Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1
- Tightening Torque 5.31…8.85 lbf.in (0.6…1 N.m)
- Marking CE
- Net Weight 0.01 lb(US) (0.006 kg)
- Light Block Supply Direct
- Overvoltage Category II IEC 60536
- [Us] Rated Supply Voltage 12 V DC polarised
- Light Source Integral LED
- Shape Of Signaling Unit Head Round
- Sale Per Indivisible Quantity 5
- Product Or Component Type Monolithic pilot light
- Mounting Diameter 0.63 in (16 mm)
- Device Short Name XB6E
- Bezel Material Plastic
- Range Of Product Harmony XB6E
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
