ML50.100

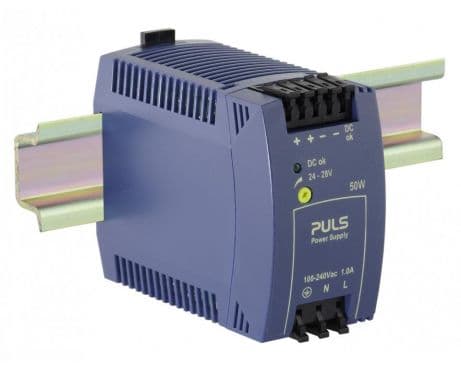

PULS ML50.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 DC-OK relay contact output. The unit provides a rated current of 2.1A at 24Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac; 47-63Hz), a turn-ON voltage of 65Vac, and a shutdown voltage of 55Vac. Additionally, it can operate with DC supply voltages between 82Vdc and 380Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The PSU's housing is made from a PC / ABS blend, and it is compatible with single-phase (1AC) or DC networks. Its dimensions are W45mm x H75mm x D91mm, and it has a net width of 45 mm. The rated power is 50W, and the output voltage is adjustable between 24Vdc and 28Vdc, with a 400mV turn-ON overshoot. It features protection functions including an NTC (input inrush current limiter) and boasts efficiencies of 0.89 (230Vac input), 0.884 (120Vac input), and 0.875 (100Vac input). The current consumption can reach up to 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. The PSU has a 32ms start-up delay for 100-230Vac input, a rise time of 33-48ms under nominal input with a constant full current load and 0mF load capacitance, and a rise time of 45-60ms under the same conditions with 2mF load capacitance. Power dissipation/losses are calculated at 6.2 W, and the electrical durability is rated at a minimum of 54kh (54,000 hours) at +40°C. The ripple is specified as 50mVpp (20Hz...20MHz; 50Ω), and the output stage capacitance is 1600 µF.
