PULS PIM90.241 is a power supply unit designed for AC/DC conversion with a DIN rail mounting option. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. This unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within the -10 to +60°C range, and 2.8A at 24Vdc at +70°C. It utilizes screw-clamp connections for secure installation and supports a supply voltage range of 90Vac to 264Vac across various nominal values (100Vac to 240Vac) at 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 55Vac, and a shutdown voltage of 47Vac. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. It is designed for single-phase (1AC) networks, with a net width of 36mm. The rated power is 90W at temperatures between -10 and +60°C, and 67.2W at +70°C, with output voltage adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and overload/short-circuit protection. The unit is not suitable for series or parallel operation and can handle back-feeding loads up to 35V without malfunctioning. It achieves an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with a current consumption of 0.95A at 230Vac input at full output. The start-up delay is 50ms for 100-230Vac input, with a hold time of 119ms at 230Vac input. Power dissipation is 6W at 230Vac input with a full output load. Electrical durability is rated at up to 815000 hours at 25°C with 1.9A load and 1AC 230Vac input. The output stage capacitance is 1600µF, and the ripple is maintained at 100mVpp across a 20Hz to 20MHz range with a 50Ω load.
2 in stock
24 hours
PULS UBC10.241 is an Uninterruptible Power Supply (UPS) control module within the U-series, featuring a built-in battery with a 50% power reserve and a green status LED. This module is housed in aluminium and utilizes spring-clamp connections for installation. It measures W123mm x H124mm x D119mm and operates on a supply voltage range of 22.5Vdc to 30Vdc, with a nominal 24Vdc. The rated current is 10A at 22.5Vdc and can reach up to 15A in buffer mode for less than 5 seconds at full output voltage. It supports DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +40°C. The current consumption is 1.1A at a 24Vdc input, and it is designed for DC networks. Visual position indicators include Ready, Buffering, Inhibit, and Replace Battery. Protection functions include output overvoltage protection with a typical 32Vdc and a maximum of 35Vdc, and overload/short-circuit protection with a minimum of 17.9A and a maximum of 21A at load impedance. It is advised not to use the DC-UPS in parallel to increase output power, but paralleling two units for 1+1 redundancy is possible for higher system reliability. The output voltage is regulated at 22.5Vdc in buffer mode with a 23Vdc turn-ON. The efficiency is rated at 0.978 with a 24Vdc input, and the rated power is 360W at 24Vdc and 240W/360W in buffer mode. Power dissipation/losses are 2.9W with a 24Vdc input at 0A output current and 5.5W at 10A output current. Ripple is maintained at 20mVpp across a frequency range of 20Hz to 20MHz at 50Ω. The electrical durability is rated at 137400 hours at 40°C with a 10A output and 24Vdc input, equivalent to 15 years or 131400 hours at both 40°C with a 5A output and 25°C with a 10A output.
1 in stock
24 hours
PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF.
1 in stock
24 hours
PULS CP10.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39mm. The unit consumes 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A at 230Vac input and 7A at 120Vac input. It offers an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The CP10.241-C1 features IP20 degree of protection and is resistant to harsh environments due to its conformal coated PCB. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and a rise time of 30ms to 160ms depending on the load capacitance. It includes protection functions such as output overvoltage, overload/short-circuit, and over-temperature protection with automatic restart. The power supply supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability ranges from 39,000 to 499,000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit is part of the CP-series, featuring ATEX approval, conformal coating, 20% power reserve, and a DC-OK relay contact output. It uses screw-clamp connections and accepts a supply voltage of 88Vdc-180Vdc or 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc in temperatures up to +45°C, decreasing to 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.
1 in stock
24 hours
PULS CS5.241 AC/DC Power Supply, 5A, 120W, 24DC output, 100-120 VAC input
1 in stock
24 hours
PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.
4 in stock
24 hours

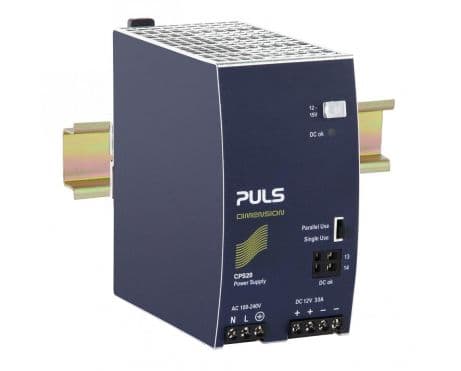

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.
1 in stock
24 hours

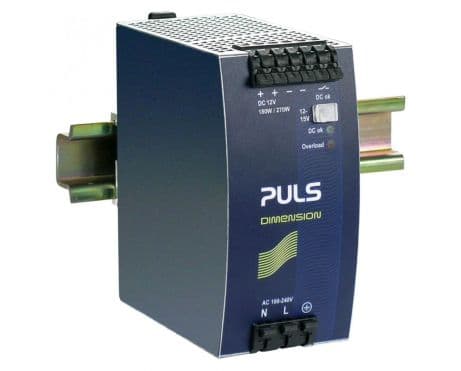

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.
1 in stock
24 hours

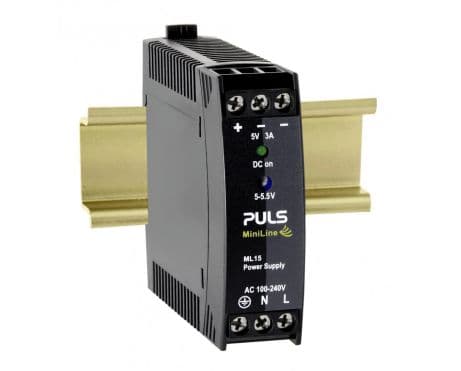

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.
1 in stock
24 hours
PULS CP5.481 is a DIN rail mounting power supply unit with an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -10 to +70°C, with linear derating between +60 and +70°C. The unit consumes current at varying rates depending on the input voltage, including 0.61A at 230Vac, 1.09A at 120Vac, and 1.31A at 100Vac for full output, among other specified rates. It features an IP20 degree of protection and achieves an efficiency of up to 93.5% at 230Vac input. The dimensions are specified as 32mm in width, 124mm in height, and 102mm in depth. The CP5.481 includes a time delay for start-up and rise, with specific values provided for different conditions. It offers protection functions such as output overvoltage and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 63V. Power dissipation losses are detailed for various input conditions, and the output stage capacitance is 750µF. Electrical durability is extensively detailed, highlighting operational hours under various conditions and temperatures. The ripple voltage is specified under different load conditions. This AC/DC power supply unit is part of the CP-series, designed with NEC Class 2, a 20% power reserve, and includes a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. It supports a wide range of supply voltages both in AC and DC, with detailed specifications for rated current and power across different temperatures, and an adjustable output voltage range of 48-56Vdc. The hold time after power loss is also specified for different input conditions.
3 in stock
24 hours
| Item | Manufacturer | Price | Stock | Delivery | |
|---|---|---|---|---|---|
| PIM90.241 PULS PIM90.241 is a power supply unit designed for AC/DC conversion with a DIN rail mounting option. It operates within an ambient air temperature range of -10 to +60°C, with linear derating up to +70°C. This unit features a DC-OK relay contact output and provides a rated current of 3.8A at 24Vdc within the -10 to +60°C range, and 2.8A at 24Vdc at +70°C. It utilizes screw-clamp connections for secure installation and supports a supply voltage range of 90Vac to 264Vac across various nominal values (100Vac to 240Vac) at 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 55Vac, and a shutdown voltage of 47Vac. The PIM-series unit measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in a polycarbonate (PC) material. It is designed for single-phase (1AC) networks, with a net width of 36mm. The rated power is 90W at temperatures between -10 and +60°C, and 67.2W at +70°C, with output voltage adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and overload/short-circuit protection. The unit is not suitable for series or parallel operation and can handle back-feeding loads up to 35V without malfunctioning. It achieves an efficiency of 0.938 at 230Vac input and 0.921 at 120Vac input, with a current consumption of 0.95A at 230Vac input at full output. The start-up delay is 50ms for 100-230Vac input, with a hold time of 119ms at 230Vac input. Power dissipation is 6W at 230Vac input with a full output load. Electrical durability is rated at up to 815000 hours at 25°C with 1.9A load and 1AC 230Vac input. The output stage capacitance is 1600µF, and the ripple is maintained at 100mVpp across a 20Hz to 20MHz range with a 50Ω load. | Puls | $135.00 | 2 in stock | 24 hours |
| UBC10.241 PULS UBC10.241 is an Uninterruptible Power Supply (UPS) control module within the U-series, featuring a built-in battery with a 50% power reserve and a green status LED. This module is housed in aluminium and utilizes spring-clamp connections for installation. It measures W123mm x H124mm x D119mm and operates on a supply voltage range of 22.5Vdc to 30Vdc, with a nominal 24Vdc. The rated current is 10A at 22.5Vdc and can reach up to 15A in buffer mode for less than 5 seconds at full output voltage. It supports DIN rail mounting and can operate in ambient air temperatures ranging from 0 to +40°C. The current consumption is 1.1A at a 24Vdc input, and it is designed for DC networks. Visual position indicators include Ready, Buffering, Inhibit, and Replace Battery. Protection functions include output overvoltage protection with a typical 32Vdc and a maximum of 35Vdc, and overload/short-circuit protection with a minimum of 17.9A and a maximum of 21A at load impedance. It is advised not to use the DC-UPS in parallel to increase output power, but paralleling two units for 1+1 redundancy is possible for higher system reliability. The output voltage is regulated at 22.5Vdc in buffer mode with a 23Vdc turn-ON. The efficiency is rated at 0.978 with a 24Vdc input, and the rated power is 360W at 24Vdc and 240W/360W in buffer mode. Power dissipation/losses are 2.9W with a 24Vdc input at 0A output current and 5.5W at 10A output current. Ripple is maintained at 20mVpp across a frequency range of 20Hz to 20MHz at 50Ω. The electrical durability is rated at 137400 hours at 40°C with a 10A output and 24Vdc input, equivalent to 15 years or 131400 hours at both 40°C with a 5A output and 25°C with a 10A output. | Puls | $680.00 | 1 in stock | 24 hours |
| ML60.241 PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF. | Puls | $130.00 | 1 in stock | 24 hours |
| CP10.241-C1 PULS CP10.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39mm. The unit consumes 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A at 230Vac input and 7A at 120Vac input. It offers an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The CP10.241-C1 features IP20 degree of protection and is resistant to harsh environments due to its conformal coated PCB. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and a rise time of 30ms to 160ms depending on the load capacitance. It includes protection functions such as output overvoltage, overload/short-circuit, and over-temperature protection with automatic restart. The power supply supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability ranges from 39,000 to 499,000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit is part of the CP-series, featuring ATEX approval, conformal coating, 20% power reserve, and a DC-OK relay contact output. It uses screw-clamp connections and accepts a supply voltage of 88Vdc-180Vdc or 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc in temperatures up to +45°C, decreasing to 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input. | Puls | $420.00 | 1 in stock | 24 hours |
| CS5.241 PULS CS5.241 AC/DC Power Supply, 5A, 120W, 24DC output, 100-120 VAC input | Puls | $265.00 | 1 in stock | 24 hours |
| CP10.241-S2 PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input. | Puls | $370.00 | 4 in stock | 24 hours |
| CPS20.121 PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms. | Puls | $665.00 | 1 in stock | 24 hours |
| QS10.121 PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range. | Puls | $555.00 | 1 in stock | 24 hours |
| ML15.051 PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF. | Puls | $95.00 | 1 in stock | 24 hours |
| CP5.481 PULS CP5.481 is a DIN rail mounting power supply unit with an aluminium housing, designed for a wide range of industrial applications. It operates within an ambient air temperature range of -10 to +70°C, with linear derating between +60 and +70°C. The unit consumes current at varying rates depending on the input voltage, including 0.61A at 230Vac, 1.09A at 120Vac, and 1.31A at 100Vac for full output, among other specified rates. It features an IP20 degree of protection and achieves an efficiency of up to 93.5% at 230Vac input. The dimensions are specified as 32mm in width, 124mm in height, and 102mm in depth. The CP5.481 includes a time delay for start-up and rise, with specific values provided for different conditions. It offers protection functions such as output overvoltage and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 63V. Power dissipation losses are detailed for various input conditions, and the output stage capacitance is 750µF. Electrical durability is extensively detailed, highlighting operational hours under various conditions and temperatures. The ripple voltage is specified under different load conditions. This AC/DC power supply unit is part of the CP-series, designed with NEC Class 2, a 20% power reserve, and includes a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. It supports a wide range of supply voltages both in AC and DC, with detailed specifications for rated current and power across different temperatures, and an adjustable output voltage range of 48-56Vdc. The hold time after power loss is also specified for different input conditions. | Puls | $280.00 | 3 in stock | 24 hours |
