DC/DC Converters
DC-DC Converters convert a direct current voltage input into a different direct current voltage output
All categories
DC/DC Converters
DC-DC Converters convert a direct current voltage input into a different direct current voltage output
PULS CD5.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.75A current at a 48Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 0.8A. It boasts an efficiency of 0.903 at a 24Vdc, 5A input. The dimensions are W32mm x H124mm x D102mm. It includes a 670ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.242 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation losses are 12.9W at a 48Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 39,000 to 181,000 hours depending on conditions. The ripple is 50mVpp from 20Hz to 20MHz. This PSU/DC/DC-Converter supports a 20% power reserve and is designed with ATEX approval for galvanic isolation. It features screw-clamp connections and accepts a supply voltage of 39Vdc-57Vdc (48Vdc nominal), with a short-term tolerance down to 30.5-36Vdc for up to 60 seconds. The rated current is 6A at 24Vdc in temperatures up to 45°C, with derating applied up to +70°C. The rated power is 144W in ambient temperatures less than 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and it has a hold time of 5.6ms at a 48Vdc input.
Quick Quote
PULS CD5.241-L1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. This unit consumes 4.25A current at a 24Vdc input to deliver a full 24Vdc output, with a peak inrush current of 1.6A. It boasts an efficiency of 0.905 at 24Vdc 3.8A input. The dimensions are W32mm x H124mm x D102mm. It includes a 650ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.241-L1 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or 1+1 redundancy. It is capable of handling back-feeding loads up to 30V without malfunctioning, whether the power supply is on or off. The unit features reverse polarity protection, with power dissipation losses of 9.7W under a 24Vdc input and 24V output load at 3.8A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 134,000 to 378,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This PSU/DC/DC-Converter includes a 20% power reserve, is designed with NEC Class 2 and ATEX approval for galvanic isolation, and utilizes spring-clamp connections for connectivity. It supports a supply voltage range of 14.4Vdc to 32.4Vdc, with a 36Vdc absolute maximum continuous input voltage. The rated current is 3.8A at 24Vdc, with a rated power of 144W in ambient temperatures less than 45°C and 120W in temperatures less than 60°C. The output voltage is a fixed 24Vdc with a 500mV turn-ON overshoot, and it has a 6ms hold time at 24Vdc input.
Quick Quote
PULS CPS20.241-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W65mm x H124mm x D127mm. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65 mm. The unit has a current consumption of 1.69A with a 300Vdc input for a full 24Vdc output, 4.68A with a 110Vdc input for a full 24Vdc output, and can handle peak inrush currents of up to 10A at 300Vdc input and 13A at 110Vdc input. It boasts an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input, with a degree of protection rated at IP20. The CPS20.241-D1 features a time delay of 850ms for start-up and a rise time of 85ms under nominal input with a constant full current load without load capacitance, and 150ms with 20mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 7000 µF. Its electrical durability varies based on conditions, with up to 549000 hours at 25°C and 10A output with a 1AC 300Vdc input. The ripple is specified at 50mVpp (20Hz...20MHz; 50Ω). This power supply unit also features a 20% power reserve, ATEX approval for galvanic isolation, and screw-clamp connections for installation. It supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with specific turn-ON and shutdown parameters. The rated current is 20A at 24Vdc with a power derating above 60°C to 70°C, and it offers a rated power of 576W under PowerBoost at ambient temperatures below 45°C, and 480W below 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot, and it provides a hold time of 26ms at both 110/300Vdc input.
Quick Quote
PULS CD5.241-S1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.902 under a 24Vdc, 5A input condition. The dimensions of this power supply unit are W32mm x H124mm x D102mm. It includes a 290ms start-up delay and a 520ms rise time under nominal input with a constant full current load. The CD5.241-S1 is equipped with protection functions including output overvoltage protection, low input voltage signalling via relay contact, and short-circuit current protection. It supports series or parallel operation for increased output power or 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation/losses are 13.3 W under a 24Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 33,000 to 180,000 hours depending on the operating conditions. Ripple is maintained at 50mVpp. This PSU/DC-DC Converter offers a 20% power reserve and features ATEX approval, galvanic isolation, and a DC-OK relay contact output. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 6A at 24Vdc in temperatures up to 45°C, and a rated power of 144W in ambient temperatures less than 45°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.
Quick Quote

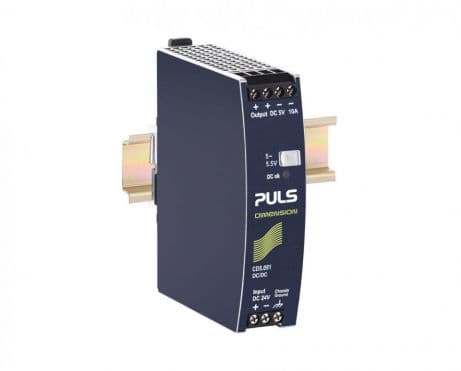

PULS CD5.051 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.6A current at a 24Vdc input for a full 5Vdc output at 10A, with a peak inrush current of 1.6A. It offers an efficiency of 0.815 at 5.1Vdc 10A input and is protected by an IP20 degree of protection. The CD5.051 includes a 420ms start-up delay, a 300ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 350ms rise time with an 8mF load capacitance. It features output overvoltage protection, overload protection, no-load and short-circuit protection with a short-circuit current of min. 12A to max. 20A, over-temperature protection with automatic restart, and allows for series/parallel operation for increased output power or redundancy. The unit is resistant to back-feeding loads up to 5.6V, includes reverse polarity protection, and has a power dissipation/loss of 11.5W at a 24Vdc input with a 5.1V output load at 10A. The output stage capacitance is 16000 µF, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. It functions as a power supply unit or DC/DC-converter with a 20% power reserve, belonging to the CD-series and designed with galvanic isolation and screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc (24Vdc nominal) and 14.4-18Vdc for a maximum of 60 seconds. It has a rated current of 12A at 5Vdc from -25 to +45°C and 10A at 5Vdc from +45 to +60°C, with a derating of 1.25W from +60 to +70°C. The rated power is 60W at -25 to +45°C and 50W at -25 to +60°C, with an adjustable output voltage of 5Vdc to 5.5Vdc and a 250mV turn-ON overshoot. The hold time is 10ms at a 24Vdc input.
Quick Quote

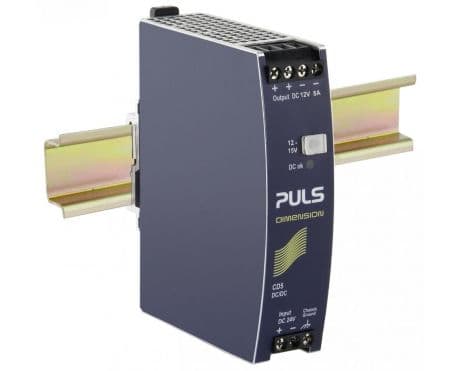

PULS CD5.121 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a current consumption of 4.6A with a 24Vdc input for a full 12Vdc output, and a peak inrush current of 1.6A. The unit boasts an efficiency of 0.882 under a 12Vdc 8A input and has dimensions of W32mm x H124mm x D102mm. It includes a 420ms start-up delay and a 210ms rise time under nominal input with a constant full current load. The CD5.121 offers protection functions such as output overvoltage protection, short-circuit current protection, and allows for series/parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 16V and includes reverse polarity protection. Power dissipation/losses are 12.8W with a 24Vdc input and 12V output load at 8A, and the output stage capacitance is 6500µF. Its electrical durability is rated at 173000 hours at 40°C with a 4A output. The ripple is 75mVpp, and it features screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 9.6A at 12Vdc up to 45°C and 8A at 12Vdc up to 60°C, including a derating above 60°C. The rated power is 116W in ambient temperatures less than 45°C and 96W in temperatures less than 60°C. The output voltage is adjustable between 12Vdc and 15Vdc, with a 500mV turn-ON overshoot and a hold time of 7ms.
Quick Quote
PULS CD5.243 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32mm. The unit consumes 9.2A current at 12Vdc input to deliver a full 24Vdc output at 4A, with a peak inrush current of 1.3A. It boasts an efficiency of 0.877 under a 24Vdc, 4A input. The dimensions are W32mm x H124mm x D102mm. It includes a 450ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.243 offers protection against output overvoltage, short circuits, and allows for series or parallel operation to increase output power or achieve 1+1 redundancy for higher system availability. It is capable of handling back-feeding loads up to 30V without malfunctioning, regardless of the power supply's operational state. The unit features reverse polarity protection, with power dissipation losses of 13.5W under a 12Vdc input and 24V output load at 4A. The output stage capacitance is 2200µF, and it has an electrical durability ranging from 33,000 to 206,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz frequency range. This PSU/DC/DC-Converter includes a 20% power reserve, is part of the CD-series, and comes with ATEX approval and galvanic isolation. Connections are made via screw-clamp connections. The supply voltage ranges from 11Vdc to 16.2Vdc, with a rated current of 4.8A at 24Vdc in temperatures up to 45°C, and lower currents as the temperature increases up to 70°C. The rated power is 116W in ambient temperatures less than 45°C and 96W for temperatures less than 60°C. The output voltage is adjustable between 23-28Vdc, with a 300mV turn-ON overshoot and a hold time of 3ms.
Quick Quote
PULS CD10.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W42mm x H124mm x D117mm. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 18Vdc to 35Vdc, with a nominal 24Vdc. The unit provides an adjustable output voltage of 23-28Vdc, including a 250mV turn-ON overshoot, and offers a rated current of 12A at 24Vdc in temperatures up to 45°C, 10A up to 60°C, and 7.5A up to 70°C, with a power derating from 6W at 60°C to 70°C. It features a 200ms start-up delay and a 200ms rise time under nominal input with a constant full current load and 0mF load capacitance. The CD10.241 has an efficiency of 0.942 at 24Vdc 10A input and 0.937 at 24Vdc 12A input. It includes protection functions such as output overvoltage protection, short-circuit protection, back-feeding load protection, and reverse polarity protection. The unit's power dissipation/losses are 14.7W at a 24Vdc input with a 24V output load at 10A, and 6.8W at 5A. It has an output stage capacitance of 4300µF and an electrical durability ranging from 56000 hours to 844000 hours, depending on the operating conditions. The CD10.241 also features a ripple of 50mVpp (20Hz to 20MHz; 50Ω) and includes screw-clamp connections for installation.
Quick Quote
PULS CD10.482 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 39Vdc to 57Vdc, with a nominal 48Vdc. The unit provides an adjustable output voltage of 48Vdc to 56Vdc, including a 250mV turn-ON overshoot, and offers a rated current of 6A at 48Vdc in temperatures up to 45°C, 5A up to 60°C, and 3.8A at 70°C, with a power derating from 60°C to 70°C. It features a net width of 42mm and dimensions of W42mm x H124mm x D117mm. The CD10.482 has a current consumption of 5.3A with a 48Vdc input/output at 5A, 7A with a 36Vdc input for the same output, and a peak inrush current of 10A, independent of temperature. It achieves an efficiency of 0.951 with a 48Vdc 5A input and 0.949 with a 6A input. The unit includes a 350ms start-up delay and a 50ms rise time under nominal input with a constant full current load. It offers protection against output overvoltage, short circuits with a continuous current of max. 7A, and allows for series or parallel operation for increased output power or redundancy. The power dissipation/losses are 12.4W for a 48Vdc input/output load at 5A and 6.7W at 2.5A. The output stage capacitance is 1650µF, with a ripple of 100mVpp across 20Hz to 20MHz at 50Ω. It features screw-clamp connections, is designed with galvanic isolation, and includes reverse polarity protection.
Quick Quote
PULS CD5.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.903 at 24Vdc with a 5A input. The CD5.241 includes a 650ms start-up delay and an 800ms rise time under nominal input with a constant full current load and 0mF load capacitance. It offers protection functions such as output overvoltage protection, short-circuit protection with a minimum of 7A and a maximum of 10A continuous current, and allows for series or parallel operation for increased output power or 1+1 redundancy. The unit is capable of handling back-feeding loads up to 30V without malfunctioning, whether powered on or off, and includes reverse polarity protection. Power dissipation/losses are 12.9W under a 24Vdc input with a 24V output load at 5A, and 6.2W at 2.5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 37,000 to 185,000 hours depending on the operating conditions. It features a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This PSU/DC/DC-Converter offers a 20% power reserve, is part of the CD-series, and includes ATEX approval for galvanic isolation. Connection is facilitated via screw-clamp connections, with a supply voltage range of 18Vdc-32.4Vdc (24Vdc nominal) and 14.4-18Vdc for up to 60s. The rated current is 6A at 24Vdc from -25 to +45°C and 5A at +45 to +60°C, with a derating to 3W from +60 to +70°C. The rated power is 144W at ambient temperatures below 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input.
Quick Quote
| Item | Manufacturer | Price | Stock | Delivery | |
|---|---|---|---|---|---|
| CD5.242 PULS CD5.242 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.75A current at a 48Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 0.8A. It boasts an efficiency of 0.903 at a 24Vdc, 5A input. The dimensions are W32mm x H124mm x D102mm. It includes a 670ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.242 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation losses are 12.9W at a 48Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 39,000 to 181,000 hours depending on conditions. The ripple is 50mVpp from 20Hz to 20MHz. This PSU/DC/DC-Converter supports a 20% power reserve and is designed with ATEX approval for galvanic isolation. It features screw-clamp connections and accepts a supply voltage of 39Vdc-57Vdc (48Vdc nominal), with a short-term tolerance down to 30.5-36Vdc for up to 60 seconds. The rated current is 6A at 24Vdc in temperatures up to 45°C, with derating applied up to +70°C. The rated power is 144W in ambient temperatures less than 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and it has a hold time of 5.6ms at a 48Vdc input. | Puls | $435.00 | Quick Quote | |
| CD5.241-L1 PULS CD5.241-L1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. This unit consumes 4.25A current at a 24Vdc input to deliver a full 24Vdc output, with a peak inrush current of 1.6A. It boasts an efficiency of 0.905 at 24Vdc 3.8A input. The dimensions are W32mm x H124mm x D102mm. It includes a 650ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.241-L1 offers protection against output overvoltage, short circuits, and allows for series or parallel operation for increased output power or 1+1 redundancy. It is capable of handling back-feeding loads up to 30V without malfunctioning, whether the power supply is on or off. The unit features reverse polarity protection, with power dissipation losses of 9.7W under a 24Vdc input and 24V output load at 3.8A. The output stage capacitance is 2200 µF. Its electrical durability ranges from 134,000 to 378,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This PSU/DC/DC-Converter includes a 20% power reserve, is designed with NEC Class 2 and ATEX approval for galvanic isolation, and utilizes spring-clamp connections for connectivity. It supports a supply voltage range of 14.4Vdc to 32.4Vdc, with a 36Vdc absolute maximum continuous input voltage. The rated current is 3.8A at 24Vdc, with a rated power of 144W in ambient temperatures less than 45°C and 120W in temperatures less than 60°C. The output voltage is a fixed 24Vdc with a 500mV turn-ON overshoot, and it has a 6ms hold time at 24Vdc input. | Puls | $485.00 | Quick Quote | |
| CPS20.241-D1 PULS CPS20.241-D1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W65mm x H124mm x D127mm. It operates within an ambient air temperature range of -25 to +70°C and offers a net width of 65 mm. The unit has a current consumption of 1.69A with a 300Vdc input for a full 24Vdc output, 4.68A with a 110Vdc input for a full 24Vdc output, and can handle peak inrush currents of up to 10A at 300Vdc input and 13A at 110Vdc input. It boasts an efficiency of 0.946 at 300Vdc input and 0.931 at 100Vdc input, with a degree of protection rated at IP20. The CPS20.241-D1 features a time delay of 850ms for start-up and a rise time of 85ms under nominal input with a constant full current load without load capacitance, and 150ms with 20mF load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. The unit's power dissipation/losses are 27.4 W, and it has an output stage capacitance of 7000 µF. Its electrical durability varies based on conditions, with up to 549000 hours at 25°C and 10A output with a 1AC 300Vdc input. The ripple is specified at 50mVpp (20Hz...20MHz; 50Ω). This power supply unit also features a 20% power reserve, ATEX approval for galvanic isolation, and screw-clamp connections for installation. It supports a supply voltage range of 88Vdc-360Vdc and an AC supply voltage with specific turn-ON and shutdown parameters. The rated current is 20A at 24Vdc with a power derating above 60°C to 70°C, and it offers a rated power of 576W under PowerBoost at ambient temperatures below 45°C, and 480W below 60°C. The output voltage is adjustable between 24Vdc and 28Vdc, with a 200mV turn-ON overshoot, and it provides a hold time of 26ms at both 110/300Vdc input. | Puls | $675.00 | Quick Quote | |
| CD5.241-S1 PULS CD5.241-S1 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.902 under a 24Vdc, 5A input condition. The dimensions of this power supply unit are W32mm x H124mm x D102mm. It includes a 290ms start-up delay and a 520ms rise time under nominal input with a constant full current load. The CD5.241-S1 is equipped with protection functions including output overvoltage protection, low input voltage signalling via relay contact, and short-circuit current protection. It supports series or parallel operation for increased output power or 1+1 redundancy for higher system availability. The unit is resistant to back-feeding loads up to 30V and includes reverse polarity protection. Power dissipation/losses are 13.3 W under a 24Vdc input with a 24V output load at 5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 33,000 to 180,000 hours depending on the operating conditions. Ripple is maintained at 50mVpp. This PSU/DC-DC Converter offers a 20% power reserve and features ATEX approval, galvanic isolation, and a DC-OK relay contact output. Connection is facilitated through spring-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 6A at 24Vdc in temperatures up to 45°C, and a rated power of 144W in ambient temperatures less than 45°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input. | Puls | $455.00 | Quick Quote | |
| CD5.051 PULS CD5.051 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 2.6A current at a 24Vdc input for a full 5Vdc output at 10A, with a peak inrush current of 1.6A. It offers an efficiency of 0.815 at 5.1Vdc 10A input and is protected by an IP20 degree of protection. The CD5.051 includes a 420ms start-up delay, a 300ms rise time at nominal input with a constant full current load and 0mF load capacitance, and a 350ms rise time with an 8mF load capacitance. It features output overvoltage protection, overload protection, no-load and short-circuit protection with a short-circuit current of min. 12A to max. 20A, over-temperature protection with automatic restart, and allows for series/parallel operation for increased output power or redundancy. The unit is resistant to back-feeding loads up to 5.6V, includes reverse polarity protection, and has a power dissipation/loss of 11.5W at a 24Vdc input with a 5.1V output load at 10A. The output stage capacitance is 16000 µF, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. It functions as a power supply unit or DC/DC-converter with a 20% power reserve, belonging to the CD-series and designed with galvanic isolation and screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc (24Vdc nominal) and 14.4-18Vdc for a maximum of 60 seconds. It has a rated current of 12A at 5Vdc from -25 to +45°C and 10A at 5Vdc from +45 to +60°C, with a derating of 1.25W from +60 to +70°C. The rated power is 60W at -25 to +45°C and 50W at -25 to +60°C, with an adjustable output voltage of 5Vdc to 5.5Vdc and a 250mV turn-ON overshoot. The hold time is 10ms at a 24Vdc input. | Puls | $425.00 | Quick Quote | |
| CD5.121 PULS CD5.121 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a current consumption of 4.6A with a 24Vdc input for a full 12Vdc output, and a peak inrush current of 1.6A. The unit boasts an efficiency of 0.882 under a 12Vdc 8A input and has dimensions of W32mm x H124mm x D102mm. It includes a 420ms start-up delay and a 210ms rise time under nominal input with a constant full current load. The CD5.121 offers protection functions such as output overvoltage protection, short-circuit current protection, and allows for series/parallel operation for increased output power or redundancy. It is resistant to back-feeding loads up to 16V and includes reverse polarity protection. Power dissipation/losses are 12.8W with a 24Vdc input and 12V output load at 8A, and the output stage capacitance is 6500µF. Its electrical durability is rated at 173000 hours at 40°C with a 4A output. The ripple is 75mVpp, and it features screw-clamp connections. The supply voltage ranges from 18Vdc to 32.4Vdc, with a rated current of 9.6A at 12Vdc up to 45°C and 8A at 12Vdc up to 60°C, including a derating above 60°C. The rated power is 116W in ambient temperatures less than 45°C and 96W in temperatures less than 60°C. The output voltage is adjustable between 12Vdc and 15Vdc, with a 500mV turn-ON overshoot and a hold time of 7ms. | Puls | $445.00 | Quick Quote | |
| CD5.243 PULS CD5.243 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32mm. The unit consumes 9.2A current at 12Vdc input to deliver a full 24Vdc output at 4A, with a peak inrush current of 1.3A. It boasts an efficiency of 0.877 under a 24Vdc, 4A input. The dimensions are W32mm x H124mm x D102mm. It includes a 450ms start-up delay and an 80ms rise time under nominal input with a constant full current load. The CD5.243 offers protection against output overvoltage, short circuits, and allows for series or parallel operation to increase output power or achieve 1+1 redundancy for higher system availability. It is capable of handling back-feeding loads up to 30V without malfunctioning, regardless of the power supply's operational state. The unit features reverse polarity protection, with power dissipation losses of 13.5W under a 12Vdc input and 24V output load at 4A. The output stage capacitance is 2200µF, and it has an electrical durability ranging from 33,000 to 206,000 hours depending on the operating conditions. The ripple is maintained at 50mVpp across a 20Hz to 20MHz frequency range. This PSU/DC/DC-Converter includes a 20% power reserve, is part of the CD-series, and comes with ATEX approval and galvanic isolation. Connections are made via screw-clamp connections. The supply voltage ranges from 11Vdc to 16.2Vdc, with a rated current of 4.8A at 24Vdc in temperatures up to 45°C, and lower currents as the temperature increases up to 70°C. The rated power is 116W in ambient temperatures less than 45°C and 96W for temperatures less than 60°C. The output voltage is adjustable between 23-28Vdc, with a 300mV turn-ON overshoot and a hold time of 3ms. | Puls | $435.00 | Quick Quote | |
| CD10.241 PULS CD10.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W42mm x H124mm x D117mm. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 18Vdc to 35Vdc, with a nominal 24Vdc. The unit provides an adjustable output voltage of 23-28Vdc, including a 250mV turn-ON overshoot, and offers a rated current of 12A at 24Vdc in temperatures up to 45°C, 10A up to 60°C, and 7.5A up to 70°C, with a power derating from 6W at 60°C to 70°C. It features a 200ms start-up delay and a 200ms rise time under nominal input with a constant full current load and 0mF load capacitance. The CD10.241 has an efficiency of 0.942 at 24Vdc 10A input and 0.937 at 24Vdc 12A input. It includes protection functions such as output overvoltage protection, short-circuit protection, back-feeding load protection, and reverse polarity protection. The unit's power dissipation/losses are 14.7W at a 24Vdc input with a 24V output load at 10A, and 6.8W at 5A. It has an output stage capacitance of 4300µF and an electrical durability ranging from 56000 hours to 844000 hours, depending on the operating conditions. The CD10.241 also features a ripple of 50mVpp (20Hz to 20MHz; 50Ω) and includes screw-clamp connections for installation. | Puls | $505.00 | Quick Quote | |
| CD10.482 PULS CD10.482 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 39Vdc to 57Vdc, with a nominal 48Vdc. The unit provides an adjustable output voltage of 48Vdc to 56Vdc, including a 250mV turn-ON overshoot, and offers a rated current of 6A at 48Vdc in temperatures up to 45°C, 5A up to 60°C, and 3.8A at 70°C, with a power derating from 60°C to 70°C. It features a net width of 42mm and dimensions of W42mm x H124mm x D117mm. The CD10.482 has a current consumption of 5.3A with a 48Vdc input/output at 5A, 7A with a 36Vdc input for the same output, and a peak inrush current of 10A, independent of temperature. It achieves an efficiency of 0.951 with a 48Vdc 5A input and 0.949 with a 6A input. The unit includes a 350ms start-up delay and a 50ms rise time under nominal input with a constant full current load. It offers protection against output overvoltage, short circuits with a continuous current of max. 7A, and allows for series or parallel operation for increased output power or redundancy. The power dissipation/losses are 12.4W for a 48Vdc input/output load at 5A and 6.7W at 2.5A. The output stage capacitance is 1650µF, with a ripple of 100mVpp across 20Hz to 20MHz at 50Ω. It features screw-clamp connections, is designed with galvanic isolation, and includes reverse polarity protection. | Puls | $535.00 | Quick Quote | |
| CD5.241 PULS CD5.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing and dimensions of W32mm x H124mm x D102mm. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 32 mm. The unit consumes 5.5A current at a 24Vdc input to deliver a full 24Vdc output at 5A, with a peak inrush current of 1.6A. It boasts an efficiency of 0.903 at 24Vdc with a 5A input. The CD5.241 includes a 650ms start-up delay and an 800ms rise time under nominal input with a constant full current load and 0mF load capacitance. It offers protection functions such as output overvoltage protection, short-circuit protection with a minimum of 7A and a maximum of 10A continuous current, and allows for series or parallel operation for increased output power or 1+1 redundancy. The unit is capable of handling back-feeding loads up to 30V without malfunctioning, whether powered on or off, and includes reverse polarity protection. Power dissipation/losses are 12.9W under a 24Vdc input with a 24V output load at 5A, and 6.2W at 2.5A. The output stage capacitance is 2200 µF, and the electrical durability ranges from 37,000 to 185,000 hours depending on the operating conditions. It features a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This PSU/DC/DC-Converter offers a 20% power reserve, is part of the CD-series, and includes ATEX approval for galvanic isolation. Connection is facilitated via screw-clamp connections, with a supply voltage range of 18Vdc-32.4Vdc (24Vdc nominal) and 14.4-18Vdc for up to 60s. The rated current is 6A at 24Vdc from -25 to +45°C and 5A at +45 to +60°C, with a derating to 3W from +60 to +70°C. The rated power is 144W at ambient temperatures below 45°C and 120W below 60°C. The output voltage is adjustable between 23-28Vdc, with a 500mV turn-ON overshoot, and a hold time of 6ms at 24Vdc input. | Puls | $385.00 | Quick Quote | |
