CP10.241-C1 Puls AC/DC Power Supplies

CP10.241-C1 on Powermatic Associates
Puls

Part#:CP10.241-C1

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Mar 12, 2025

Product description

PULS CP10.241-C1 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39mm. The unit consumes 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A at 230Vac input and 7A at 120Vac input. It offers an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The CP10.241-C1 features IP20 degree of protection and is resistant to harsh environments due to its conformal coated PCB. Its dimensions are W39mm x H124mm x D117mm. The unit has a start-up delay of 240-300ms and a rise time of 30ms to 160ms depending on the load capacitance. It includes protection functions such as output overvoltage, overload/short-circuit, and over-temperature protection with automatic restart. The power supply supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It can handle back-feeding loads up to 35V without malfunctioning. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability ranges from 39,000 to 499,000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit is part of the CP-series, featuring ATEX approval, conformal coating, 20% power reserve, and a DC-OK relay contact output. It uses screw-clamp connections and accepts a supply voltage of 88Vdc-180Vdc or 85Vac-264Vac, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc in temperatures up to +45°C, decreasing to 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    124 mm
  • Width
    39 mm
  • Depth
    117 mm
  • Current Output
    10 A
  • Current Input
    2.15 A
  • Power
    240 W
  • Efficiency
    95.2 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CP10.241-C1 Related Documents

Datasheet.pdf

Manufacturer warranty

CP10.241-C1 Puls

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

1

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Puls

Powermatic Associates is an authorized Puls distributor, proudly offering their innovative and reliable industrial power supply solutions. Puls is a renowned manufacturer specializing in high-quality DIN rail power supplies, engineered to deliver optimal performance and efficiency across various demanding applications. Their product portfolio includes single-phase and three-phase power supplies, DC-UPS systems, redundancy modules, and buffer modules, all designed with cutting-edge technology to ensure maximum reliability and energy efficiency. Puls power supplies are known for their compact design, which saves valuable space in control cabinets, and their superior efficiency ratings, which reduce energy consumption and operational costs. These power supplies also feature robust construction and advanced thermal management, ensuring they perform effectively even under challenging environmental conditions. With wide input voltage ranges and numerous output voltages, Puls products are versatile and adaptable to various industrial sectors, including manufacturing, automation, and process control. By partnering with Puls, Powermatic Associates leverages this outstanding quality and engineering excellence to offer our customers unparalleled power solutions that enhance system reliability and uptime. The modularity and scalability of Puls products allow them to be easily integrated into existing systems, providing flexibility for future expansions. This makes them ideal for customers looking to optimize their infrastructure with minimal disruption. Furthermore, Puls provides comprehensive support and resources, aiding customers in selecting the right power supply solutions tailored to their specific needs. As part of our partnership, Powermatic Associates extends this expert guidance, ensuring seamless integration and optimal performance of Puls products in your operations. Our dedicated team offers valuable insights and technical support, helping you harness the full potential of Puls's innovative technologies. With Powermatic Associates, you benefit not only from the superior quality of Puls products but also from our commitment to delivering exceptional service and rapid delivery. Our extensive inventory ensures that you receive the necessary components promptly, minimizing downtime and enhancing productivity. By choosing Powermatic Associates and Puls, you invest in a partnership focused on driving efficiency and success in your industrial applications.

About the Product Category

AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

AC/DC Power Supplies

Relevant products

CP10.241-S2 on Powermatic Associates

CP10.241-S2

Verified stock: 4

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

Puls

CP10.481 on Powermatic Associates

CP10.481

Verified stock: 2

PULS CP10.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It features a net width of 39 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.955 at 230Vac input, 0.938 at 120Vac input, and 0.93 at 100Vac input. The dimensions of the CP10.481 are W39mm x H124mm x D117mm. It includes a time delay of 240-300ms for start-up and a rise time of 63ms under nominal input with a constant full current load and 0mF load capacitance, extending to 210ms with 5mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output voltages or power, as well as 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 12.3W at full output load with 230Vac input and 17.2W with 120Vac input. The output stage capacitance is 960 µF. Electrical durability is rated at various hours depending on the operating conditions, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, includes ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific turn-on and shutdown voltages. The rated current is 5.4A at 48Vdc with a derating above 60°C. It is suitable for single-phase (1AC) or DC networks, offering a rated power of 259W and an adjustable output voltage of 48Vdc-56Vdc. The hold time is 34ms at 120/230Vac input.

Puls

CP10.241-60 on Powermatic Associates

CP10.241-60

Verified stock: 0

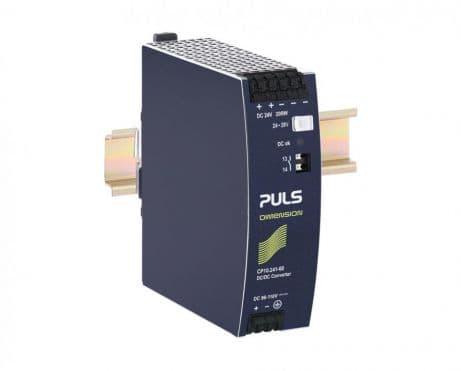

PULS CP10.241-60 is a power supply unit designed for DIN rail mounting with an aluminium housing. It operates within an ambient air temperature range of -40 to +70°C and has a net width of 39 mm. The unit features a current consumption of 8A peak max. inrush at both 110Vdc and 96Vdc input. It boasts an efficiency of 0.945 at 110Vdc input and 0.943 at 960Vdc input, with dimensions of W39mm x H124mm x D117mm. The CP10.241-60 has a time delay of 600-700ms for start-up and a rise time of 45ms to 90ms depending on the load capacitance. It includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation for increased output voltages or power. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 11.6 W and 12.1 W for 110Vdc and 96Vdc inputs, respectively, at full output load. The output stage capacitance is 4400 µF. Electrical durability ranges from 112000 to 549000 hours depending on the operating conditions. The ripple is 50mVpp across a 20Hz to 20MHz range. This PSU/DC-DC Converter from the CP-series is designed for railway applications and features a DC-OK relay contact output, spring-clamp connections, and a supply voltage range of 67Vdc-154Vdc. It provides a rated current of 8.3A at 24Vdc, operates on a DC network, and offers a rated power of 200W. The output voltage is adjustable from 24Vdc to 28Vdc with a 200mV turn-ON overshoot, and it has a hold time of 34ms.
