CP10.481 Puls AC/DC Power Supplies

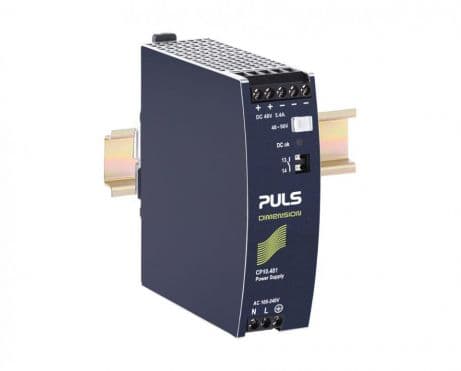

Puls CP10.481 PULS CP10.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It features a net width of 39 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.955 at 230Vac input, 0.938 at 120Vac input, and 0.93 at 100Vac input. The dimensions of the CP10.481 are W39mm x H124mm x D117mm. It includes a time delay of 240-300ms for start-up and a rise time of 63ms under nominal input with a constant full current load and 0mF load capacitance, extending to 210ms with 5mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output voltages or power, as well as 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 12.3W at full output load with 230Vac input and 17.2W with 120Vac input. The output stage capacitance is 960 µF. Electrical durability is rated at various hours depending on the operating conditions, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, includes ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific turn-on and shutdown voltages. The rated current is 5.4A at 48Vdc with a derating above 60°C. It is suitable for single-phase (1AC) or DC networks, offering a rated power of 259W and an adjustable output voltage of 48Vdc-56Vdc. The hold time is 34ms at 120/230Vac input.
Puls

Part#:CP10.481

Manufacturer:Puls

Product Lifecycle:Active

In-stock parts: 2

Nov 16, 2024

PULS CP10.481 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It features a net width of 39 mm and operates within an ambient air temperature range of -25 to +70°C. The unit has a current consumption of 11A peak max. inrush at 230Vac input and 7A peak max. inrush at 120Vac input. Its efficiency rates are 0.955 at 230Vac input, 0.938 at 120Vac input, and 0.93 at 100Vac input. The dimensions of the CP10.481 are W39mm x H124mm x D117mm. It includes a time delay of 240-300ms for start-up and a rise time of 63ms under nominal input with a constant full current load and 0mF load capacitance, extending to 210ms with 5mF load capacitance. The unit is equipped with protection functions including output overvoltage protection and overload/short-circuit protection, and supports series/parallel operation for increased output voltages or power, as well as 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 63V. Power dissipation/losses are 12.3W at full output load with 230Vac input and 17.2W with 120Vac input. The output stage capacitance is 960 µF. Electrical durability is rated at various hours depending on the operating conditions, with a ripple of 50mVpp across 20Hz to 20MHz at 50Ω. This AC/DC power supply unit, part of the CP-series, includes ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated through screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific turn-on and shutdown voltages. The rated current is 5.4A at 48Vdc with a derating above 60°C. It is suitable for single-phase (1AC) or DC networks, offering a rated power of 259W and an adjustable output voltage of 48Vdc-56Vdc. The hold time is 34ms at 120/230Vac input.

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at Powermatic Associates site. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the CP10.481 Puls price in the box on the right side or send a quick quote.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    124 mm
  • Width
    39 mm
  • Depth
    117 mm
  • Current Output
    5.4 A
  • Current Input
    2.32 A
  • Power
    260 W
  • Efficiency
    95.5 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents CP10.481 Specs

CP10.481 Datasheet

This item can ship within 24h!

Manufacturer warranty

$390.00

Stock:

2

Select Qty:

$390.00

$390.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
