ML60.241 Puls AC/DC Power Supplies

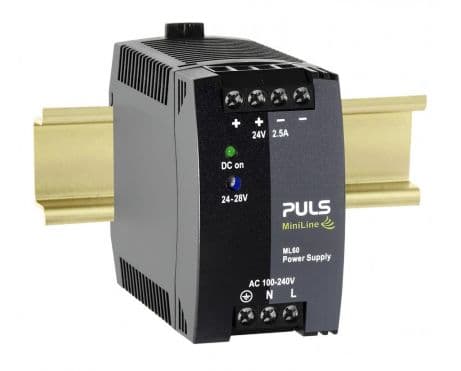

Puls ML60.241 PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF.
Puls

Part#:ML60.241

Manufacturer:Puls

Product Lifecycle:Active

In-stock parts: 1

Nov 16, 2024

PULS ML60.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit provides a rated current of 2.5A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 75Vac turn-ON voltage and a 65Vac shutdown voltage) and 88Vdc to 375Vdc for DC supply, accommodating single-phase (1AC) or DC networks. The ML60.241 measures 45mm in width, 75mm in height, and 91mm in depth, housed in a PC/ABS blend for durability. It delivers a rated power of 60W with an adjustable output voltage range of 24Vdc to 28Vdc, featuring a 200mV turn-ON overshoot. Protection is provided by an NTC for input inrush current limiting. Efficiency rates vary by input voltage, achieving 0.897 at 230Vac, 0.878 at 120Vac, and 0.865 at 100Vac. It has a maximum inrush current consumption of 16A at 120Vac input and 32A peak at 230Vac input. The unit exhibits a 170ms start-up delay, with rise times of 50-60ms under nominal input and constant full current load without load capacitance, and 110-140ms with 2.5mF load capacitance. Power dissipation is noted at 6.9W, and it has an electrical durability of at least 128,000 hours at +40°C. Ripple is maintained at 50mVpp across 20Hz to 20MHz at 50Ω, with an output stage capacitance of 1600µF.

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at Powermatic Associates site. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the ML60.241 Puls price in the box on the right side or send a quick quote.

Product Details

  • UL File No.
    E198865
  • Phase
    1 Phase
  • Height
    75 mm
  • Width
    45 mm
  • Depth
    91 mm
  • Current Output
    2.5 A
  • Current Input
    0.98 A
  • Power
    60 W
  • Efficiency
    89.7 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents ML60.241 Specs

ML60.241 Datasheet

This item can ship within 24h!

Manufacturer warranty

$130.00

Stock:

1

Select Qty:

$130.00

$130.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
