ML50.102
Puls
Product Lifecycle: Active
PULS ML50.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.2A at 12Vdc and features spring-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 65Vac turn-ON voltage and a 55Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc). The ML50.102 is housed in a PC / ABS blend, measures 45mm in width, 75mm in height, and 91mm in depth, and is suitable for single-phase (1AC) or DC networks. It offers a rated power of 50W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 400mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.9 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with a 32ms start-up delay and 48ms rise time under nominal conditions. Power dissipation/losses are rated at 6W, and the output stage features a ripple of 100mVpp across 20Hz to 20MHz at 50Ω, with a capacitance of 1600μF.

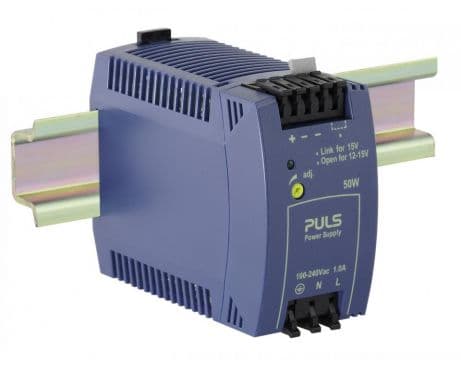

![ML50.102](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FML50.102.jpg&w=3840&q=75)
PULS ML50.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 4.2A at 12Vdc and features spring-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 65Vac turn-ON voltage and a 55Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values from 100Vdc to 250Vdc). The ML50.102 is housed in a PC / ABS blend, measures 45mm in width, 75mm in height, and 91mm in depth, and is suitable for single-phase (1AC) or DC networks. It offers a rated power of 50W and an adjustable output voltage range from 12Vdc to 15Vdc, with a 400mV turn-ON overshoot. Protection is provided by an NTC (input inrush current limiter), and the unit boasts an efficiency of 0.9 at 230Vac input. Maximum current consumption is 17A at 120Vac input and 35A peak at 230Vac input, with a 32ms start-up delay and 48ms rise time under nominal conditions. Power dissipation/losses are rated at 6W, and the output stage features a ripple of 100mVpp across 20Hz to 20MHz at 50Ω, with a capacitance of 1600μF.
Product details
- Depth91 mm
- Current Input1 A
- Width45 mm
- UL File No.E198865
- Height75 mm
- Phase1 Phase
- Power50 W
- Current Output4.2 A
- Efficiency90 %
