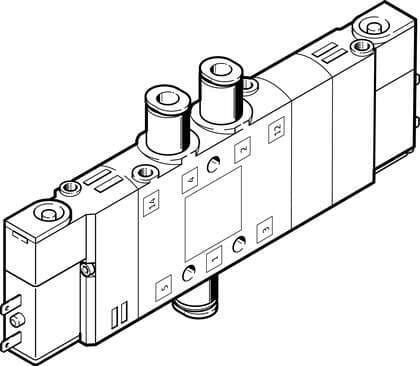

196896 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pneumatic working port
  QS-8
• Type code
  CPE14
• Type of control
  Pilot-controlled
• Switching time off
  42 ms
• Max. negative test pulse on 1 signal
  900 µs
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 2
  QS-8
• Pneumatic connection 5
  G1/8
• Housing material
  Die-cast aluminum
• Standard nominal flow rate
  650 l/min
• Reset method
  Mechanical spring
• Exhaust air function
  With flow control option
• Pilot air supply port
  Internal
• On switching time
  20 ms
• Coil characteristics
  24 V DC: 1.28 W
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot exhaust air port 84
  M3
• Note on materials
  RoHS-compliant
Maritime classification
See certificate
Width
14 mm
Operating pressure
3 bar ... 8 bar
Certification
c UL us - Recognized (OL)
Sealing principle
Soft
Flow direction
Non-reversible
Duty cycle
100% in combination with holding current reduction
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Electrical connection
2-pin
Pneumatic connection 1
QS-8
Pilot air port 12
M3
Seals material
NBR
Design
Piston gate valve
Nominal width
6 mm
Manual override
Detenting via accessory Non-detenting
Valve position ID
Label holder
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot exhaust air port 82
M3
Pneumatic connection 3
G1/8
Pneumatic connection 4
QS-8
Valve function
5/3, pressurized
Actuation type
Electrical
Operating voltage
24V DC
Degree of protection
IP65 as per IEC 60529
Mounting position
Any
Symbol
00991034
Max. positive test pulse with 0 signal
1200 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Type of mounting
With through-hole
Pilot air port 14
M3
