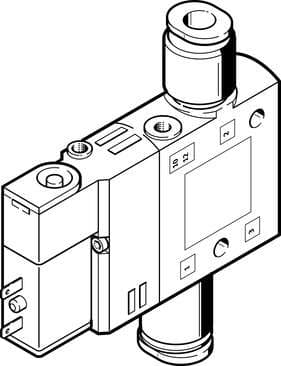

196891 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Width
  14 mm
• Operating pressure
  2.5 bar ... 8 bar
• Certification
  c UL us - Recognized (OL)
• Manual override
  Detenting via accessory Non-detenting
• Symbol
  00991656
• On switching time
  16 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Type of mounting
  With through-hole
• Pilot air port 12
  M3
• Reset method
  Pneumatic spring
• Nominal width
  6 mm
• Mounting position
  Any
• Switching time off
  27 ms
• Max. positive test pulse with 0 signal
  1200 µs
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 2
  QS-6
• Housing material
  Die-cast aluminum
• Maritime classification
  See certificate
Standard nominal flow rate
510 l/min
Design
Piston gate valve
Sealing principle
Soft
Flow direction
Non-reversible
Valve position ID
Label holder
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
2-pin
Note on materials
RoHS-compliant
Valve function
3/2, open, monostable
Pneumatic working port
QS-6
Degree of protection
IP65 as per IEC 60529
Pilot air supply port
Internal
Max. negative test pulse on 1 signal
900 µs
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 1
QS-6
Seals material
NBR
Actuation type
Electrical
Operating voltage
24V DC
Type code
CPE14
Type of control
Pilot-controlled
Duty cycle
100% in combination with holding current reduction
Coil characteristics
24 V DC: 1.28 W
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 82
M3
Pneumatic connection 3
G1/8

Related documents 196891 Specs
