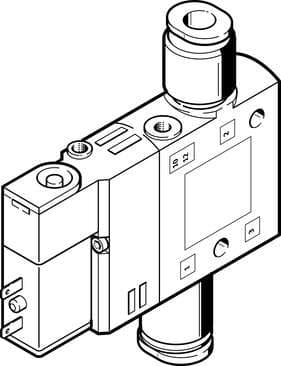

196887 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Operating pressure
  2.5 bar ... 8 bar
• Lap
  Overlap
• Pneumatic working port
  QS-6
• Certification
  c UL us - Recognized (OL)
• Symbol
  00991655
• Flow direction
  Non-reversible
• Sealing principle
  Soft
• Standard nominal flow rate
  510 l/min
• Reset method
  Pneumatic spring
• Degree of protection
  IP65 as per IEC 60529
• Manual override
  Detenting via accessory Non-detenting
• Max. positive test pulse with 0 signal
  1200 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 50 °C
• Pilot exhaust air port 82
  M3
• Pneumatic connection 3
  G1/8
• Valve function
  3/2, closed, monostable
• Width
  14 mm
• Design
  Piston gate valve
Nominal width
6 mm
Mounting position
Any
Valve position ID
Label holder
Duty cycle
100% in combination with holding current reduction
Coil characteristics
24 V DC: 1.28 W
Maritime classification
See certificate
Operating voltage
24V DC
Type code
CPE14
Pilot air supply port
Internal
On switching time
16 ms
Permissible voltage fluctuations
-15 % / +10 %
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
M3
Housing material
Die-cast aluminum
Type of control
Pilot-controlled
Switching time off
27 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Pneumatic connection 2
QS-6
Note on materials
RoHS-compliant
Max. negative test pulse on 1 signal
900 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
2-pin
Pneumatic connection 1
QS-6
Seals material
NBR

Related documents 196887 Specs
