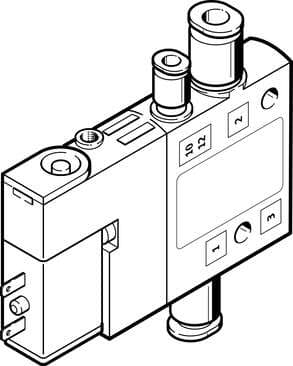

196849 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Standard nominal flow rate
  190 l/min
• Reset method
  Pneumatic spring
• Certification
  c UL us - Recognized (OL)
• Flow direction
  Non-reversible
• Pilot pressure
  2.5 bar ... 8 bar
• Max. positive test pulse with 0 signal
  1200 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Electrical connection
  2-pin
• Pneumatic connection 2
  QS-4
• Housing material
  Die-cast aluminum
• Maritime classification
  See certificate
• Width
  10 mm
• Manual override
  Detenting via accessory Non-detenting
• Valve position ID
  Label holder
• Max. negative test pulse on 1 signal
  900 µs
• Permissible voltage fluctuations
  -15 % / +10 %
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Type of mounting
  With through-hole
• Pneumatic connection 3
  M7
Actuation type
Electrical
Operating pressure
-0.9 bar ... 10 bar
Nominal width
4 mm
Pilot air supply port
External
On switching time
14 ms
Duty cycle
100% in combination with holding current reduction
Temperature of medium
-5 °C ... 50 °C
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot exhaust air port 82
M3
Operating voltage
24V DC
Degree of protection
IP65 as per IEC 60529
Mounting position
Any
Symbol
00991405
Coil characteristics
24 V DC: 1.28 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot air port 12
M3
Seals material
NBR
Valve function
3/2, closed, monostable
Pneumatic working port
QS-4
Design
Piston gate valve
Type code
CPE10
Sealing principle
Soft
Type of control
Pilot-controlled
Switching time off
14 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-4
Note on materials
RoHS-compliant
