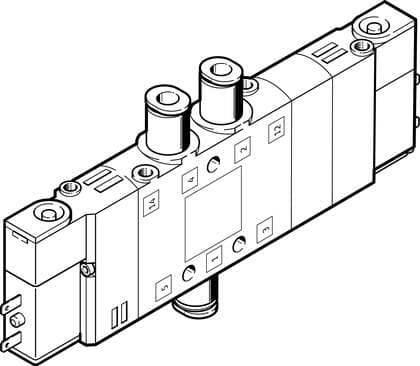

196895 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Operating pressure
  3 bar ... 8 bar
• Exhaust air function
  With flow control option
• Manual override
  Detenting via accessory Non-detenting
• Max. positive test pulse with 0 signal
  1200 µs
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Pilot exhaust air port 82
  M3
• Pneumatic connection 4
  QS-6
• Reset method
  Mechanical spring
• Operating voltage
  24V DC
• Degree of protection
  IP65 as per IEC 60529
• Pilot air supply port
  Internal
• Permissible voltage fluctuations
  -15 % / +10 %
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot air port 12
  M3
• Pneumatic connection 1
  QS-6
• Note on materials
  RoHS-compliant
• Valve function
  5/3, pressurized
• Width
  14 mm
• Standard nominal flow rate
  370 l/min
Nominal width
6 mm
Sealing principle
Soft
Flow direction
Non-reversible
Switching time off
42 ms
Coil characteristics
24 V DC: 1.28 W
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Pilot air port 14
M3
Pneumatic connection 5
G1/8
Maritime classification
See certificate
Pneumatic working port
QS-6
Type code
CPE14
Type of control
Pilot-controlled
Valve position ID
Label holder
Max. negative test pulse on 1 signal
900 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
-5 °C ... 50 °C
Type of mounting
With through-hole
Pneumatic connection 3
G1/8
Seals material
NBR
Actuation type
Electrical
Design
Piston gate valve
Certification
c UL us - Recognized (OL)
Mounting position
Any
Symbol
00991034
Duty cycle
100% in combination with holding current reduction
On switching time
20 ms
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
2-pin
Pilot exhaust air port 84
M3
Pneumatic connection 2
QS-6
Housing material
Die-cast aluminum
