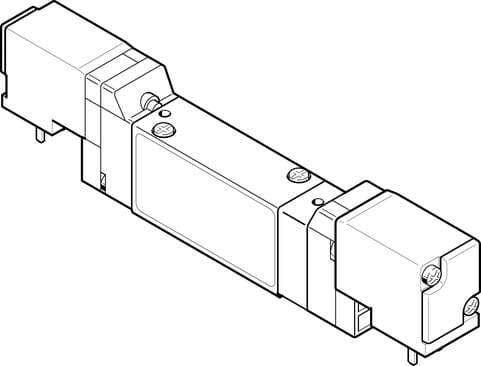

173408 Festo Directional Control Valves
Part#:173408
Alt. Part#:MEH-5/3G-5,0-I-B
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve MEH-5/3G-5,0-I-B Midi Pneumatic, with solenoid coil and manual override, without socket. Valve function: 5/3 closed, Type of actuation: electrical, Width: 17,8 mm, Standard nominal flow rate: 600 l/min, Operating pressure: 3 - 8 bar
Product Details
- Lap Overlap
- Pneumatic working port Sub-base
- Certification c UL us - Recognized (OL)
- Manual override Detenting via accessory
- Flow direction Non-reversible
- Switching time off 25 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Ambient temperature -5 °C ... 50 °C
- Pilot air port 14 Sub-base
- Width 17.8 mm
- Operating voltage 24V DC
- Degree of protection IP65
- Exhaust air function With flow control option
- Pilot air supply port Internal
- On switching time 20 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -5 °C ... 50 °C
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting On sub-base
- Note on materials RoHS-compliant
- Actuation type Electrical
- Design Piston gate valve
- Width dimension 18 mm
- Sealing principle Soft
- Symbol 00991033
- Electrical connection Connection diagram form C as per industrial standard, 9.4 mm Rectangular design
- Pilot air port 12 Sub-base
- Pneumatic connection 3 Sub-base
- Housing material Die-cast aluminum
- Valve function 5/3, closed
- Operating pressure 3 bar ... 8 bar
- Nominal width 5 mm
- Mounting position Any
- b-value 0.5
- C value 2.55 l/sbar
- Coil characteristics 24 V DC: 0.95 W
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Noise level 75 dB(A)
- Pilot exhaust air port 82/84 Sub-base
- Pneumatic connection 4 Sub-base
- Pneumatic connection 5 Sub-base
- Standard nominal flow rate 600 l/min
- Reset method Mechanical spring
- Type code MEH
- Type of control Pilot-controlled
- Pilot pressure 3 bar ... 8 bar
- Duty cycle 100%
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Storage temperature -20 °C ... 40 °C
- Product weight 150 g
- Pneumatic connection 1 Sub-base
- Pneumatic connection 2 Sub-base
- Seals material HNBR NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
