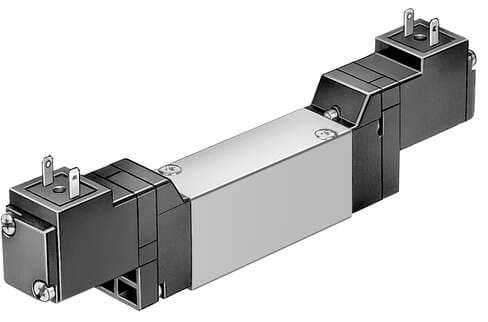

173432 Festo Directional Control Valves

Product Details

• Pilot pressure
  1.5 bar ... 8 bar
• Actuation type
  Electrical
• Design
  Piston gate valve
• Reset method
  Pneumatic spring
• Exhaust air function
  With flow control option
• Sealing principle
  Soft
• Valve function
  5/2, bistable
• Operating voltage
  24V DC
• Operating pressure
  1.5 bar ... 8 bar
• Nominal width
  5 mm
• Type code
  JMEH
• Type of control
  Pilot-controlled
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
• Product weight
  146 g
• Width
  17.8 mm
• Certification
  c UL us - Recognized (OL)
• Pilot air supply port
  Internal
• C value
  2.75 l/sbar
• Changeover time
  10 ms
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot air port 14
Sub-base
Pneumatic connection 5
Sub-base
Lap
Overlap
Standard nominal flow rate
700 l/min
Degree of protection
IP65
Mounting position
Any
Flow direction
Non-reversible
b-value
0.38
Coil characteristics
24 V DC: 1.5 W
Noise level
75 dB(A)
Type of mounting
On sub-base
Pneumatic connection 2
Sub-base
Seals material
HNBR NBR
Pneumatic working port
Sub-base
Width dimension
18 mm
Manual override
Detenting via accessory
Symbol
00991013
Duty cycle
100%
Temperature of medium
-5 °C ... 50 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 3
Sub-base
Note on materials
RoHS-compliant
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Storage temperature
-20 °C ... 40 °C
Ambient temperature
-5 °C ... 50 °C
Electrical connection
Connection diagram form C as per industrial standard, 9.4 mm Rectangular design
Pneumatic connection 1
Sub-base
Housing material
Die-cast aluminum
Pilot exhaust air port 82/84
Sub-base
Pilot air port 12
Sub-base
Pneumatic connection 4
Sub-base
