159715 Festo Directional Control Valves
Part#:159715
Alt. Part#:JMN1DH-5/2-D-3-C
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

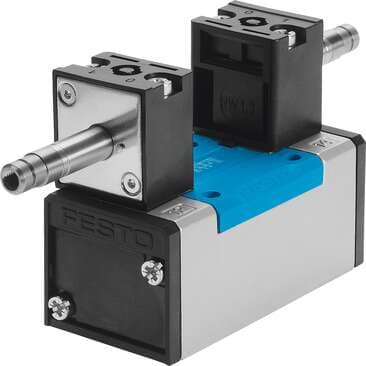

solenoid valve JMN1DH-5/2-D-3-C As per ISO 5599/1, with manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function: 5/2 bistable-dominant, Type of actuation: electrical, Width: 65 mm, Stand
Product Details
- Actuation type Electrical
- Design Piston gate valve
- Width dimension 71 mm
- ISO code 369
- Switching time changeover (dominant) 21 ms
- Temperature of medium -5 °C ... 50 °C
- Pilot exhaust air port 84 M5
- Housing material Die-cast aluminum
- Operating pressure 2 bar ... 10 bar
- Degree of protection IP65
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- Flow direction Non-reversible
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Via N1 coil, to be ordered separately
- Pneumatic connection 1 Sub-base, size 3 as per ISO 5599-1
- Valve function 5/2, bistable, dominant
- Standard nominal flow rate 4500 l/min
- Operating voltage Via solenoid coil, to be ordered separately
- Type code JMN1DH
- Mounting position Any
- Symbol 00991059
- Max. negative test pulse on 1 signal 4600 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Product weight 1090 g
- Pilot exhaust air port 82 M5
- Pneumatic connection 3 Sub-base, size 3 as per ISO 5599-1
- Pneumatic connection 4 Sub-base, size 3 as per ISO 5599-1
- Maritime classification See certificate
- Pneumatic working port Sub-base, size 3 as per ISO 5599-1 G1/2
- Certification c UL us - Recognized (OL)
- Sealing principle Soft
- Manual override Detenting via accessory Non-detenting
- Pilot air supply port Internal
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Noise level 85 dB(A)
- Type of mounting On sub-base With through-hole and screw
- Pneumatic connection 5 Sub-base, size 3 as per ISO 5599-1
- Lap Overlap
- Width 65 mm
- Nominal width 14.5 mm
- Conforms to standard ISO 5599-1
- Changeover time 24 ms
- Max. positive test pulse with 0 signal 3700 µs
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 2 Sub-base, size 3 as per ISO 5599-1
- Note on materials RoHS-compliant
- Seals material HNBR NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
