159701 Festo Directional Control Valves
Part#:159701
Alt. Part#:JMN1H-5/2-D-2-S-C
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

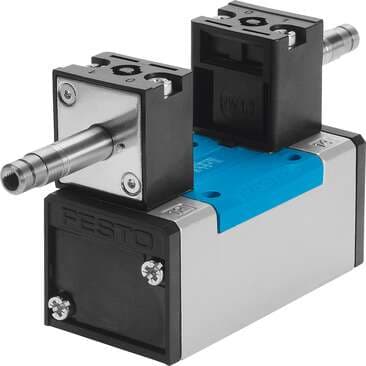

solenoid valve JMN1H-5/2-D-2-S-C As per ISO 5599/1, with manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function: 5/2 bistable, Type of actuation: electrical, Width: 54 mm, Standard nomi
Product Details
- Product weight 940 g
- Standard nominal flow rate 2300 l/min
- Width dimension 56 mm
- Sealing principle Soft
- Type of control Pilot-controlled
- Flow direction Reversible
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Noise level 85 dB(A)
- Type of mounting On sub-base With through-hole and screw
- Pneumatic connection 2 Sub-base, size 2 as per ISO 5599-1
- Seals material HNBR NBR
- Width 54 mm
- Nominal width 11.5 mm
- ISO code 269
- Symbol 00991067
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -5 °C ... 50 °C
- Pilot exhaust air port 82 M5
- Pilot air port 14 Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 2 as per ISO 5599-1
- Lap Overlap
- Operating voltage Via solenoid coil, to be ordered separately
- Mounting position Any
- Changeover time 21 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot exhaust air port 84 M5
- Pilot air port 12 Sub-base, size 2 as per ISO 5599-1
- Housing material Die-cast aluminum
- Maritime classification See certificate
- Pneumatic working port Sub-base, size 2 as per ISO 5599-1 G3/8
- Degree of protection IP65
- Exhaust air function With flow control option
- Type code JMN1H
- Manual override Detenting via accessory Non-detenting
- Pilot pressure 2 bar ... 10 bar
- Max. positive test pulse with 0 signal 3700 µs
- Temperature of medium -5 °C ... 50 °C
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 1 Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 4 Sub-base, size 2 as per ISO 5599-1
- Valve function 5/2, bistable
- Actuation type Electrical
- Operating pressure -0.9 bar ... 16 bar
- Design Piston gate valve
- Conforms to standard ISO 5599-1
- Pilot air supply port External
- Max. negative test pulse on 1 signal 4600 µs
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Via N1 coil, to be ordered separately
- Pneumatic connection 3 Sub-base, size 2 as per ISO 5599-1
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
