Part#:159714

Alt. Part#:JMN1H-5/2-D-3-C

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

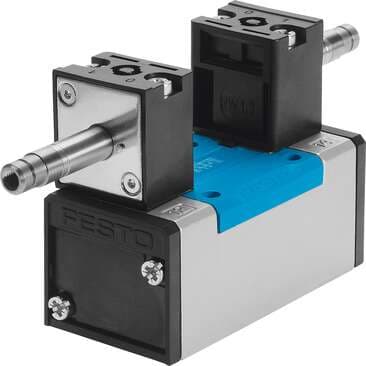

solenoid valve JMN1H-5/2-D-3-C As per ISO 5599/1, with manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function: 5/2 bistable, Type of actuation: electrical, Width: 65 mm, Standard nomina

Product Details

  • Degree of protection
    IP65
  • ISO code
    355
  • Changeover time
    21 ms
  • Actuation type
    Electrical
  • Design
    Piston gate valve
  • Maritime classification
    See certificate
  • Standard nominal flow rate
    4500 l/min
  • Operating voltage
    Via solenoid coil, to be ordered separately
  • Mounting position
    Any
  • Flow direction
    Non-reversible
  • Max. negative test pulse on 1 signal
    4600 µs
  • Ambient temperature
    -5 °C ... 50 °C
  • Pilot exhaust air port 84
    M5
  • Seals material
    HNBR NBR
  • Lap
    Overlap
  • Operating pressure
    2 bar ... 10 bar
  • Nominal width
    14.5 mm
  • Exhaust air function
    With flow control option
  • Type of control
    Pilot-controlled
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Vibration resistance
    Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
  • Temperature of medium
    -5 °C ... 50 °C
  • Pneumatic connection 2
    Sub-base, size 3 as per ISO 5599-1
  • Note on materials
    RoHS-compliant
  • Valve function
    5/2, bistable
  • Width
    65 mm
  • Certification
    c UL us - Recognized (OL)
  • Type code
    JMN1H
  • Manual override
    Detenting via accessory Non-detenting
  • Pilot air supply port
    Internal
  • Symbol
    00991005
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Noise level
    85 dB(A)
  • Pilot exhaust air port 82
    M5
  • Pneumatic connection 5
    Sub-base, size 3 as per ISO 5599-1
  • Pneumatic working port
    Sub-base, size 3 as per ISO 5599-1 G1/2
  • Width dimension
    71 mm
  • Sealing principle
    Soft
  • Conforms to standard
    ISO 5599-1
  • Max. positive test pulse with 0 signal
    3700 µs
  • Product weight
    1090 g
  • Type of mounting
    On sub-base With through-hole and screw
  • Pneumatic connection 3
    Sub-base, size 3 as per ISO 5599-1
  • Housing material
    Die-cast aluminum
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Electrical connection
    Via N1 coil, to be ordered separately
  • Pneumatic connection 1
    Sub-base, size 3 as per ISO 5599-1
  • Pneumatic connection 4
    Sub-base, size 3 as per ISO 5599-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
