159705 Festo Directional Control Valves
Part#:159705
Alt. Part#:MN1H-5/3G-D-3-C
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

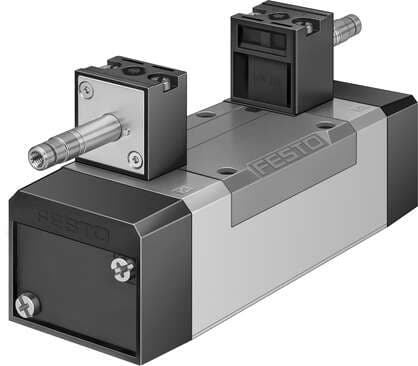

solenoid valve MN1H-5/3G-D-3-C With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function: 5/3 closed, Type of actuation: electrical, Width: 65 mm, Standard nominal flow rate: 4100 l/min, O
Product Details
- Seals material HNBR NBR
- Lap Overlap
- Standard nominal flow rate 4100 l/min
- Reset method Mechanical spring
- Nominal width 14.5 mm
- Exhaust air function With flow control option
- Conforms to standard ISO 5599-1
- On switching time 33 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -5 °C ... 50 °C
- Pilot exhaust air port 82 M5
- Pneumatic connection 5 Sub-base, size 3 as per ISO 5599-1
- Maritime classification See certificate
- Operating voltage Via solenoid coil, to be ordered separately
- Width dimension 71 mm
- Mounting position Any
- Type of control Pilot-controlled
- Switching time off 82 ms
- Temperature of medium -5 °C ... 50 °C
- Type of mounting On sub-base With through-hole and screw
- Pneumatic connection 4 Sub-base, size 3 as per ISO 5599-1
- Housing material Die-cast aluminum
- Valve function 5/3, closed
- Width 65 mm
- Design Piston gate valve
- Degree of protection IP65
- Sealing principle Soft
- Manual override Detenting via accessory Non-detenting
- Flow direction Non-reversible
- Max. negative test pulse on 1 signal 4600 µs
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Via N1 coil, to be ordered separately
- Pneumatic connection 2 Sub-base, size 3 as per ISO 5599-1
- Actuation type Electrical
- Pneumatic working port Sub-base, size 3 as per ISO 5599-1 G1/2
- Operating pressure 3 bar ... 10 bar
- Type code MN1H
- Certification c UL us - Recognized (OL)
- Pilot air supply port Internal
- Max. positive test pulse with 0 signal 3700 µs
- Noise level 85 dB(A)
- Product weight 1170 g
- Pilot exhaust air port 84 M5
- Note on materials RoHS-compliant
- ISO code 356
- Symbol 00991080
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pneumatic connection 1 Sub-base, size 3 as per ISO 5599-1
- Pneumatic connection 3 Sub-base, size 3 as per ISO 5599-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
