151673 Festo Proximity Sensors

151673 on Powermatic Associates
Festo

Part#:151673

Alt. Part#:SMEO-1-S6-C

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

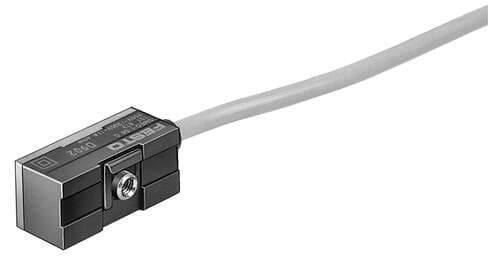

proximity sensor SMEO-1-S6-C With reed contact, without mounting kit, heat resistant version Design: Block design, Conforms to standard: DIN EN 60947-5-2, CE mark (see declaration of conformity): to EU directive low-voltage devices, Materials note: Free o

Product Details

  • Conforms to standard
    DIN EN 60947-5-2
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Ambient temperature
    -50 °C ... 120 °C
  • Design
    Block design
  • Measuring principle
    Magnetic reed
  • On time
    0.5 ms
  • Min. switching capacity AC
    40 VA
  • Reverse polarity protection
    no
  • Symbol
    00991624
  • Switching element function
    N/O contact
  • Max. switching frequency
    500 Hz
  • Max. switching capacity DC
    40 W
  • Overload protection
    Not available
  • Type code
    SMEO
  • Switching output
    Contact-based, bipolar
  • Switch-off time
    0.03 ms
  • Residual current
    0 mA
  • Operating voltage range AC
    0 V ... 250 V
  • Cable length
    2.5 m
  • Tightening torque
    2.9 Nm
  • Note on materials
    Free of copper and PTFE
  • Reproducibility of switching value
    +/- 0.1 mm
  • Max. output current
    1000 mA
  • Short-circuit protection
    no
  • Type of mounting
    With accessories
  • Ambient temperature with flexible cable installation
    -40 °C ... 120 °C
  • Voltage drop
    ≤ 0 V
  • DC operating voltage range
    0 V ... 200 V
  • Material of cable sheath
    TPE-S
  • Housing material
    Epoxy resin Die-cast zinc
  • Contamination level
    3
  • Electrical connection
    2-wire Cable
  • Product weight
    100 g
  • Surge resistance
    4 kV
  • Connection outlet orientation
    Longitudinal
  • Degree of protection
    IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

151673 Related Documents

151673 DataSheet.pdf
