151672 Festo Proximity Sensors

151672 on Powermatic Associates
Festo

Part#:151672

Alt. Part#:SMEO-1-LED-24-K5-B

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

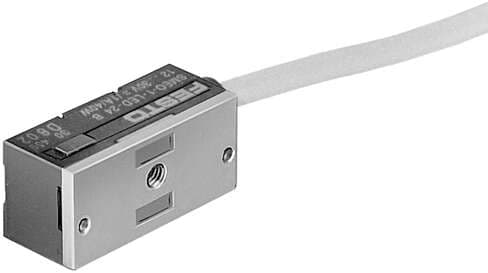

proximity sensor SMEO-1-LED-24-K5-B With reed contact and light-emitting diode, without mounting kit. Design: Block design, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE,

Product Details

  • Certification
    RCM compliance mark
  • Ambient temperature
    -20 °C ... 70 °C
  • Operating voltage range AC
    12 V ... 27 V
  • Material of cable sheath
    TPE-U(PUR)
  • Switching status indication
    LED yellow
  • Type code
    SMEO
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • On time
    ≤ 0.5 ms
  • Reverse polarity protection
    no
  • DC operating voltage range
    12 V ... 27 V
  • Housing material
    Die-cast zinc
  • Switching output
    Contact-based, bipolar
  • Max. output current
    1000 mA
  • Short-circuit protection
    no
  • Connection outlet orientation
    Longitudinal
  • Type of mounting
    With accessories
  • Ambient temperature with flexible cable installation
    -5 °C ... 70 °C
  • Symbol
    00991145
  • Measuring principle
    Magnetic reed
  • Reproducibility of switching value
    +/- 0.1 mm
  • Max. switching capacity DC
    27 W
  • Electrical connection
    3-wire Cable
  • Product weight
    130 g
  • Design
    Block design
  • Note on materials
    Free of copper and PTFE
  • Switching element function
    N/O contact
  • Min. switching capacity AC
    27 VA
  • Overload protection
    Not available
  • Cable length
    5 m
  • Mounting position
    Any
  • Degree of protection
    IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

151672 Related Documents

151672 DataSheet.pdf
