VS8APFF30BQ3

Banner

Product Lifecycle: Active

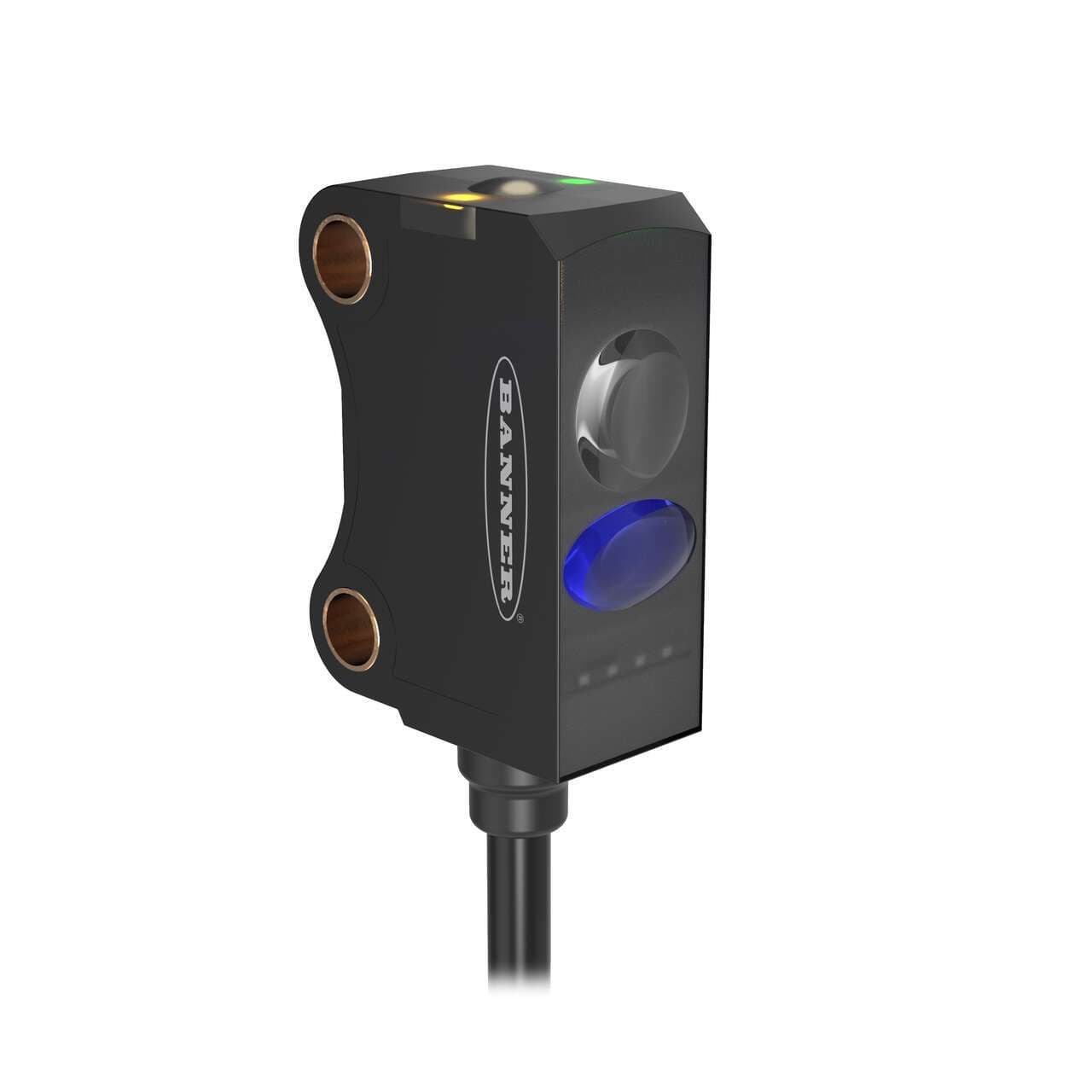

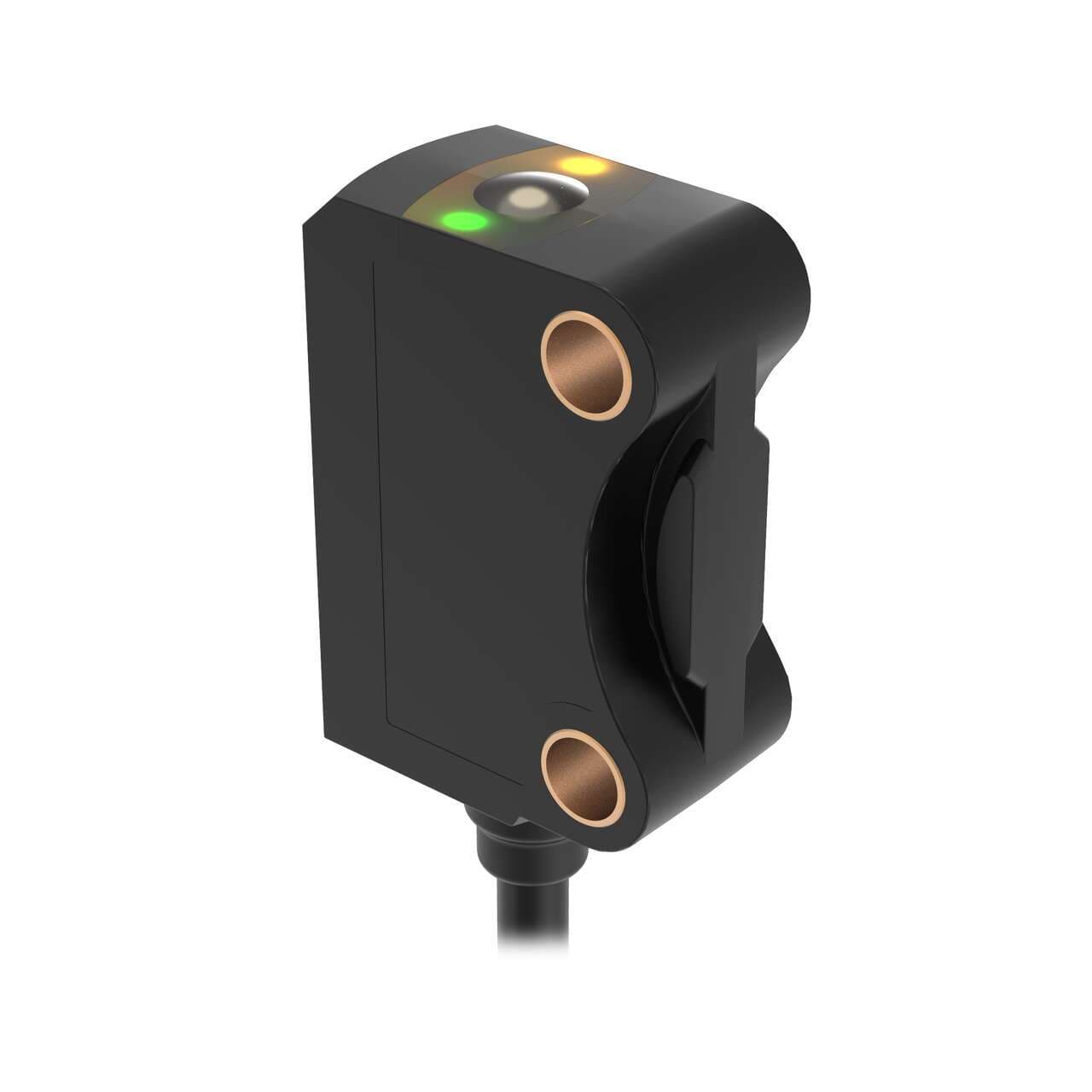

Banner Engineering VS8APFF30BQ3 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable and offers a degree of protection rated at IP67, making it suitable for operation in environments with ambient air temperatures ranging from -20 to +60 °C. This sensor operates in a Light-ON mode and is equipped with a single digital output (PNP transistor). It boasts a rapid response time of 0.5ms / 0.0005 s and is connected via a pre-wired 7.5" / 200mm pigtail that terminates with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits visible blue light with a wavelength of 450 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It incorporates a background suppression system and has a sensing distance of 2 to 30mm. This sensor is part of the VS8 series.

VS8APFF30BQ3

Banner Engineering VS8APFF30BQ3 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable and offers a degree of protection rated at IP67, making it suitable for operation in environments with ambient air temperatures ranging from -20 to +60 °C. This sensor operates in a Light-ON mode and is equipped with a single digital output (PNP transistor). It boasts a rapid response time of 0.5ms / 0.0005 s and is connected via a pre-wired 7.5" / 200mm pigtail that terminates with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits visible blue light with a wavelength of 450 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). It incorporates a background suppression system and has a sensing distance of 2 to 30mm. This sensor is part of the VS8 series.

VS8 Background Suppression Sensor -- Datasheet.pdf

Product details

VS8 Background Suppression Sensor -- Datasheet.pdf

DeviceNetNo
IO LinkNo
Feature: Chemical ResistantNo
Feature: AudibleNo
Feature: Hazardous AreaNo
Feature: EncapsulatedNo

AdjustmentsN/A

NEMA RatingN/A

Lens MaterialPMMA

Feature: Timing (Hold/Delay)No

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

Barrel Diameter (mm)N/A

IP RatingIP67

Number of Pins3

Repeatability (µs)N/A

Delay at Power-up (ms)300

Special Feature: Water DetectionNo

Sensing Beam Wavelength450

Special Feature: Intrinsically SafeNo

Output response time (ms)0.5

Special Feature: Remote TeachNo

Max Op. Temp. (°C)60

OperationLight Operate

Quick Disconnect TypeM8 (Pico)

Min Op. Temp. (°C)-20

ConnectionPigtail QD

Power Supply/Supply Voltage10-30 V dc

Max Sensing Distance (mm)30

OutputsPNP

Input/OutputDiscrete

Small Visible SpotLED

Primary Housing MaterialPUR

Housing StyleRectangular

Sensing Mode (Detailed)Background Suppression (Fixed)

Sensing Mode (General)Proximity

PowerDC

Sensing BeamVisible Blue LED

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

FunctionsFixed-field photo-electric sensor green LED (power ON) yellow LED (output state)

Sub-range nameVS8 series

Sensing distance2...30mm

Operating modeLight-ON

Ambient air temperature for operation-20...+60 °C

Main functionSensor (Photo-electric)

Designbackground suppression system

Connection typePre-wired with 7.5" / 200mm pigtail terminated with 3-pin Pico-style M8 connector

Materialthermoplastic housing PMMA lns. PUR (cable)

Primary brandBanner Engineering

Light ColorVisible blue

Degree of protectionIP67

Compliant with standard(s)cULus CE

Wavelength450 nm

Response time0.5ms / 0.0005 s

ShapeRectangular

Digital outputs1 x digital output (PNP transistor)

Order code / Manufacturer SKU803490
