VS8APFF30B

Banner

Product Lifecycle: Active

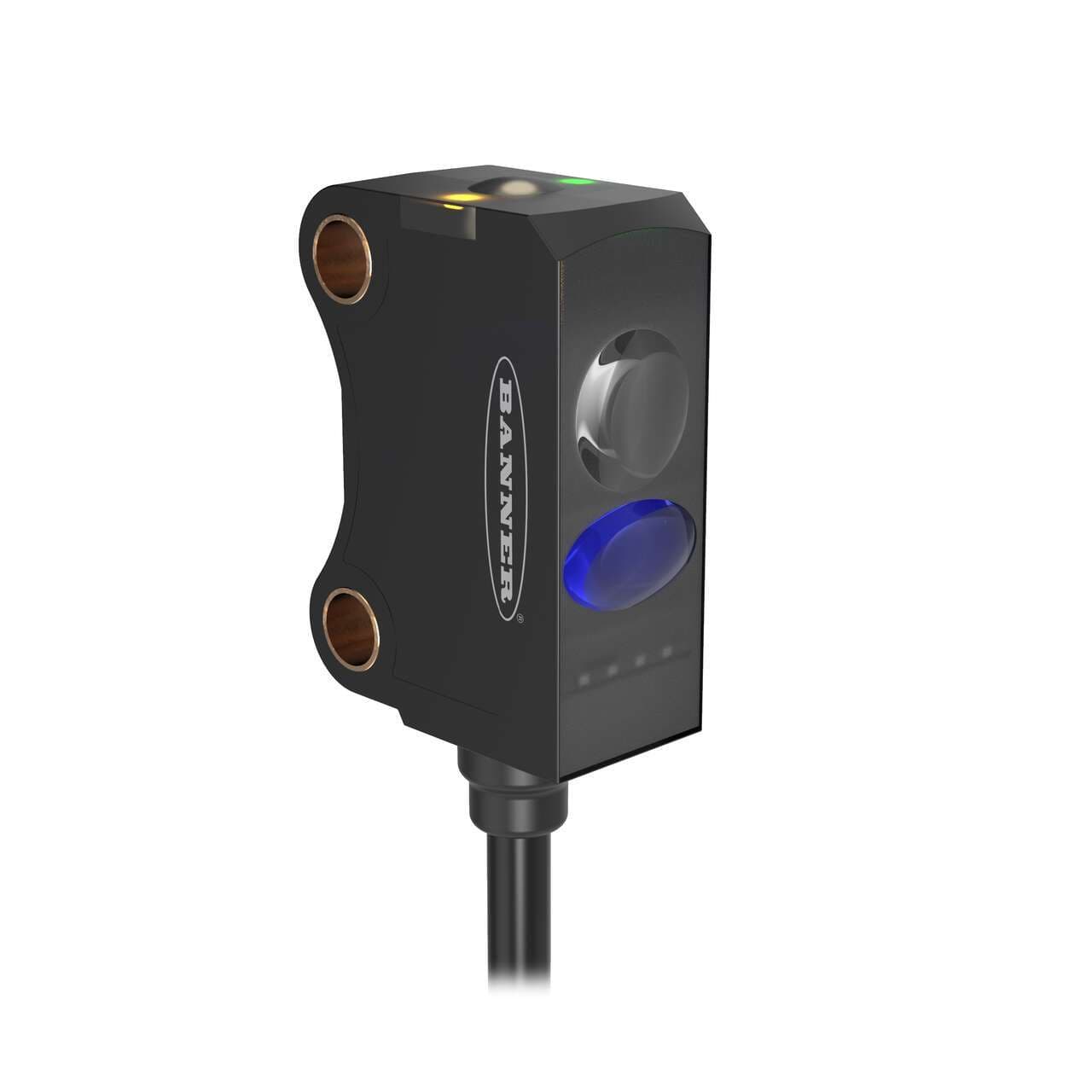

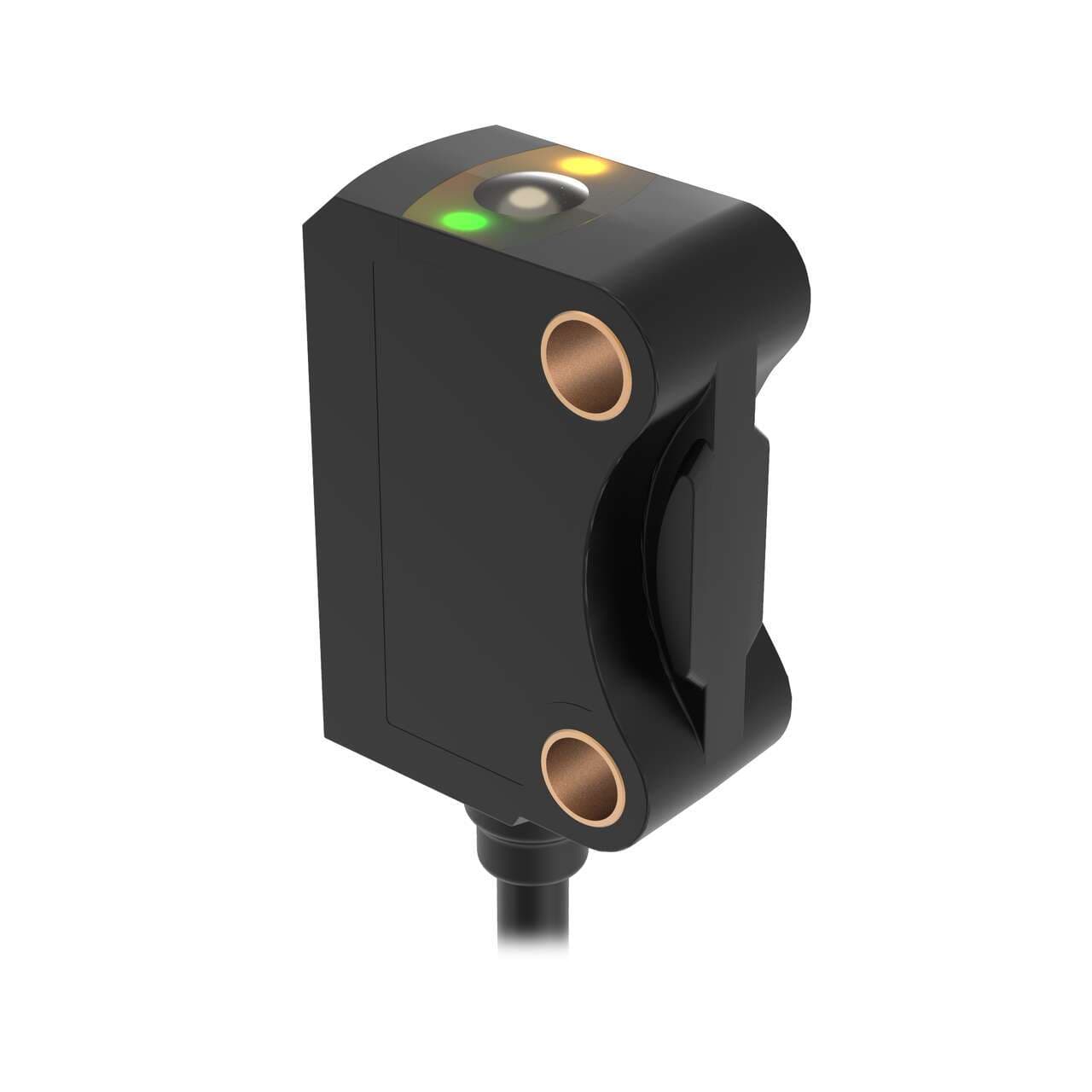

Banner Engineering VS8APFF30B is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity. This sensor operates within an ambient air temperature range of -20 to +60°C and has a degree of protection rated at IP67, making it suitable for various environmental conditions. It operates in Light-ON mode and includes one digital output (PNP transistor) with a rapid response time of 0.5ms. The sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. Its rectangular shape and visible blue light, with a wavelength of 450 nm, are designed for precise detection within a sensing distance of 2 to 30mm. The VS8APFF30B operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and incorporates a background suppression system to enhance its sensing capabilities. This sensor is part of the VS8 series.

VS8APFF30B

Banner Engineering VS8APFF30B is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polymethyl methacrylate (PMMA) lens. It features a polyurethane (PUR) cable for connectivity. This sensor operates within an ambient air temperature range of -20 to +60°C and has a degree of protection rated at IP67, making it suitable for various environmental conditions. It operates in Light-ON mode and includes one digital output (PNP transistor) with a rapid response time of 0.5ms. The sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. Its rectangular shape and visible blue light, with a wavelength of 450 nm, are designed for precise detection within a sensing distance of 2 to 30mm. The VS8APFF30B operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and incorporates a background suppression system to enhance its sensing capabilities. This sensor is part of the VS8 series.

VS8 Background Suppression Sensor -- Datasheet.pdf

Product details

VS8 Background Suppression Sensor -- Datasheet.pdf

Quick Disconnect TypeNo QD
Min Op. Temp. (°C)-20
Power Supply/Supply Voltage10-30 V dc
Sensing BeamVisible Blue LED
Feature: Hazardous AreaNo
Feature: EncapsulatedNo

Opposed Mode Emitter/ReceiverN/A

Feature: Timing (Hold/Delay)No

AdjustmentsN/A

Special Feature: Water DetectionNo

Lens MaterialPMMA

IndicatorLEDs

NEMA RatingN/A

IP RatingIP67

Special Feature: Remote TeachNo

Delay at Power-up (ms)300

Number of Pins4

Repeatability (µs)N/A

Sensing Beam Wavelength450

IO LinkNo

DeviceNetNo

Feature: Chemical ResistantNo

Feature: AudibleNo

Barrel Diameter (mm)N/A

Special Feature: Intrinsically SafeNo

Output response time (ms)0.5

Max Op. Temp. (°C)60

OperationLight Operate

PowerDC

Sensing Mode (Detailed)Background Suppression (Fixed)

ConnectionCable

OutputsPNP

Max Sensing Distance (mm)30

Housing StyleRectangular

Primary Housing MaterialPUR

Small Visible SpotLED

Sensing Mode (General)Proximity

Input/OutputDiscrete

Cable Length (m)2

Sub-range nameVS8 series

Light ColorVisible blue

ShapeRectangular

Main functionSensor (Photo-electric)

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Designbackground suppression system

Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Compliant with standard(s)cULus CE

Sensing distance2...30mm

Digital outputs1 x digital output (PNP transistor)

Ambient air temperature for operation-20...+60 °C

Primary brandBanner Engineering

FunctionsFixed-field photo-electric sensor green LED (power ON) yellow LED (output state)

Operating modeLight-ON

Materialthermoplastic housing PMMA lns. PUR (cable)

Wavelength450 nm

Response time0.5ms / 0.0005 s

Degree of protectionIP67

Order code / Manufacturer SKU803488
