DX80DR9M-H5 Banner Network Gateways

Name: DX80DR9M-H5
Brand: Banner
Price: 699 USD
Availability: BackOrder

Part#:DX80DR9M-H5

Manufacturer:Banner

Category:Network Gateways

Alt. Part#:14170

Product Lifecycle:Active

Get a quick Quote!

MultiHop 900 MHz 1 W IP67; FlexPower External Antenna RS485; Inputs: 4 Discrete 4 Analog; Outputs: 2 Discrete

About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80DR9M-H5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
145.14944 g
Country Of Origin
US
Wireless
Yes
RS-485
Yes
RS-232
No
1-wire Serial Interface
No
Modbus/TCP
No
Wireless Radio Frequency
900 MHz
PROFINET
No
Modbus RTU
Yes
Feature: Hazardous Area
No
Tree Topology
Yes
EtherNet/IP
No
Star Topology
Yes
Point-to-Point Topology
Yes
Relative Humidity
95%
Point-to-Multipoint Topology
Yes
Min Operating Temperature ( °C)
-20
Ships With Battery
No
Max Operating Temperature ( °C)
80

Min Temp Operating Conditions

-20

LCD Display

Yes

Environmental Rating (NEMA)

NEMA 6

Max Temp Operating Conditions

Power Supply

10-30 V dc or 3.6-5.5 V dc low power option

Environmental Rating (IP)

IP67

Discrete Outputs

Yes

Output Details

2 NMOS Discrete

Device Type

Multihop Data Radio

Input Details

4 Sinking Discrete, 4 0-20 mA Analog

Discrete Inputs

Yes

Input/Output

Analog & Discrete

Analog Inputs

Yes

Housing Style

Enclosed Terminals

Power

Flex Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DX80DR9M-H5 Description

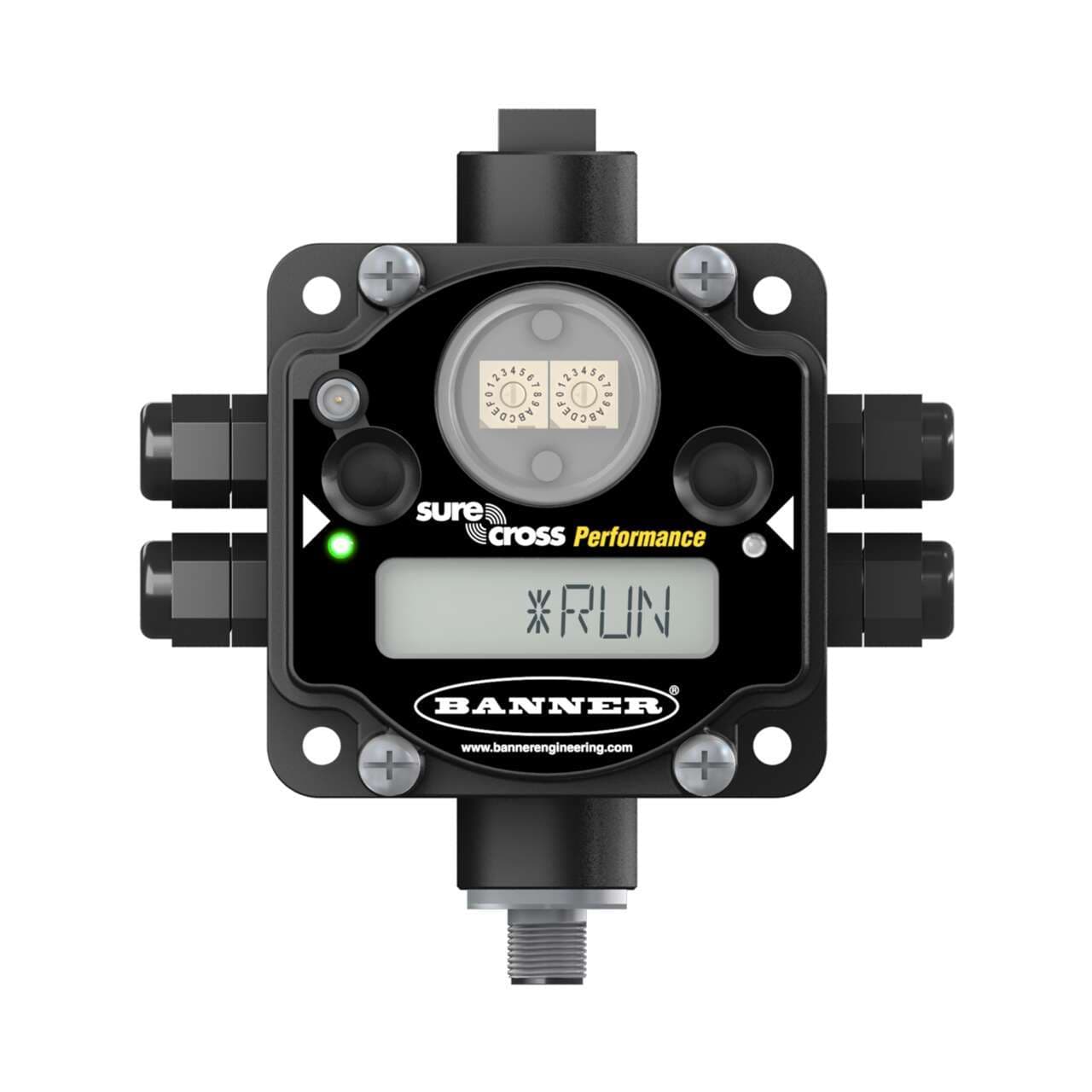

Banner Engineering DX80DR9M-H5 is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 2 digital outputs (30Vdc; NMOS; 1A), 4 analog inputs (0-20mA), and 4 digital inputs (30Vdc 3mA; NPN). The DX80DR9M-H5 utilizes MultiHop flexpower data radio technology within the MultiHop Modbus IO data radios sub-range and includes design elements such as 2 buttons, 2 bi-color LEDs, and employs FHSS (Frequency Hopping Spread Spectrum) technology. Connection options include a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses, a gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.), supports RS-485 Modbus RTU communication protocol, operates on a 900MHz ISM band with 1W power, and can achieve a maximum transmission distance of 9.6km at nominal emission power.
