TM18VP6RQ5
Banner
Product Lifecycle: Active

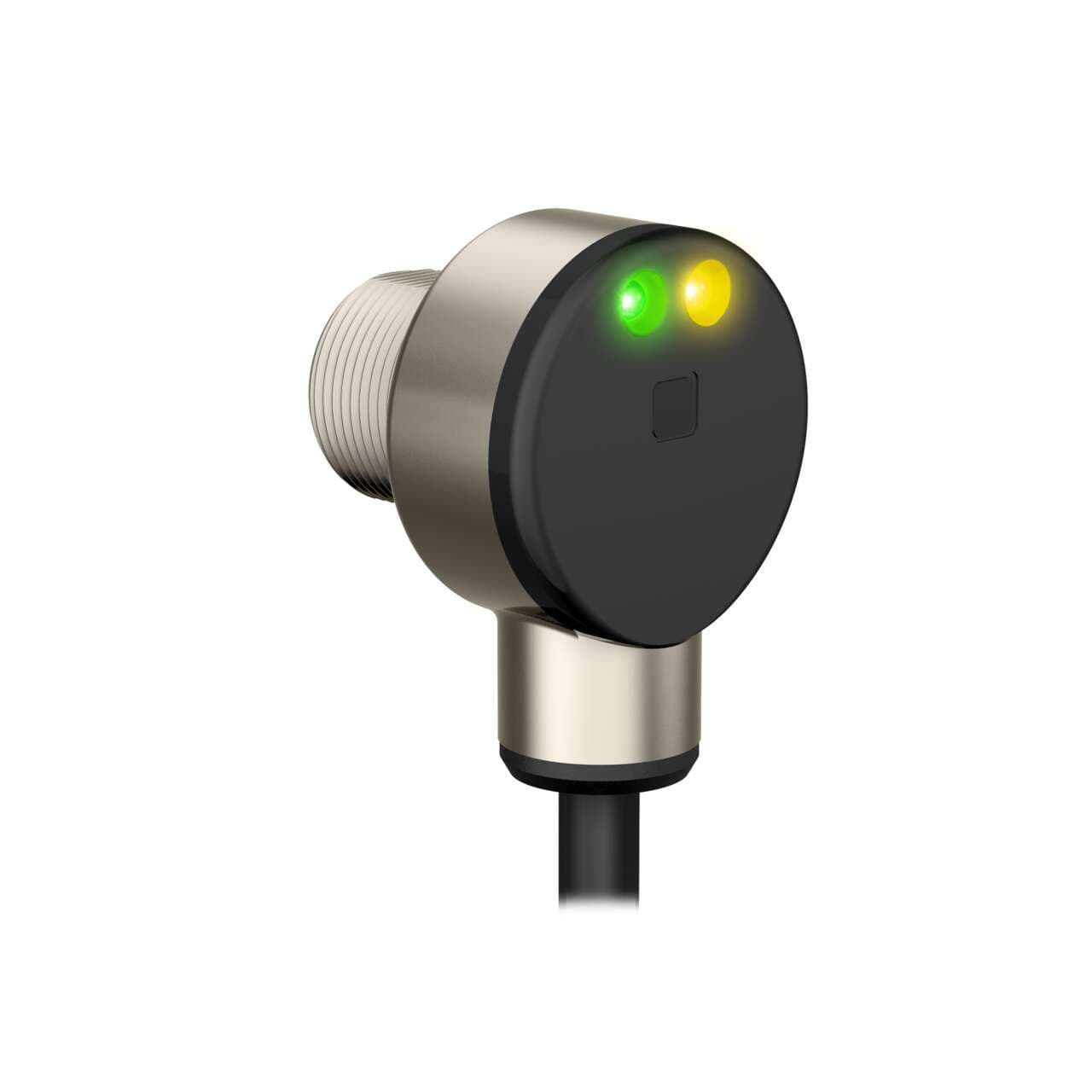

Banner Engineering TM18VP6RQ5 is a photo-electric sensor designed for heavy-duty applications, part of the TM18 series. This sensor operates as a receiver in a through-beam system, housed in a nickel-plated die-cast zinc with a polycarbonate lens. It features a pre-wired 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector. The sensor is designed for a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It offers a threaded mount for installation, capable of operating within an ambient air temperature range of -40 to +70 degrees Celsius. The TM18VP6RQ5 is equipped with an IP67, IP69K, and NEMA 6 rated protection for durability in various environments. Its M18 cylindrical threaded/barrel shape facilitates easy integration, and it features a single digital output (PNP transistor) with a sensing distance of up to 20 meters. The sensor provides a visible red light for operation, with a quick response time of 1.5ms (0.0015 seconds), and supports both Light-ON and Dark-ON operating modes. The thread size for mounting is M18.

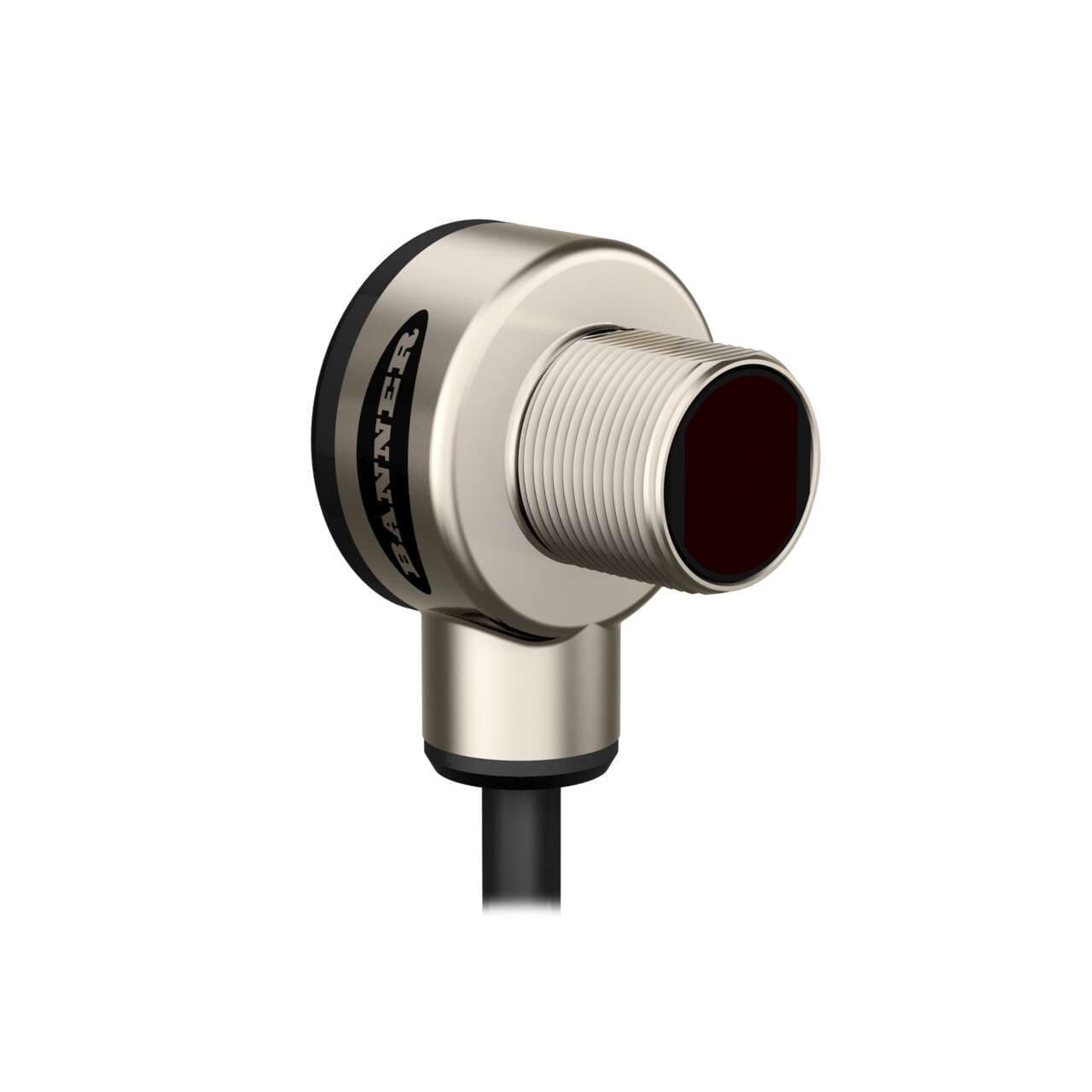

![TM18VP6RQ5](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fc3938958-2006-44d3-918e-4e3afa0a4210.jpeg&w=3840&q=75)
Banner Engineering TM18VP6RQ5 is a photo-electric sensor designed for heavy-duty applications, part of the TM18 series. This sensor operates as a receiver in a through-beam system, housed in a nickel-plated die-cast zinc with a polycarbonate lens. It features a pre-wired 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector. The sensor is designed for a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It offers a threaded mount for installation, capable of operating within an ambient air temperature range of -40 to +70 degrees Celsius. The TM18VP6RQ5 is equipped with an IP67, IP69K, and NEMA 6 rated protection for durability in various environments. Its M18 cylindrical threaded/barrel shape facilitates easy integration, and it features a single digital output (PNP transistor) with a sensing distance of up to 20 meters. The sensor provides a visible red light for operation, with a quick response time of 1.5ms (0.0015 seconds), and supports both Light-ON and Dark-ON operating modes. The thread size for mounting is M18.
- IO LinkNo
- DeviceNetNo
- Feature: Chemical ResistantNo
- Feature: AudibleNo
- Feature: EncapsulatedYes
- Feature: Hazardous AreaNo
- Feature: Timing (Hold/Delay)No
- Feature: Washdown RatedYes
- Opposed Mode Emitter/ReceiverReceiver
- IndicatorLEDs
- Barrel Diameter (mm)18
- AdjustmentsN/A
- Lens MaterialPolycarbonate
- Max Op. Relative Humidity [%]90% @ 50°C
- IP RatingIP67, IP69
- Repeatability (µs)190
- NEMA RatingNEMA 6
- Number of Pins4
- Special Feature: Water DetectionNo
- Delay at Power-up (ms)100
- Min Op. Temp. (°C)-40
- Output response time (ms)1.5 ON/0.75 OFF
- Special Feature: Remote TeachNo
- OperationLight/Dark Operate
- Quick Disconnect TypeM12 (Euro)
- ConnectionPigtail QD
- Special Feature: Intrinsically SafeNo
- Max Op. Temp. (°C)70
- Power Supply/Supply Voltage10-30 V dc
- Max Sensing Distance (mm)20000
- OutputsPNP
- Primary Housing MaterialZinc Die-Cast with Nickel-Plating
- Input/OutputDiscrete
- Housing StyleBarrel
- Sensing Mode (Detailed)Receiver
- Sensing Mode (General)Opposed
- PowerDC
- Sensing BeamVisible Red LED
