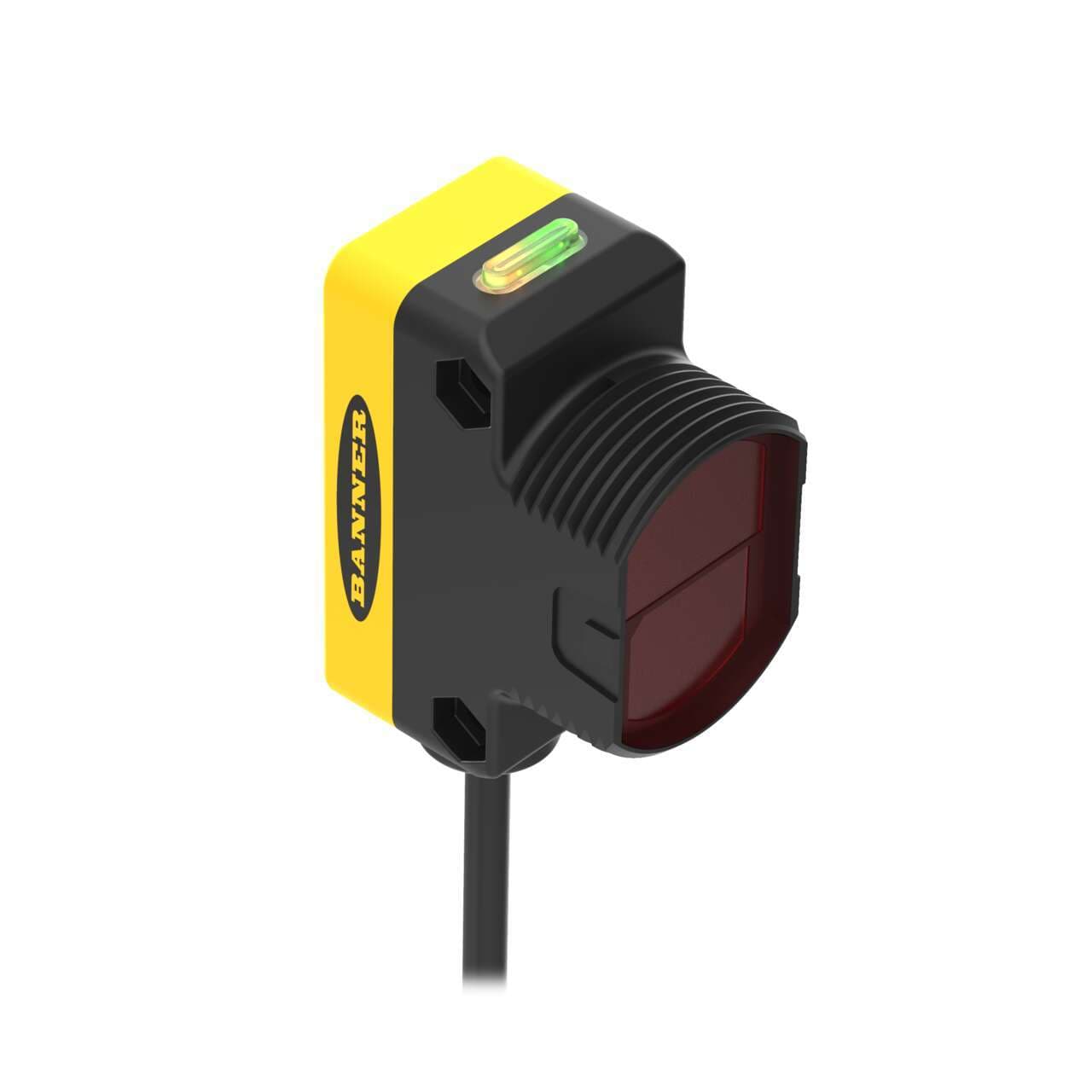

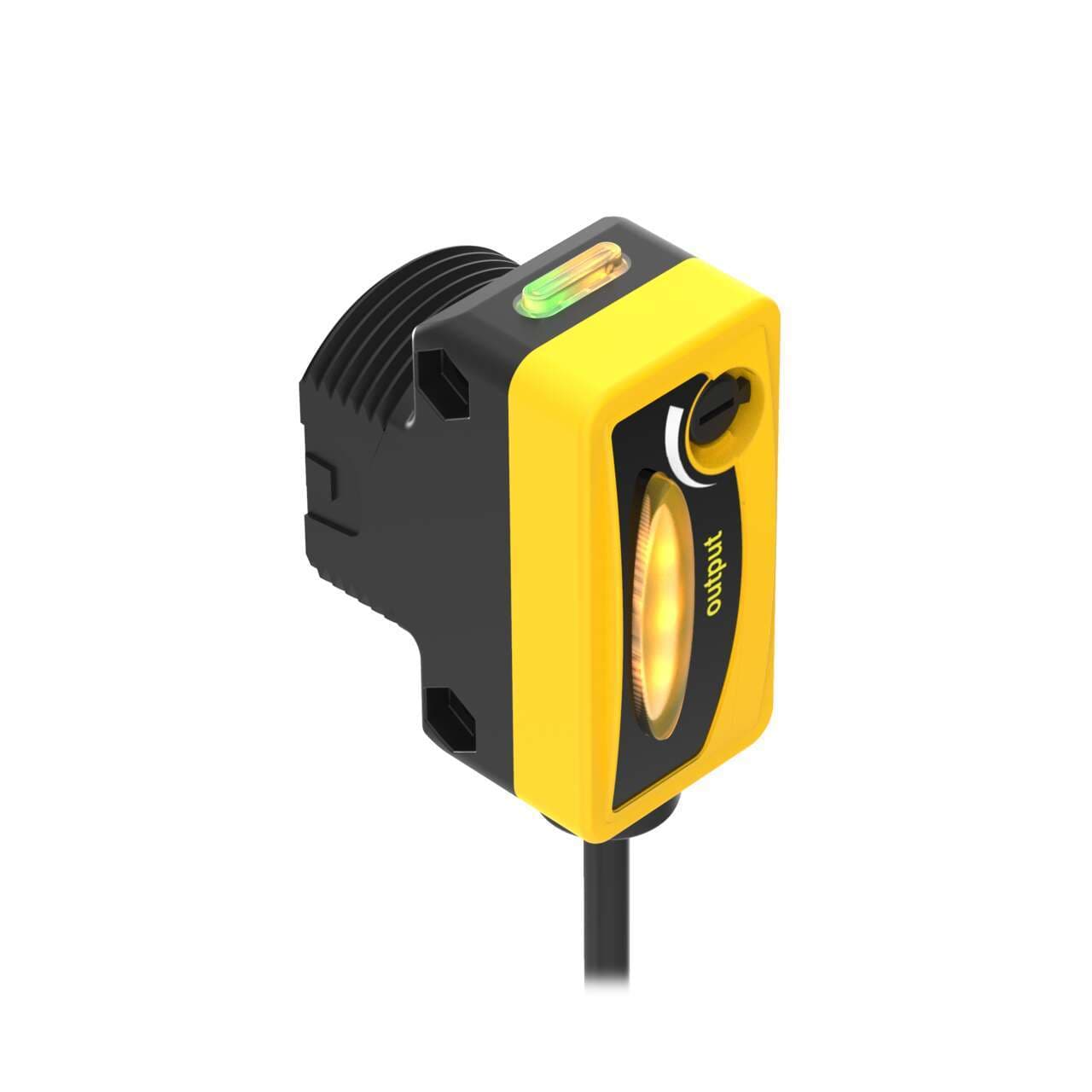

QS30LVQPMA

Banner

Product Lifecycle: Active

Banner Engineering QS30LVQPMA is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. This sensor is equipped for M30 threaded mount installation and operates within an ambient air temperature range of -20 to +70°C. It comes pre-wired with a 6-inch (150mm) PUR cable, terminating in a 5-pin Euro-style M12 connector, ensuring a secure and straightforward connection. Part of the QS30 DC voltage series, it offers a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens and a polyurethane (PUR) cable sheath, providing a degree of protection rated at IP67 NEMA 6 against dust and water ingress. It boasts a sensing distance of up to 12 meters and utilizes visible red light for detection. The QS30LVQPMA supports both Light-ON and Dark-ON operating modes and includes a single digital output (PNP/NPN transistor) with a rapid response time of 2ms (0.002 seconds).

QS30LVQPMA

Banner Engineering QS30LVQPMA is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. This sensor is equipped for M30 threaded mount installation and operates within an ambient air temperature range of -20 to +70°C. It comes pre-wired with a 6-inch (150mm) PUR cable, terminating in a 5-pin Euro-style M12 connector, ensuring a secure and straightforward connection. Part of the QS30 DC voltage series, it offers a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens and a polyurethane (PUR) cable sheath, providing a degree of protection rated at IP67 NEMA 6 against dust and water ingress. It boasts a sensing distance of up to 12 meters and utilizes visible red light for detection. The QS30LVQPMA supports both Light-ON and Dark-ON operating modes and includes a single digital output (PNP/NPN transistor) with a rapid response time of 2ms (0.002 seconds).

QS30LP/LV CABLE.pdf

WORLD-BEAM QS30 Standard Series, DC Models -- Datasheet.pdf

QS30LP/LV CABLE.stp

Product details

QS30LP/LV CABLE.pdf

WORLD-BEAM QS30 Standard Series, DC Models -- Datasheet.pdf

QS30LP/LV CABLE.stp

IO LinkNo
DeviceNetNo
Feature: Chemical ResistantNo
Feature: AudibleNo
Feature: Hazardous AreaNo
Feature: EncapsulatedNo

Feature: Timing (Hold/Delay)No

Opposed Mode Emitter/ReceiverN/A

Barrel Diameter (mm)30

AdjustmentsPotentiometer

IndicatorLEDs

Lens MaterialAcrylic

Max Op. Relative Humidity [%]95% @ 55°C

NEMA RatingNEMA 6

IP RatingIP67

Number of Pins5

Repeatability (µs)500

Delay at Power-up (ms)100

Sensing Beam Wavelength630

Special Feature: Remote TeachNo

Special Feature: Water DetectionNo

Special Feature: Intrinsically SafeNo

Output response time (ms)2

Max Op. Temp. (°C)70

OperationLight/Dark Operate

Power Supply/Supply Voltage10-30 V dc

Min Op. Temp. (°C)-20

Quick Disconnect TypeM12 (Euro)

OutputsBipolar (NPN & PNP)

ConnectionPigtail PUR QD

Max Sensing Distance (mm)12000

Input/OutputDiscrete

Housing StyleRectangular w/M30 Mount

Primary Housing MaterialThermoplastic

PowerDC

Sensing Mode (General)Retroreflective

Sensing Mode (Detailed)Non-Polarized

Sensing BeamVisible Red LED

FunctionsPhoto-electric sensor green LED (power ON) yellow LED (output state) potentiometer adjustment

Main functionSensor (Photo-electric)

Sensing distance12m

Mounting modeThreaded mount

Order code / Manufacturer SKU73232

Product series / family nameWORLD-BEAM series

Designretro-reflective mode

Light ColorVisible red

Operating modeLight-ON Dark-ON

Compliant with standard(s)cURus CE

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Thread sizeM30

Digital outputs1 x digital output (PNP/NPN transistor)

Primary brandBanner Engineering

Sub-range nameQS30 DC voltage series

ShapeRectangular

Degree of protectionIP67 NEMA 6

Response time2ms / 0.002 s

Ambient air temperature for operation-20...+70 °C

Connection typePre-wired with 6" / 150mm PUR pigtail terminated with 5-pin Euro-style M12 connector

Materialthermoplastic housing Acrylic lns. PUR pigtail
