Q60VR3LAF2000QPMA Banner Proximity Sensors

Q60VR3LAF2000QPMA on Powermatic Associates
Banner
  • Q60VR3LAF2000QPMA
  • Q60VR3LAF2000QPMA

Part#:Q60VR3LAF2000QPMA

Alt. Part#:81008

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

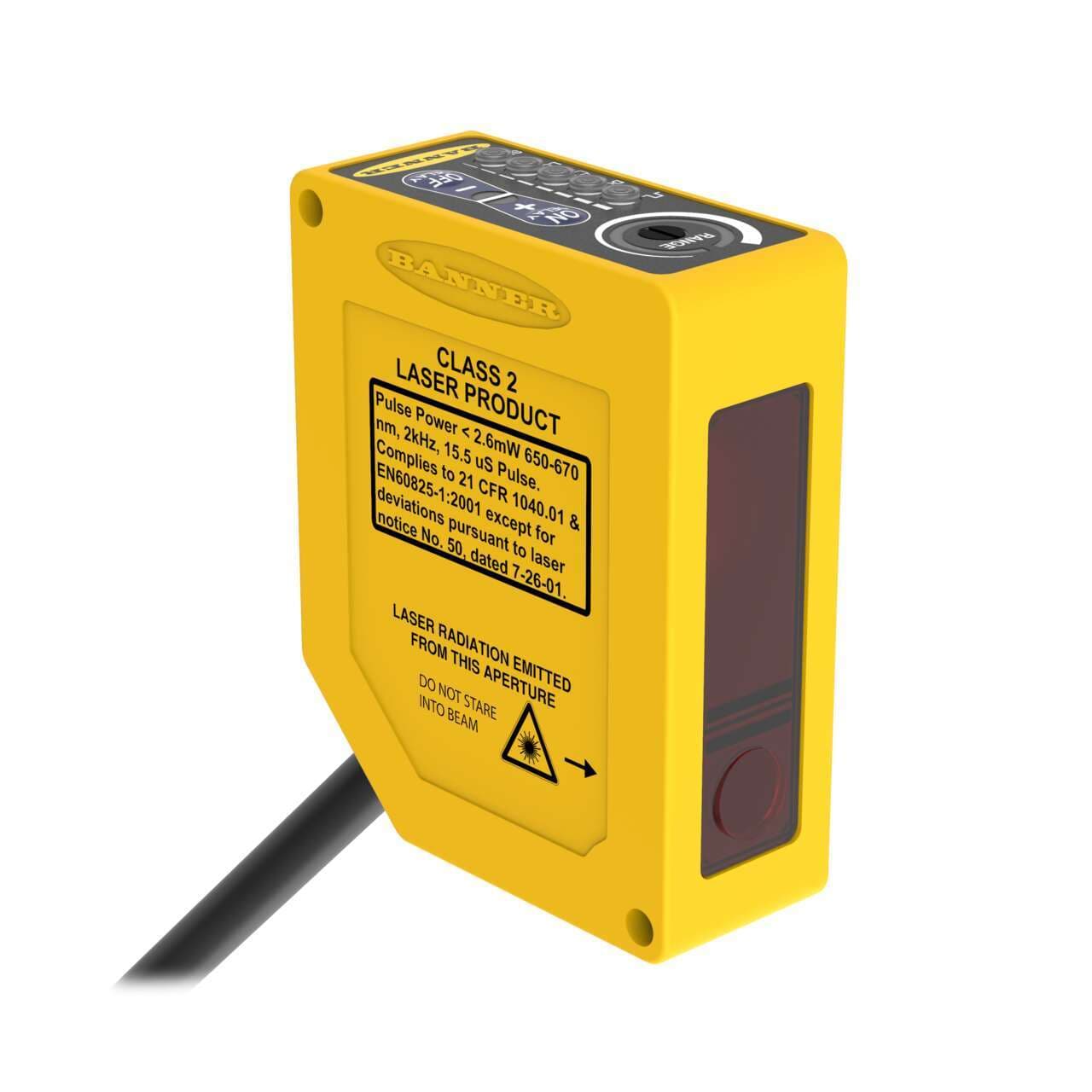

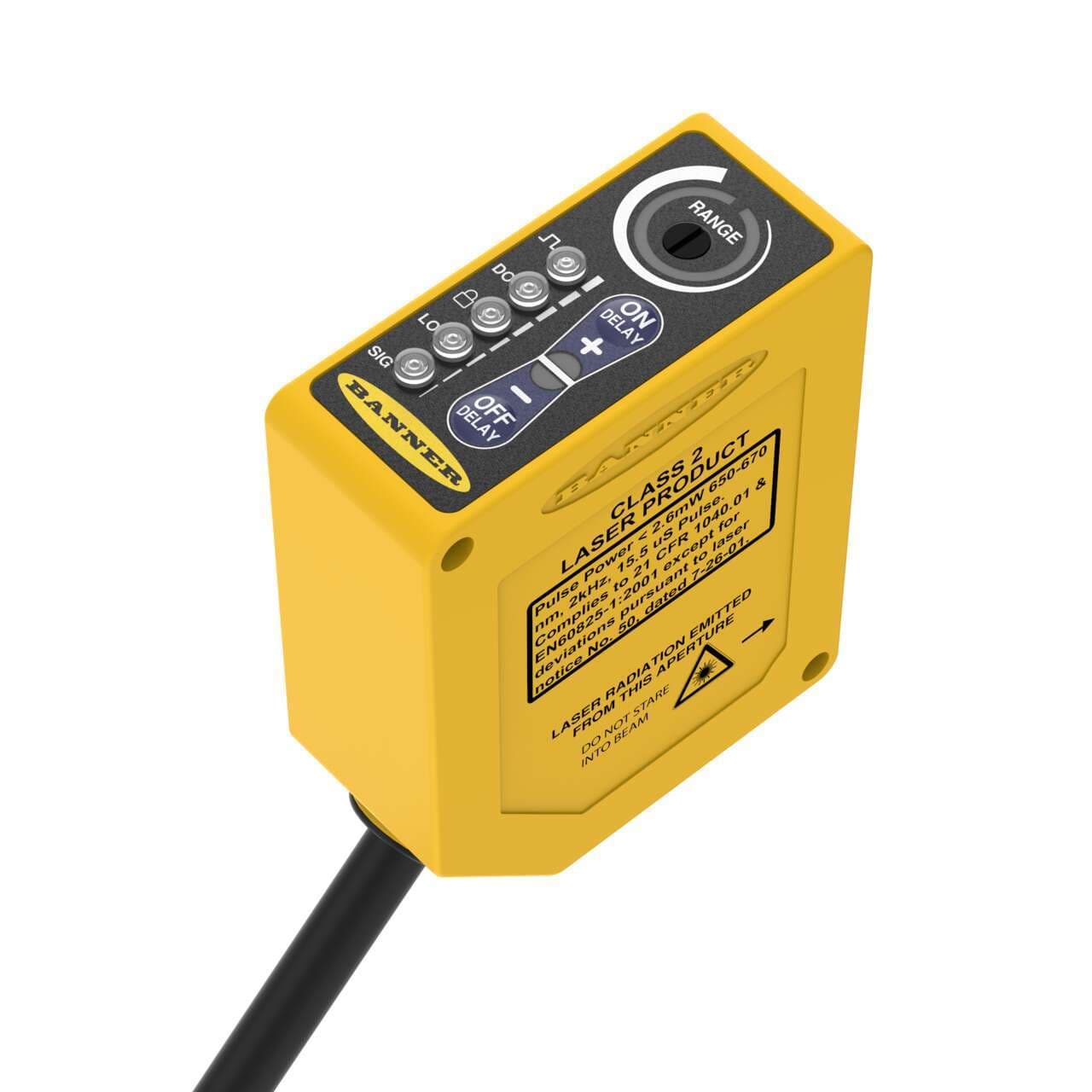

Q60 Series: Adjust-Field Laser (Cls 2) Univ Volt; Range: 200-2000 mm; Input: 12-250 V dc or 24-250 V ac; Output: Electromechanical Relay (SPST); 4-pin Micro 6 in N.O.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    US
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Barrel Diameter (mm)
    N/A
  • Lens Material
    Acrylic
  • Adjustments
    Screw Adjustment
  • Number of Pins
    4
  • NEMA Rating
    NEMA 6
  • Repeatability (µs)
    500
  • IP Rating
    IP67
  • Special Feature: Remote Teach
    No
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    1000
  • Connection
    Pigtail PUR QD
  • Special Feature: Intrinsically Safe
    No
  • Operation
    Light/Dark Operate
  • Output response time (ms)
    15
  • Max Op. Temp. (°C)
    45
  • Min Op. Temp. (°C)
    -10
  • Power Supply/Supply Voltage
    12-250 V dc or 24-250 V ac
  • Quick Disconnect Type
    1/2 in. (Micro)
  • Max Sensing Distance (mm)
    2000
  • Primary Housing Material
    Thermoplastic
  • Outputs
    SPDT e/m Relay
  • Input/Output
    E/M Relay
  • Laser Classification
    Class 2
  • Housing Style
    Rectangular
  • Small Visible Spot
    Laser
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red Laser
  • Power
    AC/DC Universal
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60VR3LAF2000QPMA on Powermatic Associates is $577.00. Order now.

About the product

Banner Engineering Q60VR3LAF2000QPMA is an adjustable-field Class 2 laser photo-electric sensor designed for precise sensing tasks. It operates within an ambient air temperature range of -10 to +45°C and features a background suppression system with screw adjustment for fine-tuning. This sensor is pre-wired with a 6-inch (150mm) PUR cable that terminates with a 4-pin 1/2" micro connector, facilitating easy installation. It supports a supply voltage range of 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it versatile for various power setups. The Q60LAF series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. Its thermoplastic housing, acrylic lens, and polyurethane cable sheath are built to last. With a net height of 75mm, width of 25mm, and depth of 60mm, this rectangular sensor is compact and easy to integrate into a wide range of applications. It offers a sensing distance of 20cm to 2m and emits a visible class 2 red laser for detection. The operating modes include Light-ON and Dark-ON, and it has a digital output (SPDT relay contact) with a response time of 15ms (0.015 seconds).
